When the car's headlights, turn signals, horn and the engine starter do not work, if there is no problem with these components after detection, you can check the relay switch.
After the relay is removed from the car, connect the adapter based on the connection of the relay.
Fuel Injector Test
When the vehicle has difficulty in starting, acceleration and fuel consumption, etc, it is necessary to check the fuel injector.
When detecting the fuel injector, if the fuel injector is driven to open or close, the ammeter shows the normal value and the fuel injector woks normally, it means that the fuel injector is normal. Otherwise, it means that the fuel injector is damaged.
Note: Use a 24v 8A power supply to test the fuel injector of the truck and the time should not exceed 120s.
Fuel Injector Cleaning
When the fuel injector is blocked, the fuel injection is not smooth. There are carbon deposits and thick sticky substance in the gap of the fuel injector. The designed fuel injection volume or atomization effect cannot be achieved, it needs to be cleaned.
1)Prepare a fuel injector cleaner pressurized can or a carburetor cleaner pressurized can(nozzle diameter of the pressurized cans: 4mm)
2)Hold the manual cleaning tool tightly with your hand, and firmly fix the fuel injector with your fingers to prevent the pressure of the cleaner can from washing away the the fuel injector.
3)Pay attention to the hazards of liquid to human body during manual cleaning, and take protective measures. Do not operate in dangerous places with open flames because the pressurized cans are extremely flammable. Choose an open place to facilitate the discharge of cleaning liquid.)
Note: Fuel injector cleaning requires the additional purchase of an extension cord and a bottle of cleaning agent.

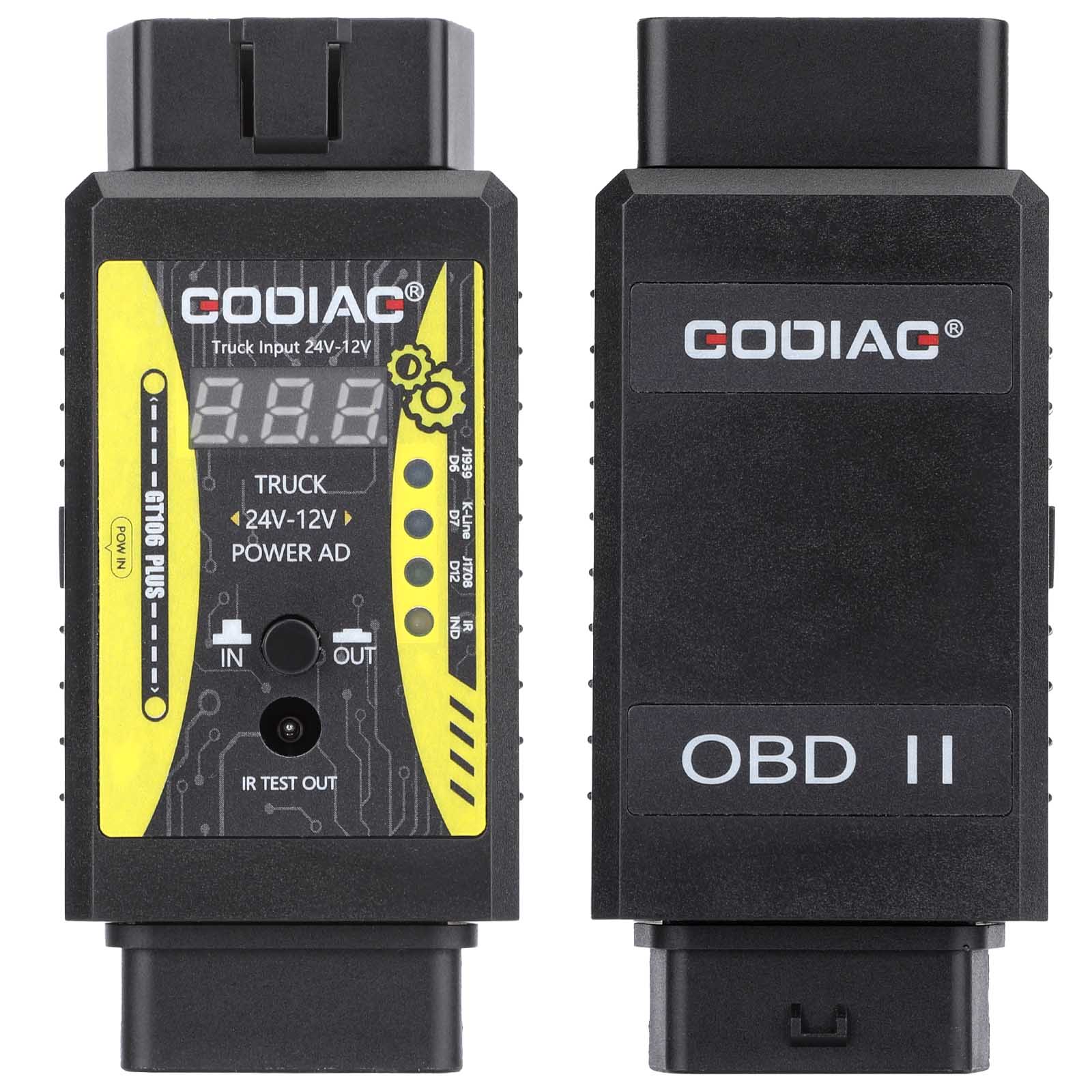

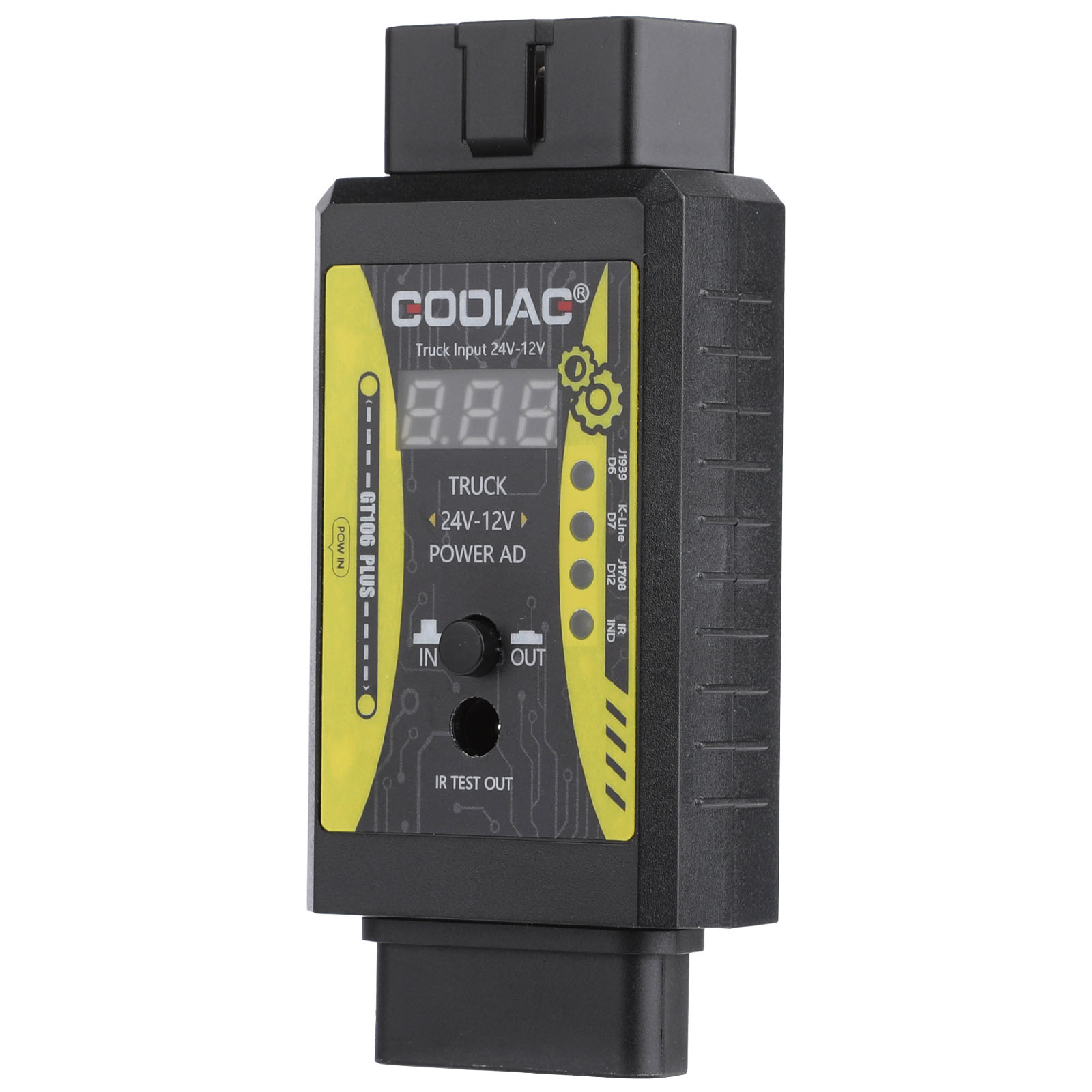

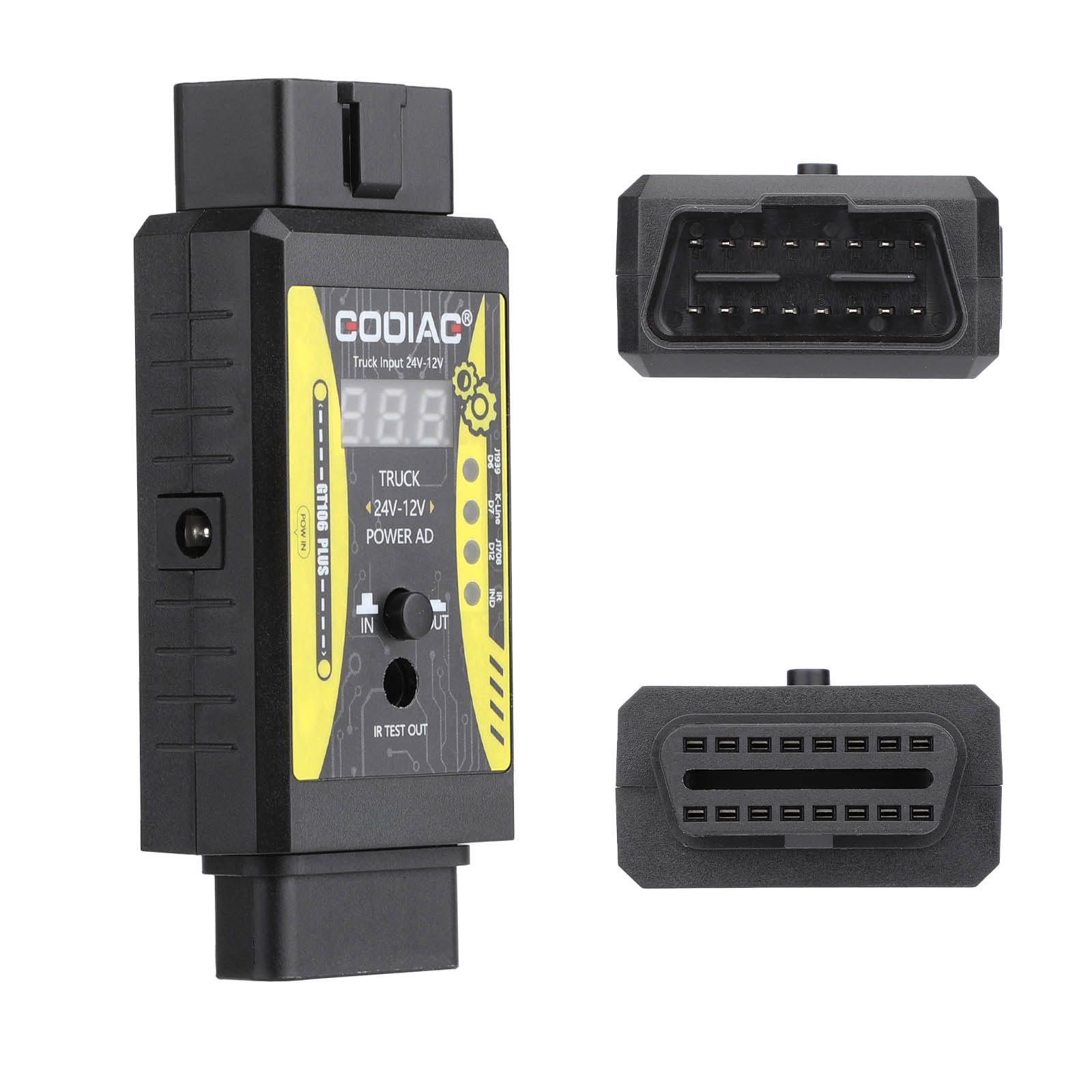

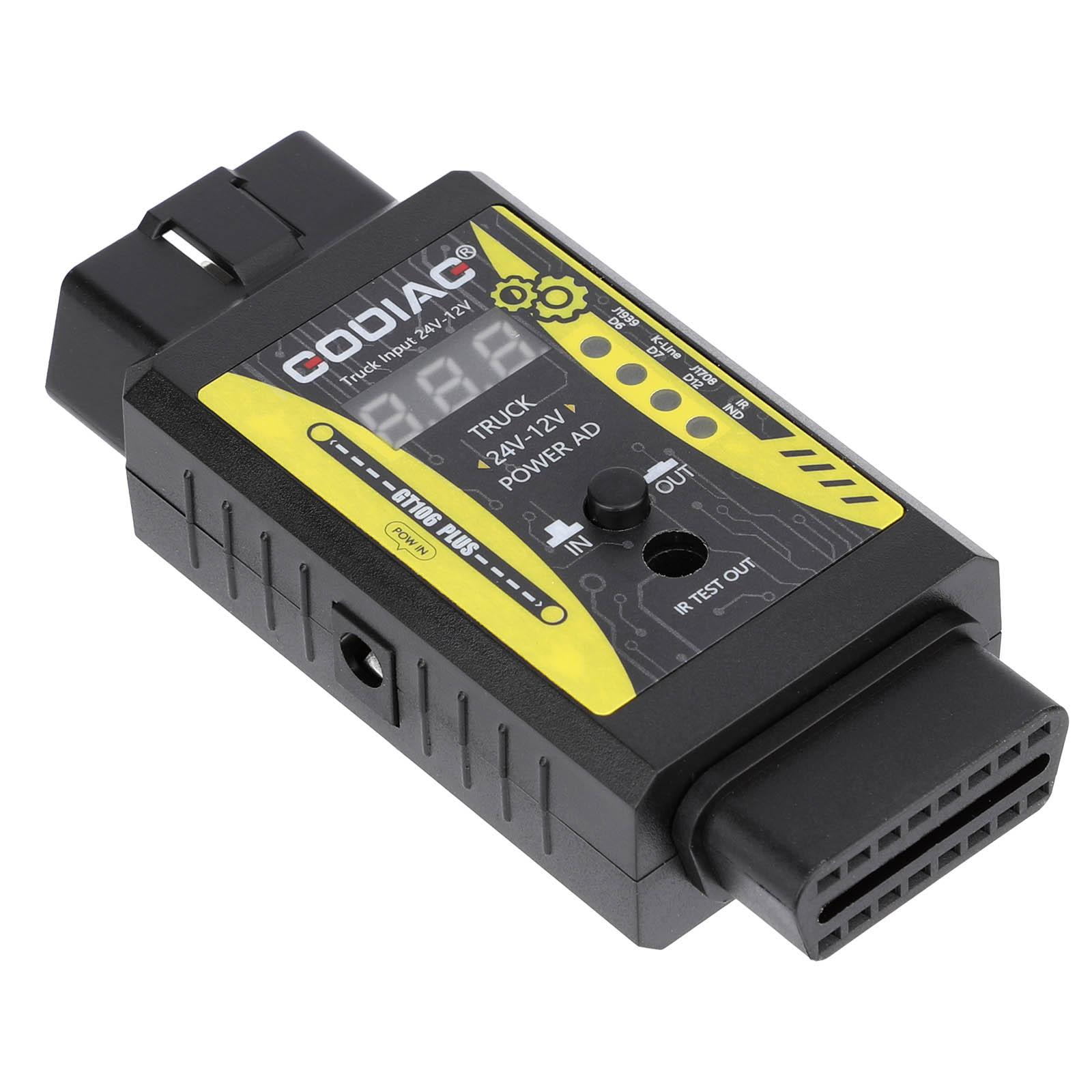

Comparison: | Product Name | GODIAG GT106 PLUS 24v to 12v adapter | Other 24v to 12v adapters |
| Diagnosis port 24v to 12v | √ | √ |
| Input voltage display | √ | × |
| Output voltage display | √ | × |
| 24v K-line protocol to 12v K-line protocol | √ | × |
| Communication protocol indicator | √ | × |
| Power DC interface | √ | × |
| Fuel Injector Cleaning for Cars | √ | × |
| Fuel Injector Cleaning for Trucks | √ | × |
| Relay Test for Cars | √ | × |
| Relay Test for Trucks | √ | × |
Works with the following scanners:
EasyDiag, EasyDiag 3.0, Golo Green Adition, M-DIAG, IDIAG, ICarScan, Diagun, GOLO, DBScar II etc..
Supported Trucks or Heavy Duty Vehicles
ABS (HD), ALLISON (HD), BENDIX ABS (HD), BONLUCK (HD), BOSCH (HD), CATERPILLAR (HD), CHAOCHAI (HD), CHRYSLER (DIESEL) CITROEN (DIESEL), CTRUCKTY (HD), CTRUCKZY (HD), CUMMINS (HD), DACHAI (HD), DAF (HD), DAYUN (HD), DEMO (HD), DETROIT (HD), DFL (HD), DongFeng (HD), EATON (HD), FAW (HD), FIAT (DIESEL), FORD (DIESEL), FOTONAUMAN (HD), FREIGHTLINER (HD), GM (DIESEL), Great WalI (DIESEL), HALDEX ABS (HD), HIGER (HD), HINO (HD), HONGYAN (HD), HUANGHAI (HD), HYUNDAI (HD), INTERNATIONAL (HD), ISUZU (HD), IVECO (HD), JAC (DIESEL), JAC (HD), JAC LIGHT (HD), JMC (HD), KAMA (HD), KARRY (HD), KARRY TRUCK (HD), KENWORTH (HD), KINGLONG (HD), KOBELCO (HD), LAIDONG (HD), MACK (HD), MAN (HD), MAXUS (DIESEL), MAXXFORCE (HD), MAZDA (DIESEL), MERCEDES (HD), MITSUBISHI (DIESEL), MITSUBISHI FUSO (HD), NISSAN (DIESEL), OBD (HD), OPEL (DIESEL), PACCAR (HD), PETERBILT (HD), PEUGEOT (DIESEL), QUANCHAI (HD), RENAULT (HD), SCANIA (HD), SCR (HD), SHACMAN (HD), SHANGCHAI (HD), SINOTRUK (HD), SPRINTER (DIESEL), STERLING (HD), SUNWIN (HD), TOYOTA (DIESEL), UD (HD), VOLVO (HD), VW (DIESEL), WABCO ABS (HD), WAW (HD), WEICHAI (HD), WESTERN STAR (HD), WUZHOULONG (HD),XICHAI (HD), YANGCHAI (HD), YQSH (HD), YUCHAI (HD), YUNNEI (HD), YUTONG (HD), ZHONGTONG (HD)

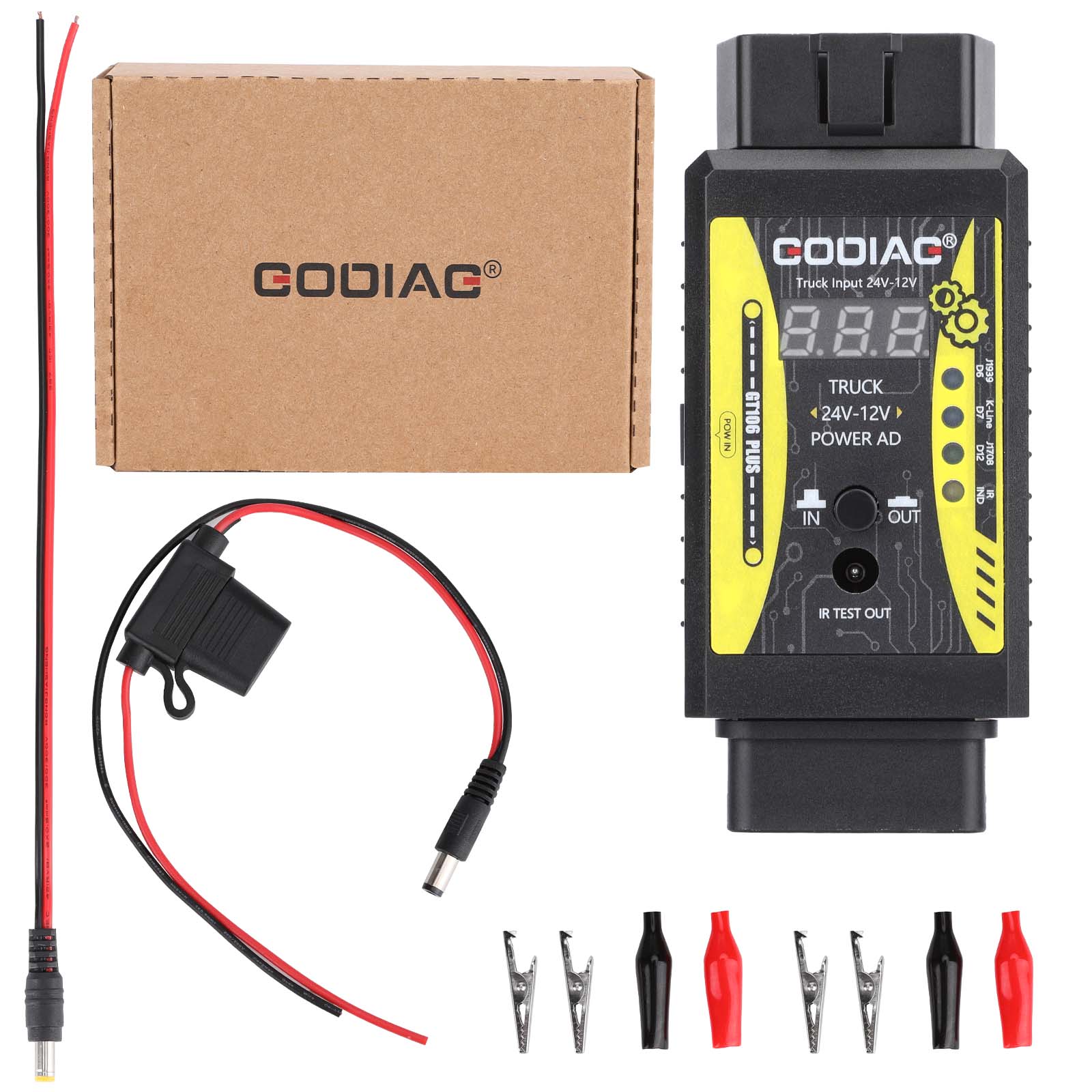

Package Includes:
1pc x GODIAG GT106 PLUS 24V to 12V Heavy Duty Truck Adapter
1pc x power cord with fuse
1pc x power cord
4pcs x clamps
4pcs x rubber protective cover
