Product Description

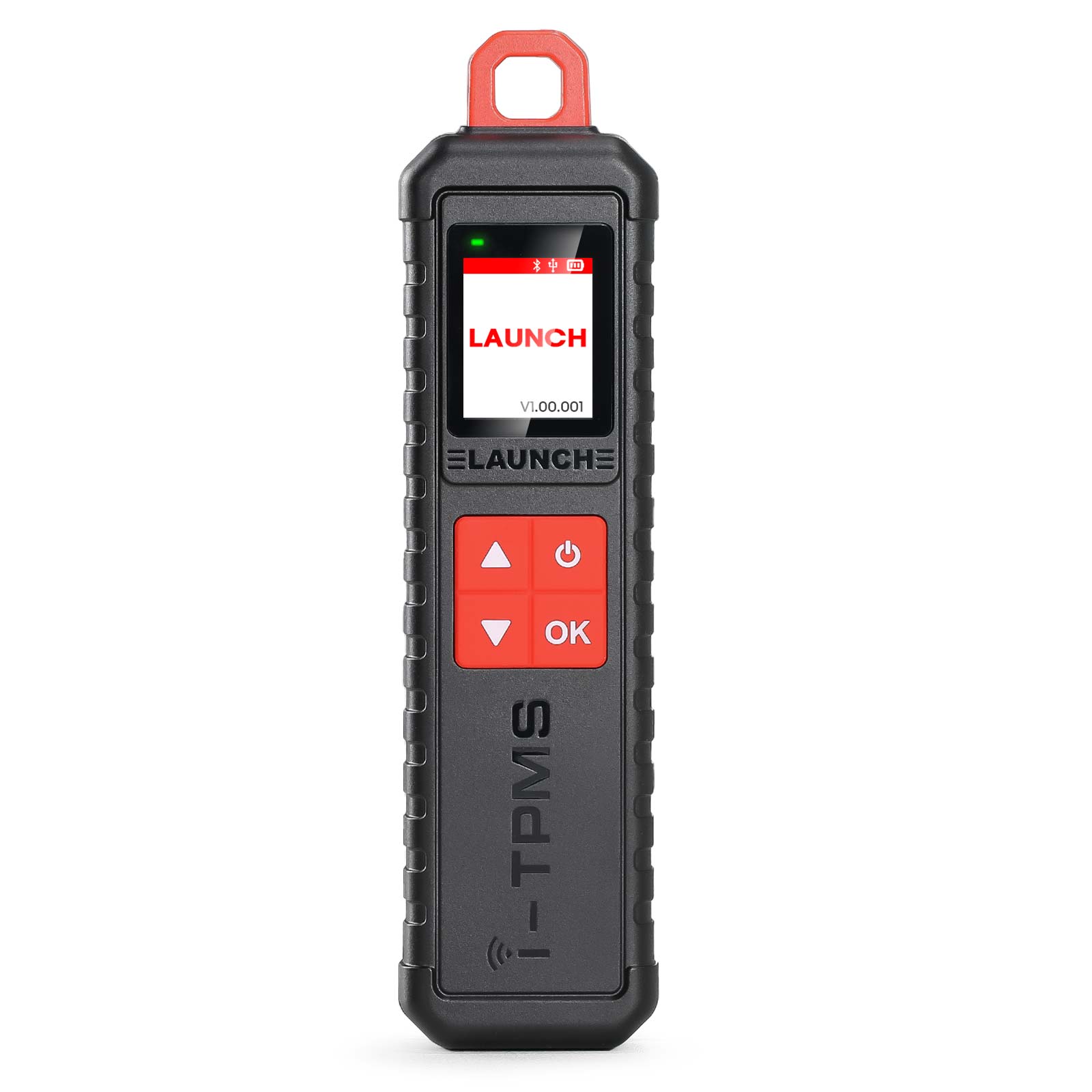

1. LAUNCH X431 i-TPMS is a portable, affordable and formidable powerful TPMS tools, designed to work with X-431 diagnostic tools to expand new functions and generate new revenues for X-431 users.
2. Support activate TPMS sensors, Read sensor data, TPMS diagnose, read/clear TPMS DTCs; scan TPMS sensor ID, program tpms sensor.
3. Come with 4pcs Launch Sensor

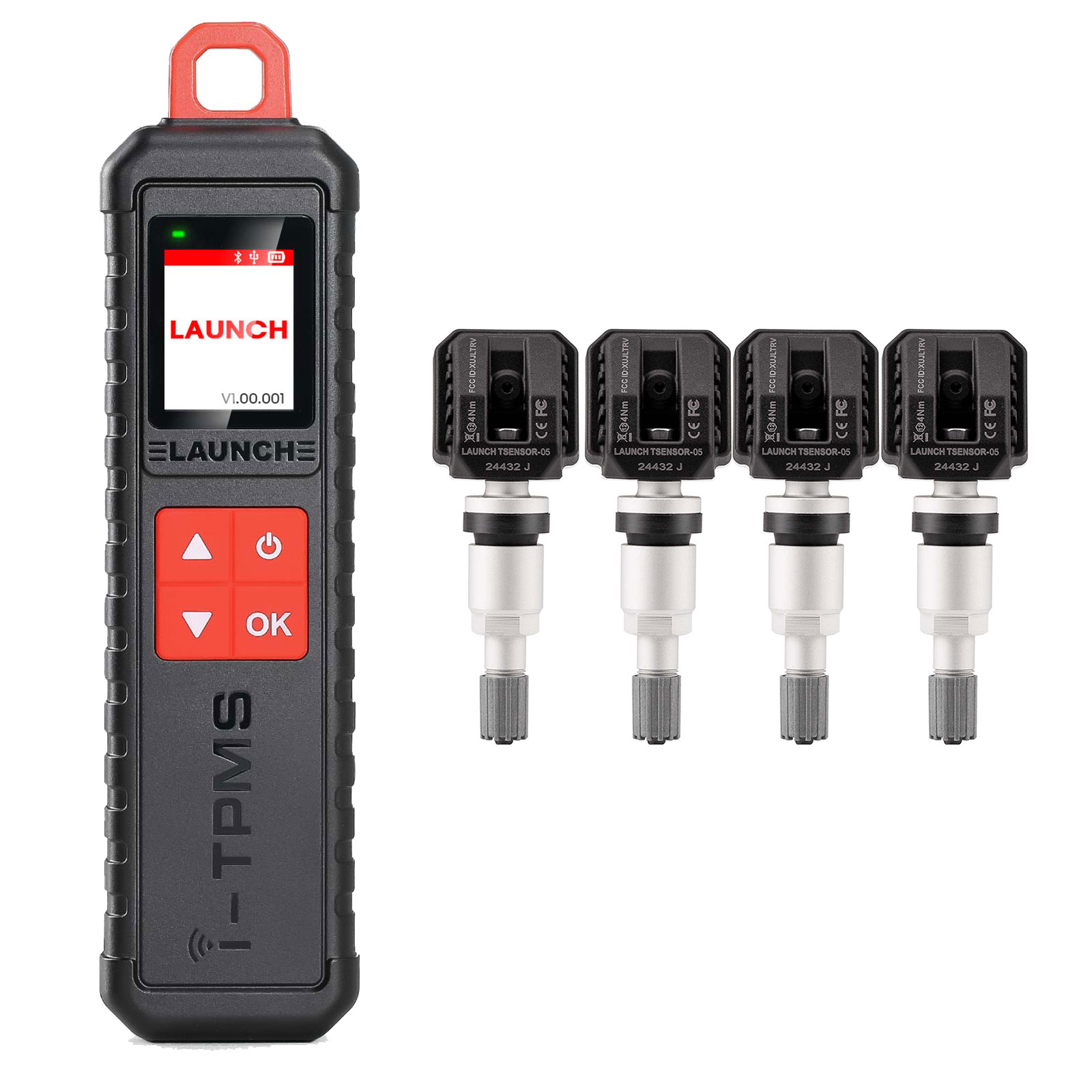

Launch X431 i-TPMS (TSGUN) TPMS WAND + 4PCS Launch LTR-03 RF Sensor 315 MHz and 433 MHz
LAUNCH X431 i-TPMS Active/ Relearn/ Programming Tool can program launch sensors 315 MHz and 433 MHz. 4 Modes to Program Launch Scanner: Auto Create : user can generate the sensor ID by click auto button
Manual Input : x431 tsgun support manually input the original ID or other ID.
Copy by OBD: it needs to connect OBD cable to retrieve the sensor ID from the ECU.
Copy by Activation: it requires activate the original sensors first.
3 Ways to Relearn Sensors: Stationary Relearn requires the vehicle be placed in the learning mode, and the follow the on-screen prompts to complete it.
Automatic Relearn, for some vehicles, can be completed by driving. Refer to the on-screen learning steps to do the operation.
OBD Relearn directly writes TPMS sensor IDs to the TPMS module via the OBD connector.To perform relearn by OBD, firstly activate all sensors, and then use the diagnostic tool together with the included VCI to complete the learning steps following the on-screen instructions.
Complete TPMS Functions:
1. Activates all universal TPMS sensors.
2. Reads sensor data including sensor ID, tire pressure, temperature, battery condition ect.
3. Read/Clear fault codes for tpms system, allows you clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint system faults.
Specificationï¼
Displayï¼1.77 inch color screen
Resolutionï¼168*128 Pixel
Batteryï¼3000 mAh
Input Voltageï¼DC 5V
Working Currentï¼≤1A
Working Temperatureï¼-10âï½50â
Storage Temperatureï¼-20âï½60â

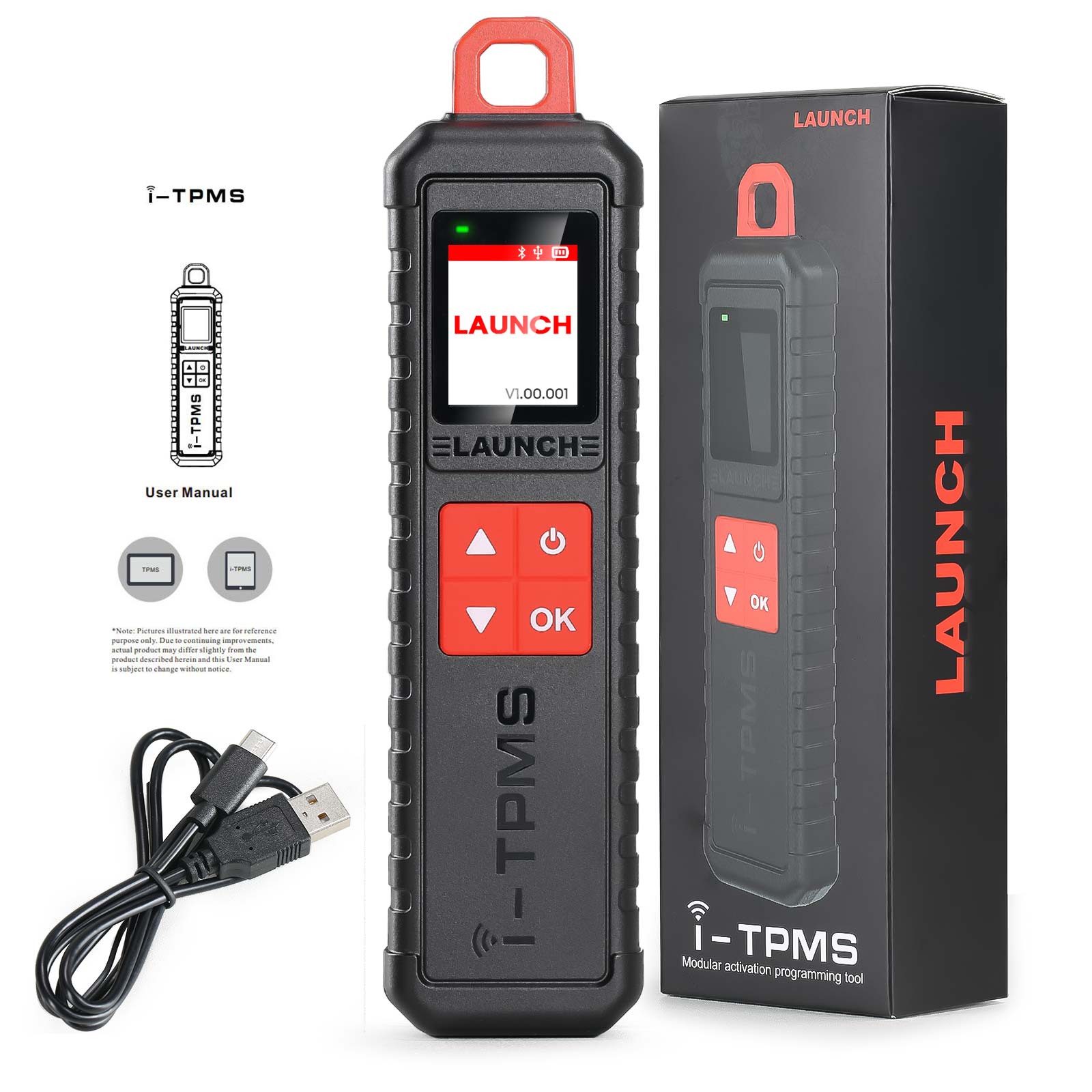

Package List:
1pc x Launch X-431 i-TPMS Tool
1pc x USB Cable
1pc x User manual
1pc x Box
4pcs x Launch LTR-03 RF Sensor 315MHz & 433MHz Metal
