Product Description

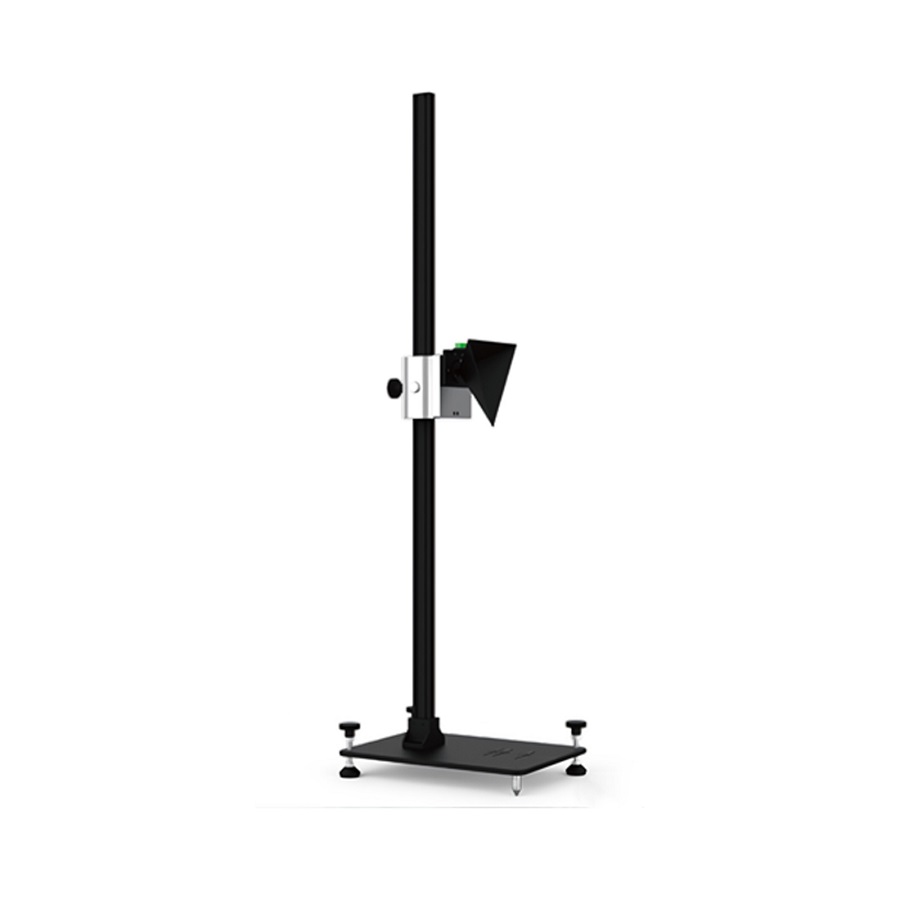

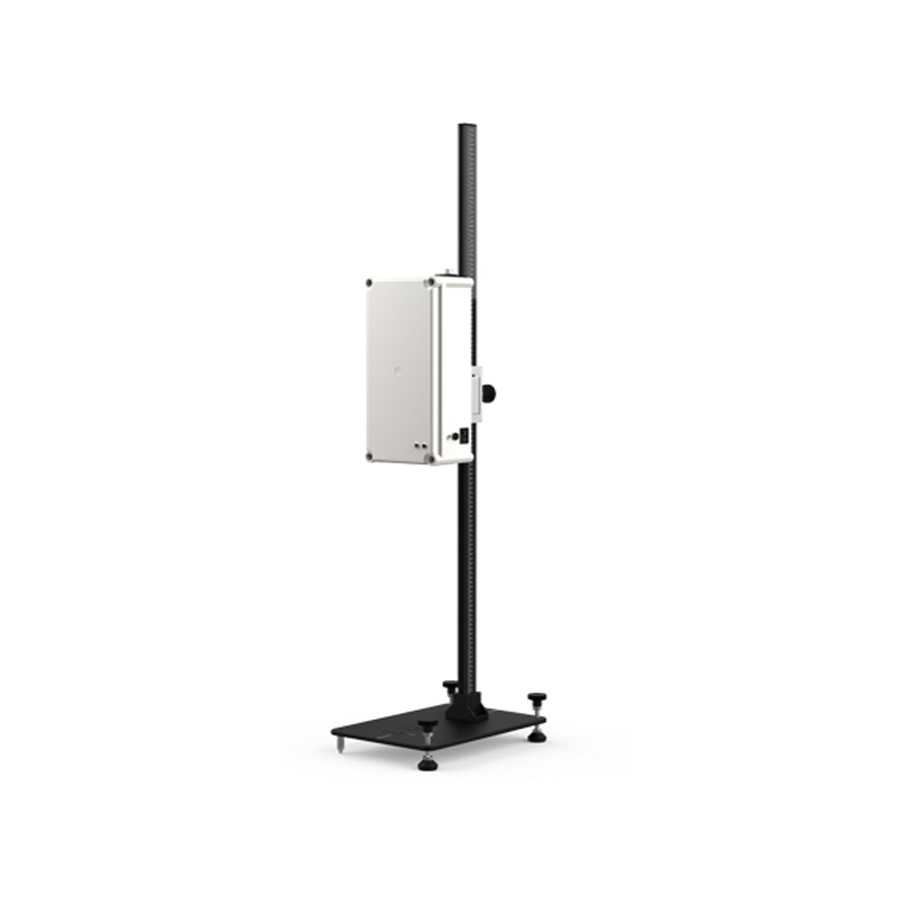

The X-431 ADAS RADAR 3-in-1 Tool is a plug-and-play device for passenger car radar calibration. It expertly calibrates Adaptive Cruise Control, Blind Spot, & Front Corner radars. Includes an ACC target, Corner Reflector & Doppler Simulator for precise static/dynamic tests and reports.

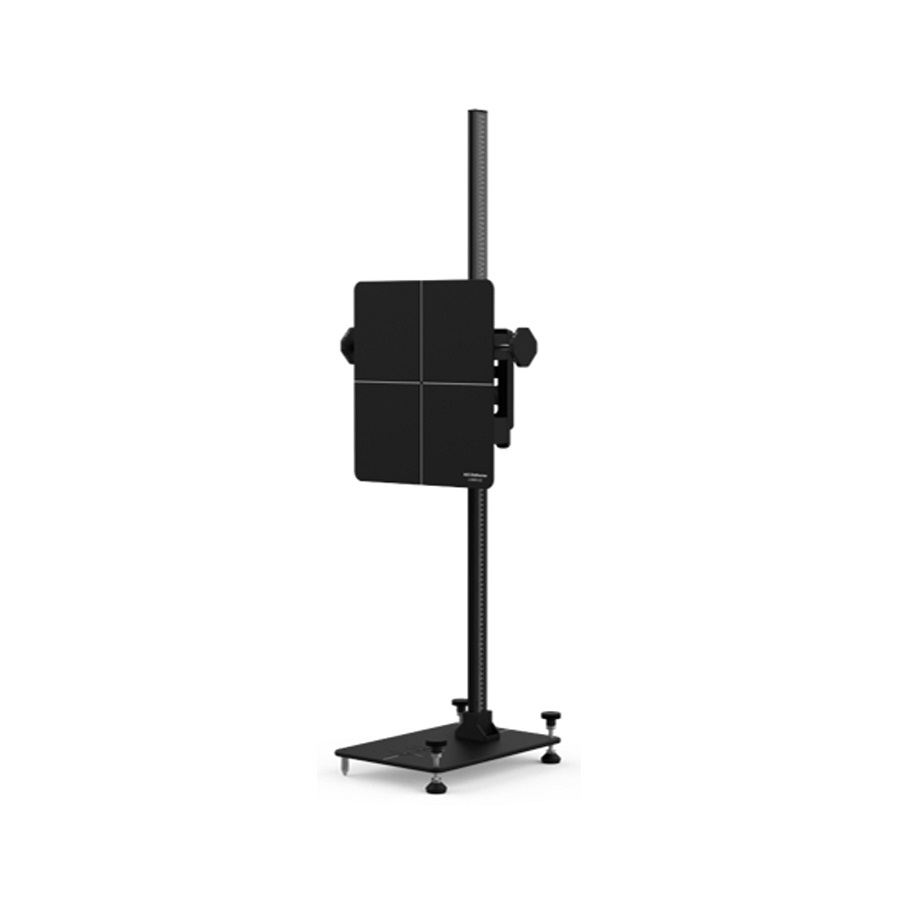

LAUNCH X431 ADAS Radar 3-in-1 ACC+Doppler+Corner Reflector Calibration Set
The X-431 ADAS RADAR 3-in-1 tool is a passenger vehicle ADAS calibration device designed for radar system calibration. It supports calibration of adaptive cruise control systems, blind spot monitoring systems, and front corner radar systems.
Product Features: Multi-functional, supports calibration of multiple radar systems
Plug and play, no ADAS equipment required
Calibration software provides detailed illustrated tutorials
Outputs before-and-after calibration comparison reports

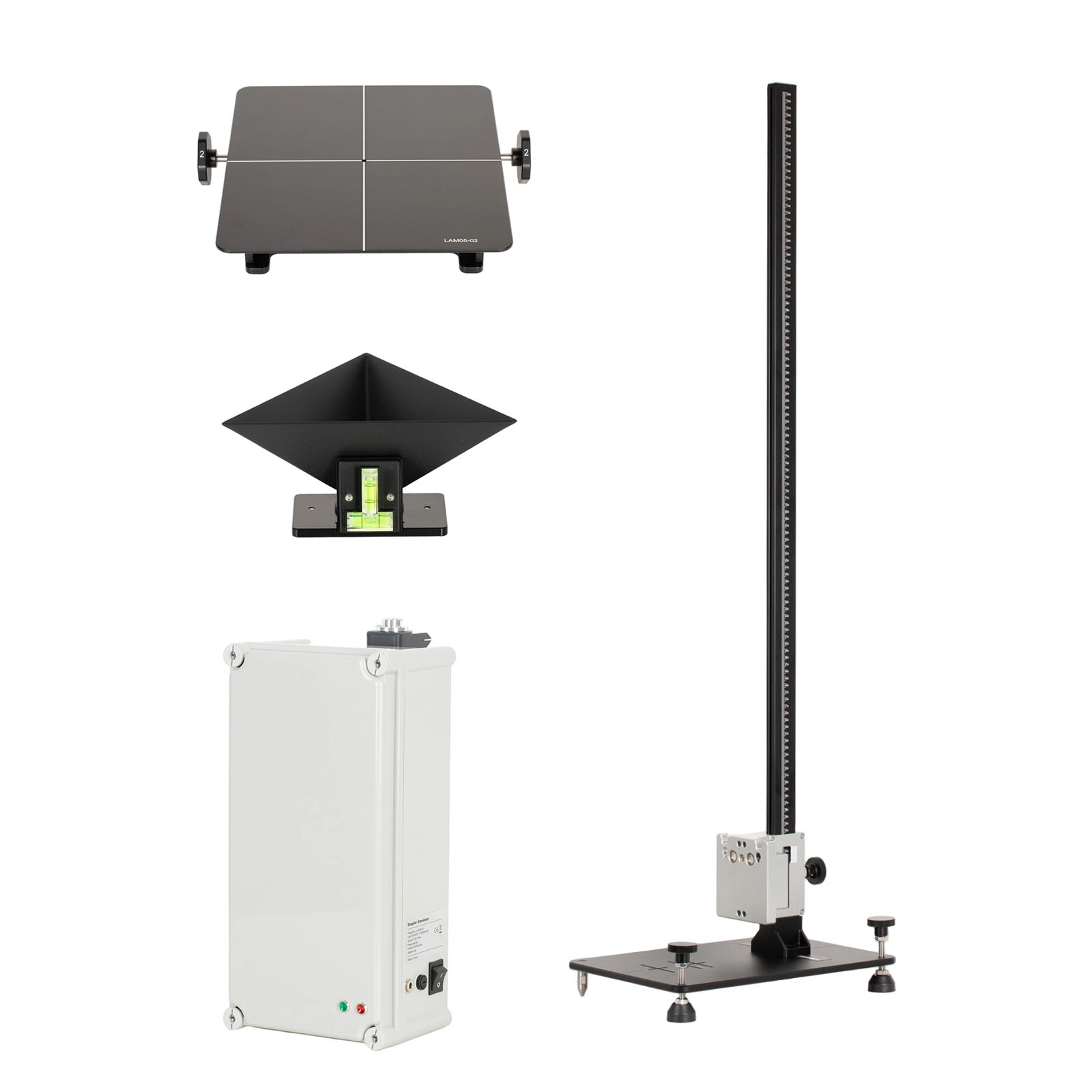

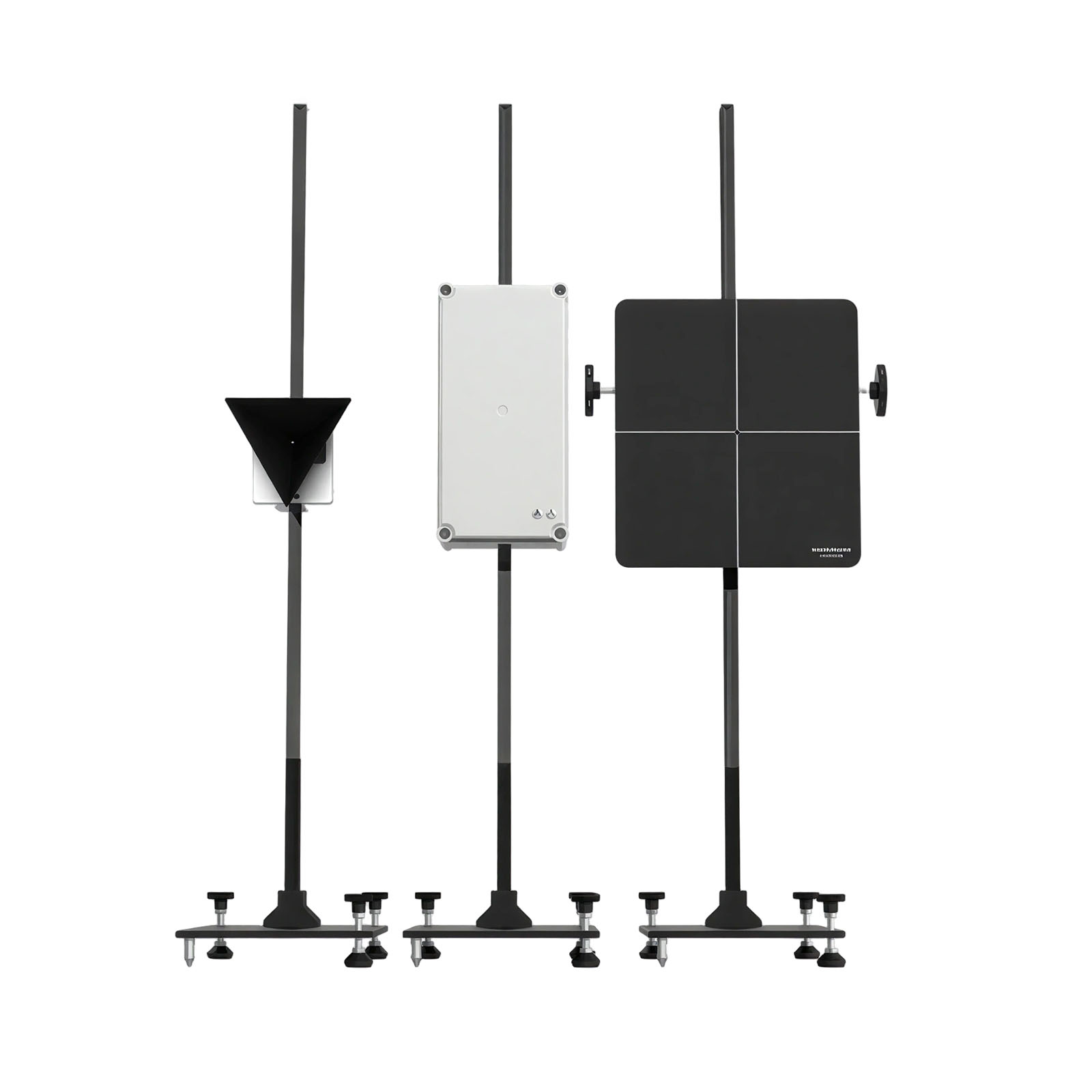

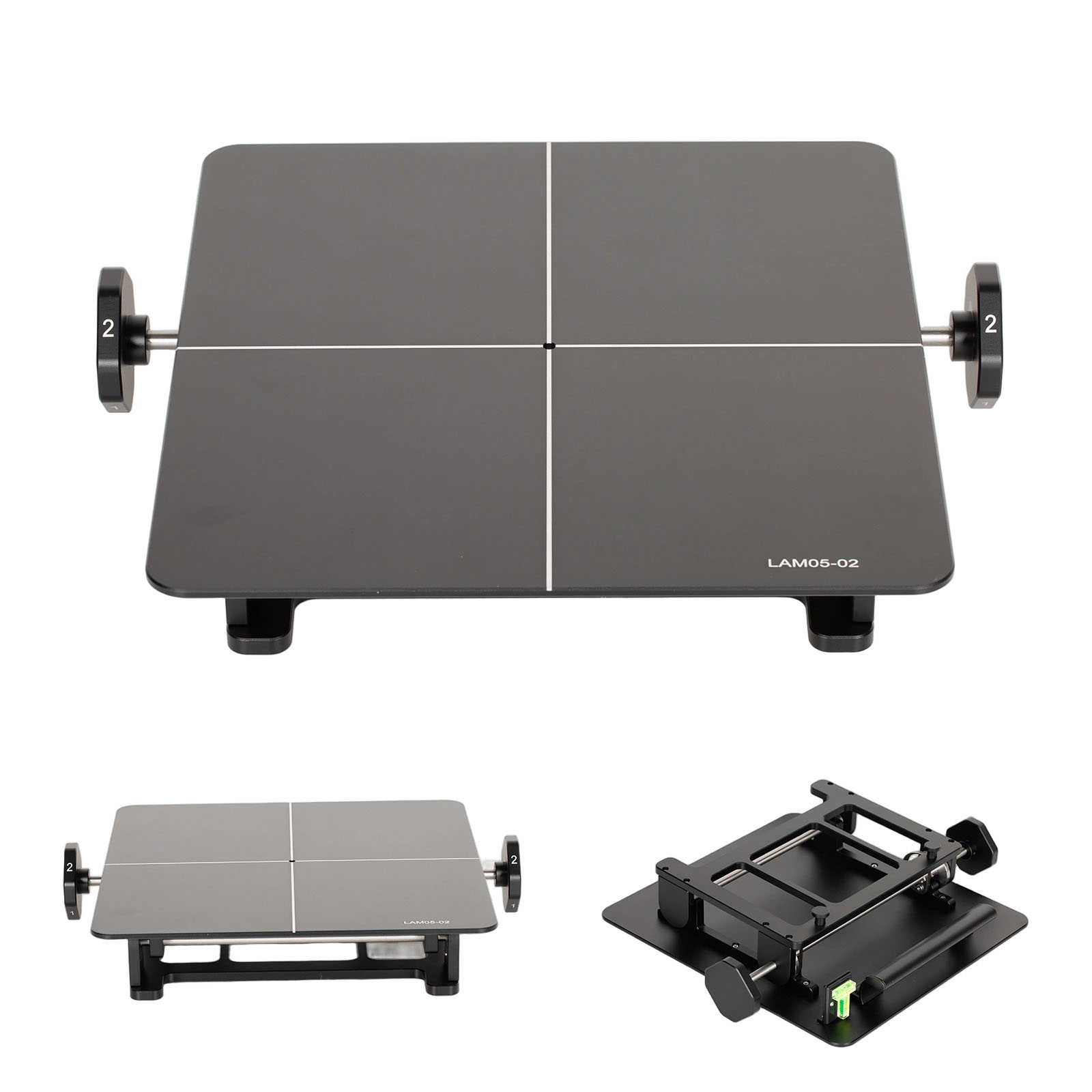

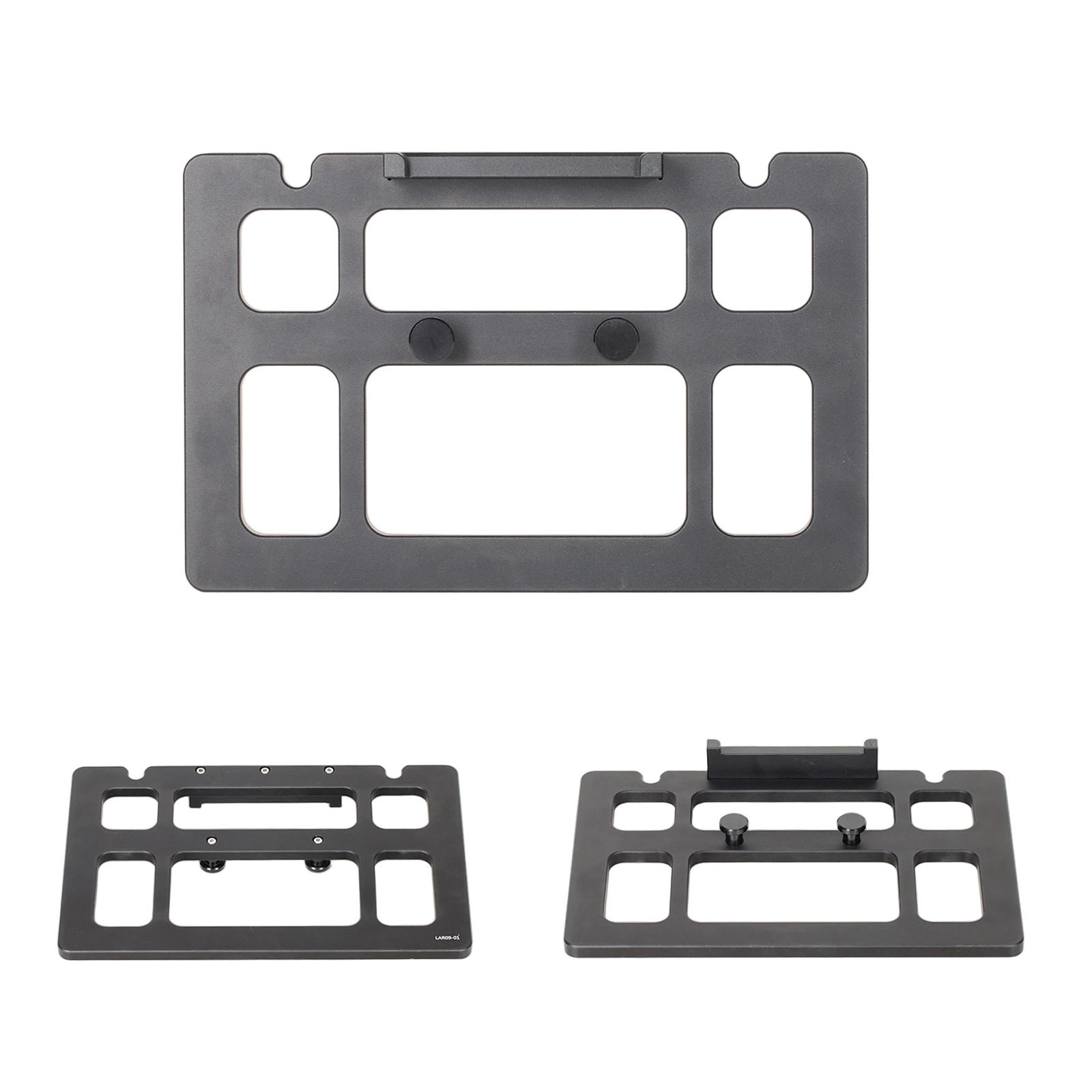

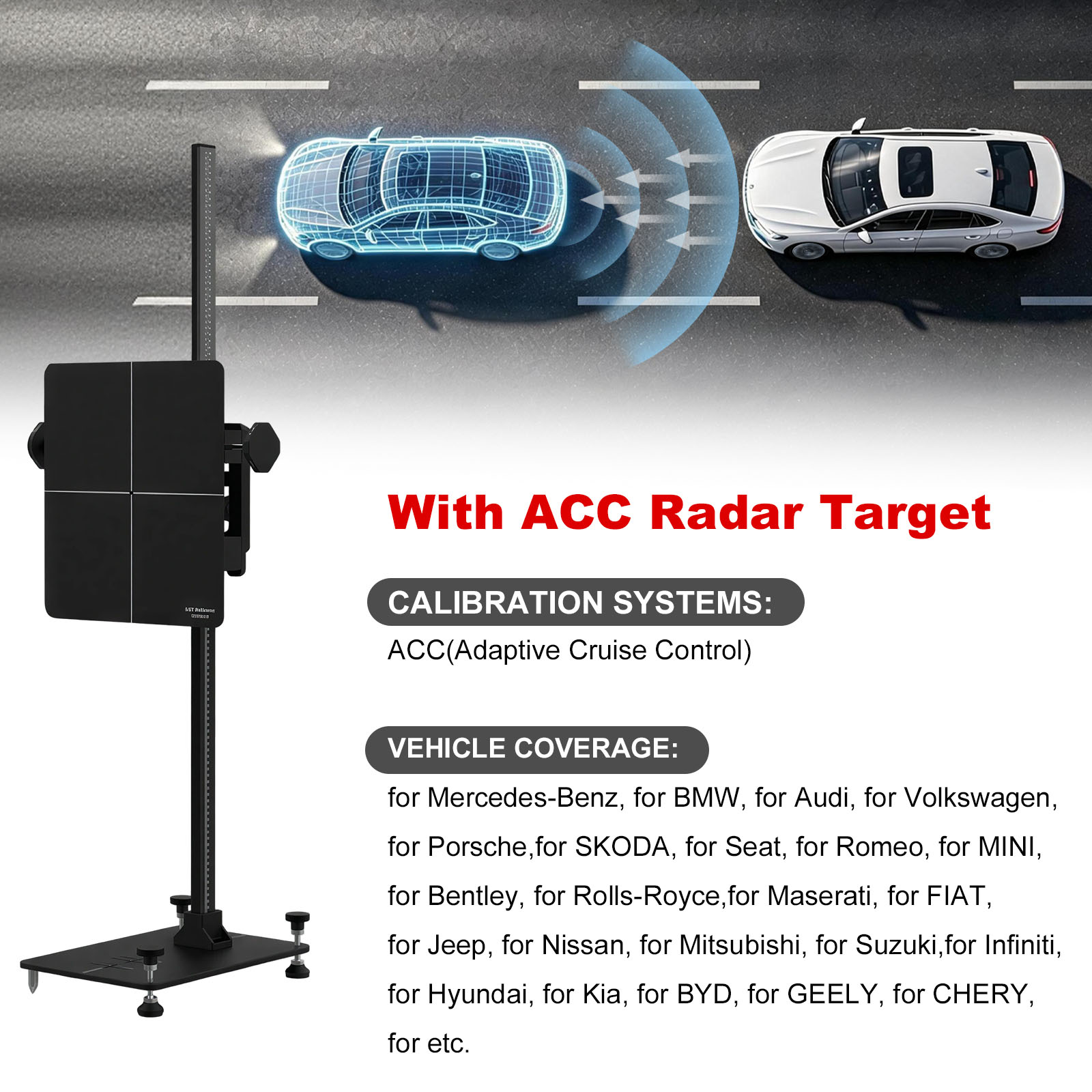

Product Functions: ACC Radar Target LAM05-02
Calibration system: Adaptive Cruise Control
Covered models: for Mercedes-Benz, for BMW, for Audi, for Volkswagen, for Porsche, for Å koda, for SEAT, for Alfa Romeo, for MINI, for Bentley, for Rolls-Royce, for Maserati, for Fiat, for Jeep, for Nissan, for Mitsubishi, for Suzuki, for Infiniti, for Hyundai, for Kia, for BYD, for Geely, for Chery...

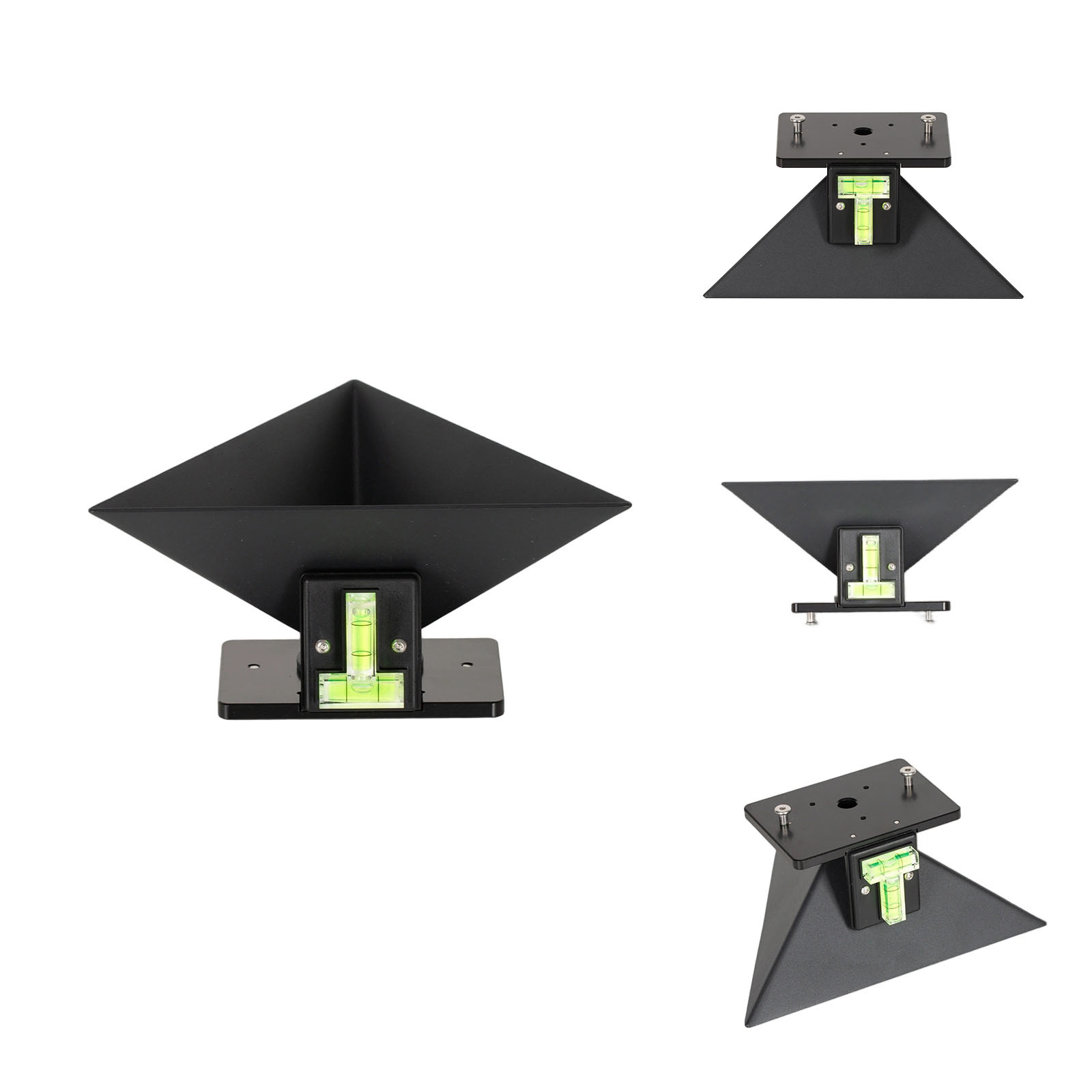

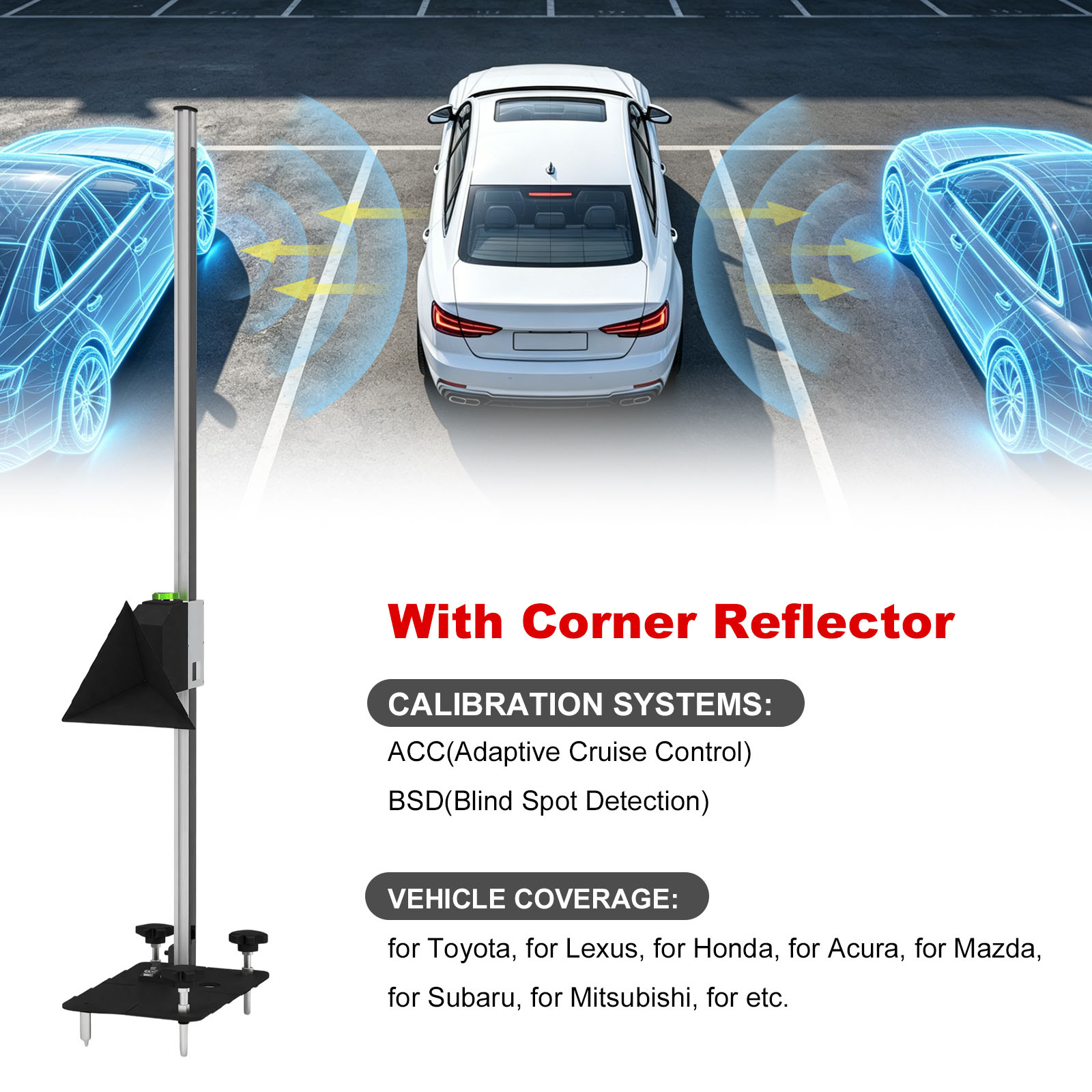

Corner Reflector LAC05-03
Calibration system: Adaptive Cruise Control, Blind Spot Monitoring
Covered models: for Toyota, for Lexus, for Honda, for Acura, for Mazda, for Subaru, for Mitsubishi, for Hyundai...

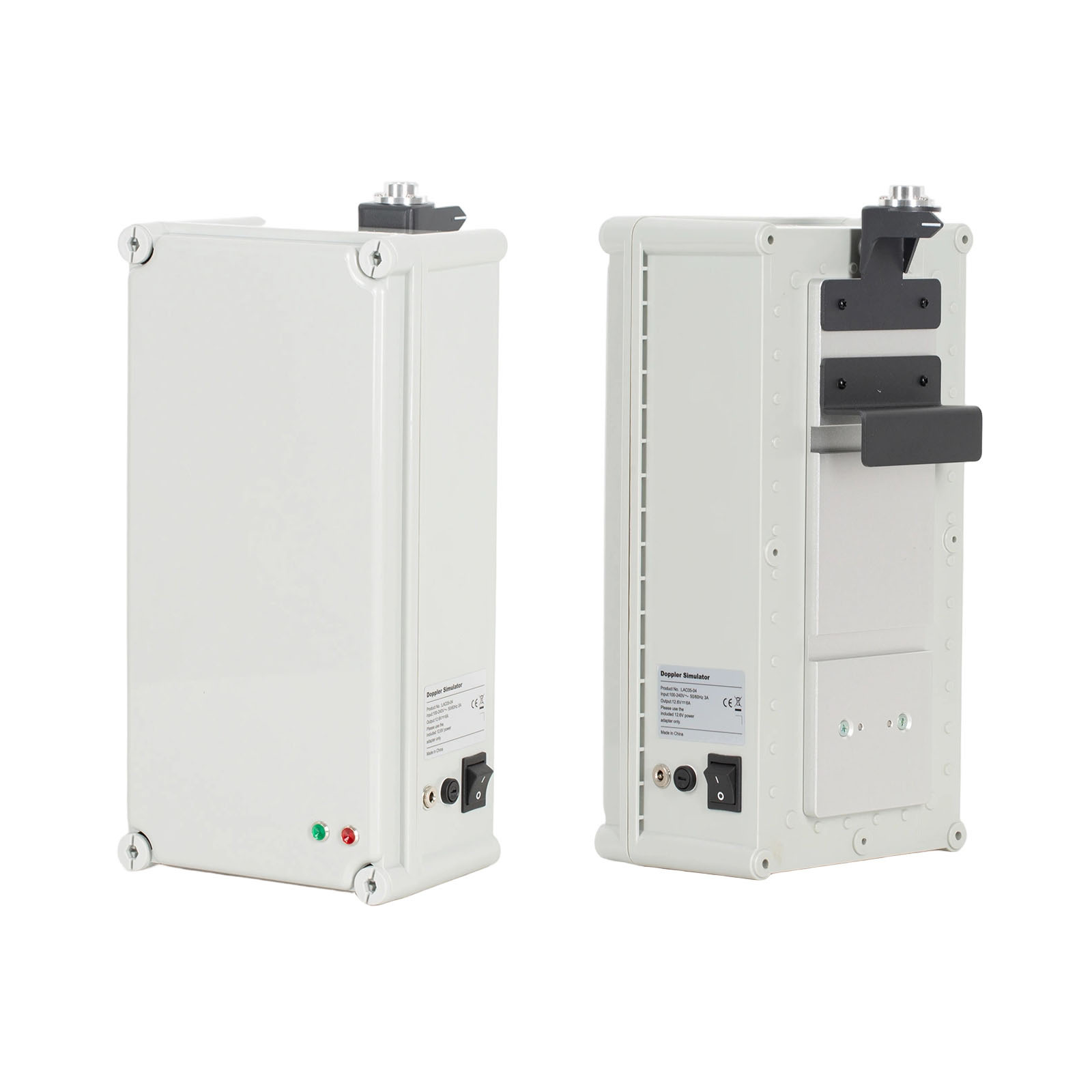

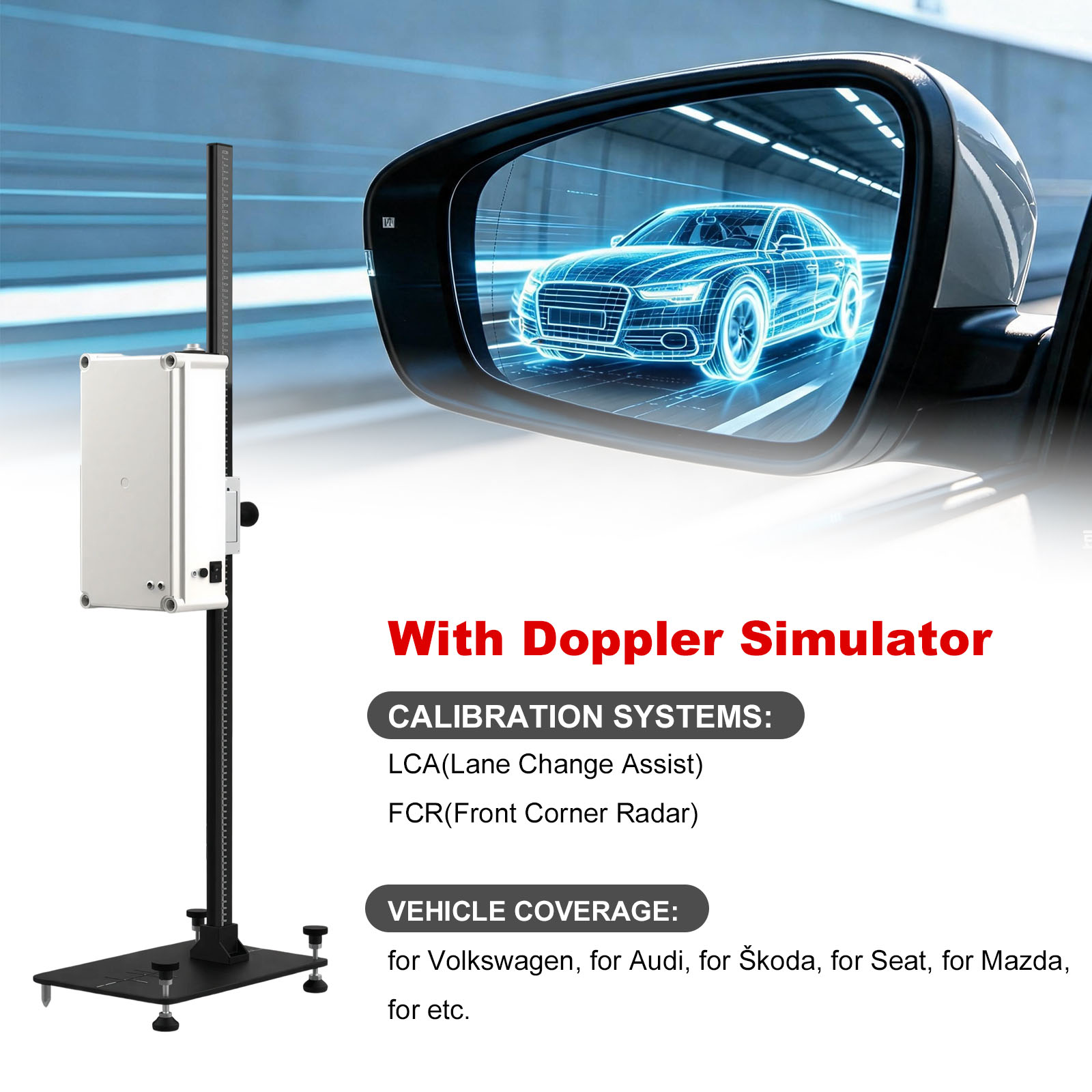

Doppler Simulator LAC05-04
Calibration system: Lane Change Assist, Front Corner Radar System
Covered models: for Volkswagen, for Audi, for Bentley, for Å koda, for SEAT, for Mazda...
Under what circumstances is calibration required?
Repairing or replacing a sensor control unit (e.g., replacing an ACC radar)
The sensor deviation angle exceeds the normal range (incorrect installation position/angle)
Moving the position of a sensor on the vehicle body (sensor position changes)
Repairing or replacing parts that secure the front sensor (e.g., replacing the bumper)
Adjusting the chassis
Two types of calibration: Dynamic Calibration & Static Calibration
Dynamic Calibration
Dynamic calibration does not require portable ADAS calibration equipment, but it does require calibration software in the diagnostic device to initiate the learning process.
Dynamic calibration requires test driving on straight roads with clear lane markings at a specific speed.
Static Calibration
Static calibration refers to the process of completing calibration in a standard workshop environment using a calibration frame and target patterns. Static calibration requires portable ADAS calibration equipment and calibration software in the diagnostic device.
Before performing the calibration steps using the calibration tool, please ensure the following conditions are met:
The vehicle’s sensor area must not be damaged.
The bracket holding the sensor must not be deformed.
Check the tire pressure and correct it to the recommended value if necessary.
Apply the parking brake and close the doors.
Ensure the vehicle’s coolant and oil levels are within the recommended range, and the fuel tank is full. The vehicle should not carry any items (passengers or cargo).
Connect the VCI to the vehicle and ensure that all systems except those related to ADAS are free of fault codes.
Follow the equipment step‑by‑step instructions and use the correct target and its distance parameters.
Do not lean on the vehicle during the adjustment process, as this may cause the wheels to tilt and affect wheel leveling when the camera is calibrated.
Calibration Area Conditions:
1. The work area surface must be flat, with sufficient space around the vehicle to complete the calibration procedure. (Recommended work area size: 5m x 9m)
2. There must be no large obstacles within the work area.
3. No external light source should cast uneven shadows on the target surface.
4. No strong light source should shine directly onto the front camera area.
5. No strong wind should cause the target to sway.

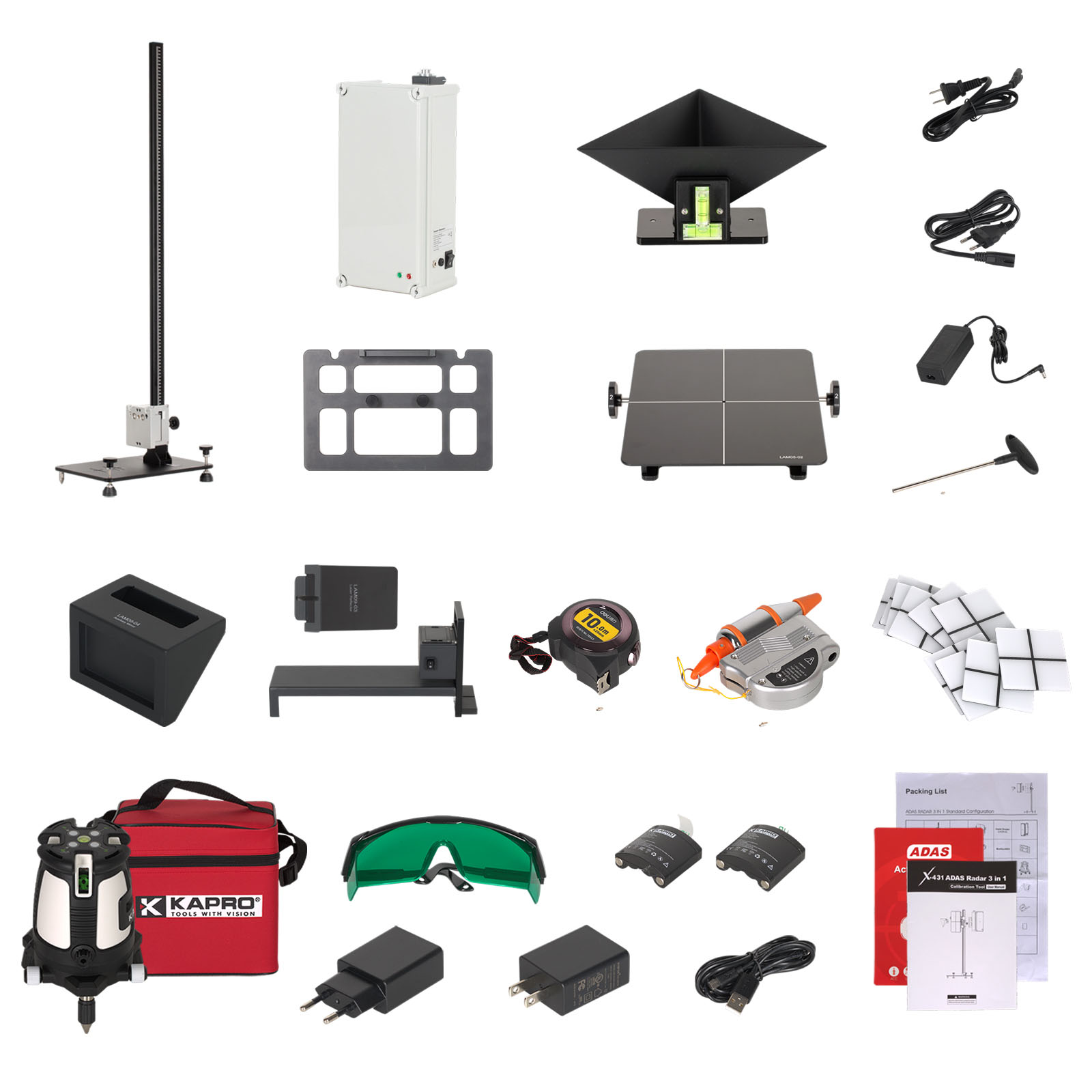

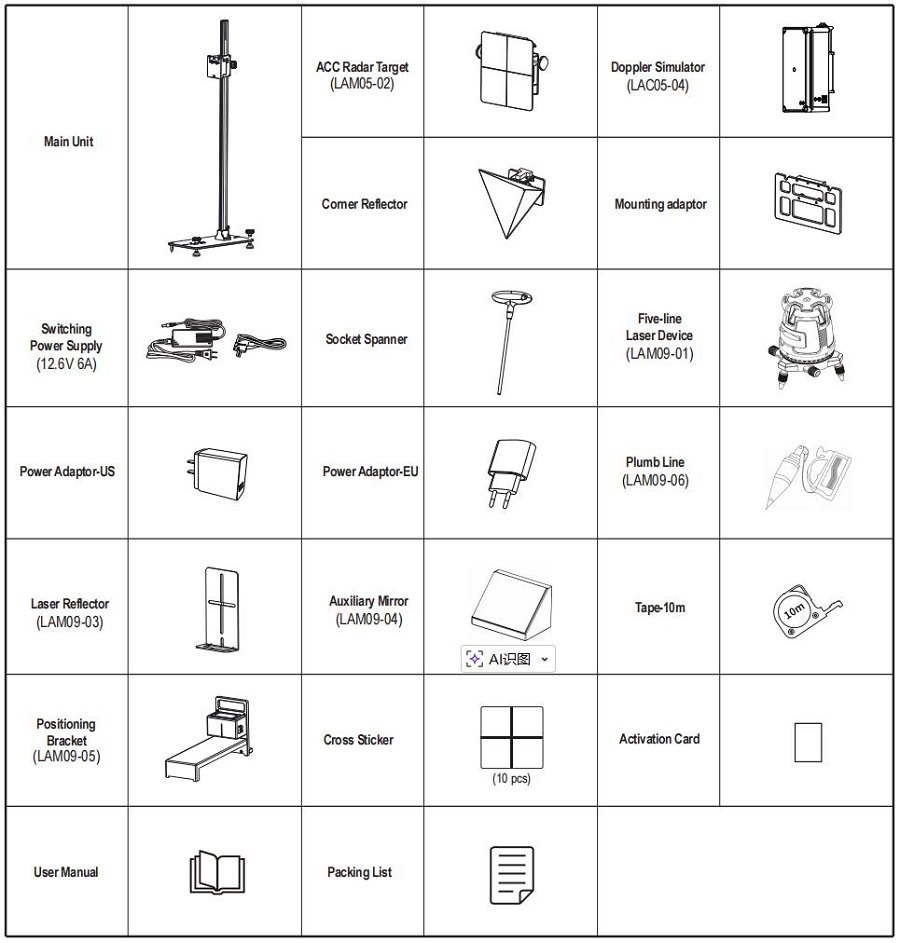

Package includes:

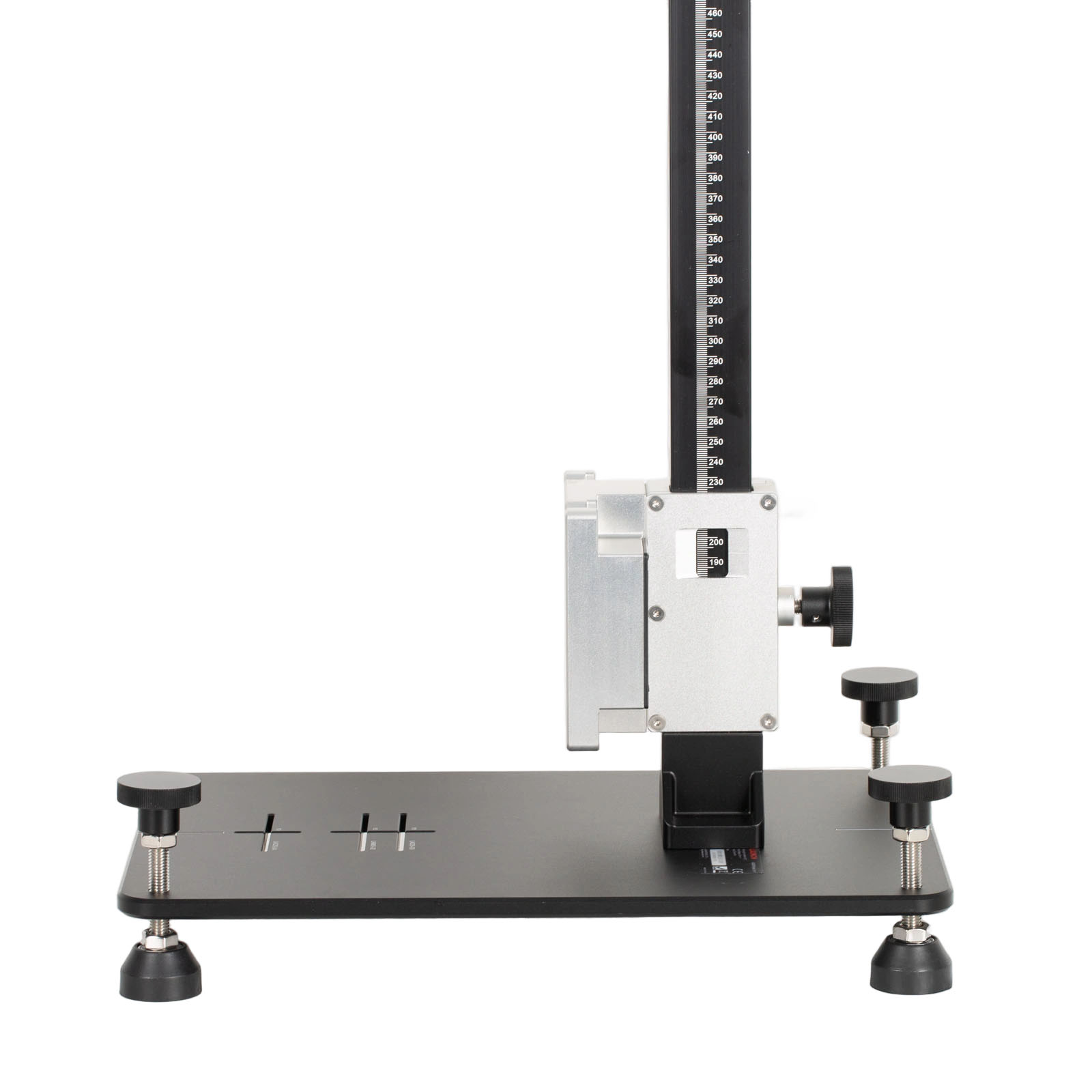

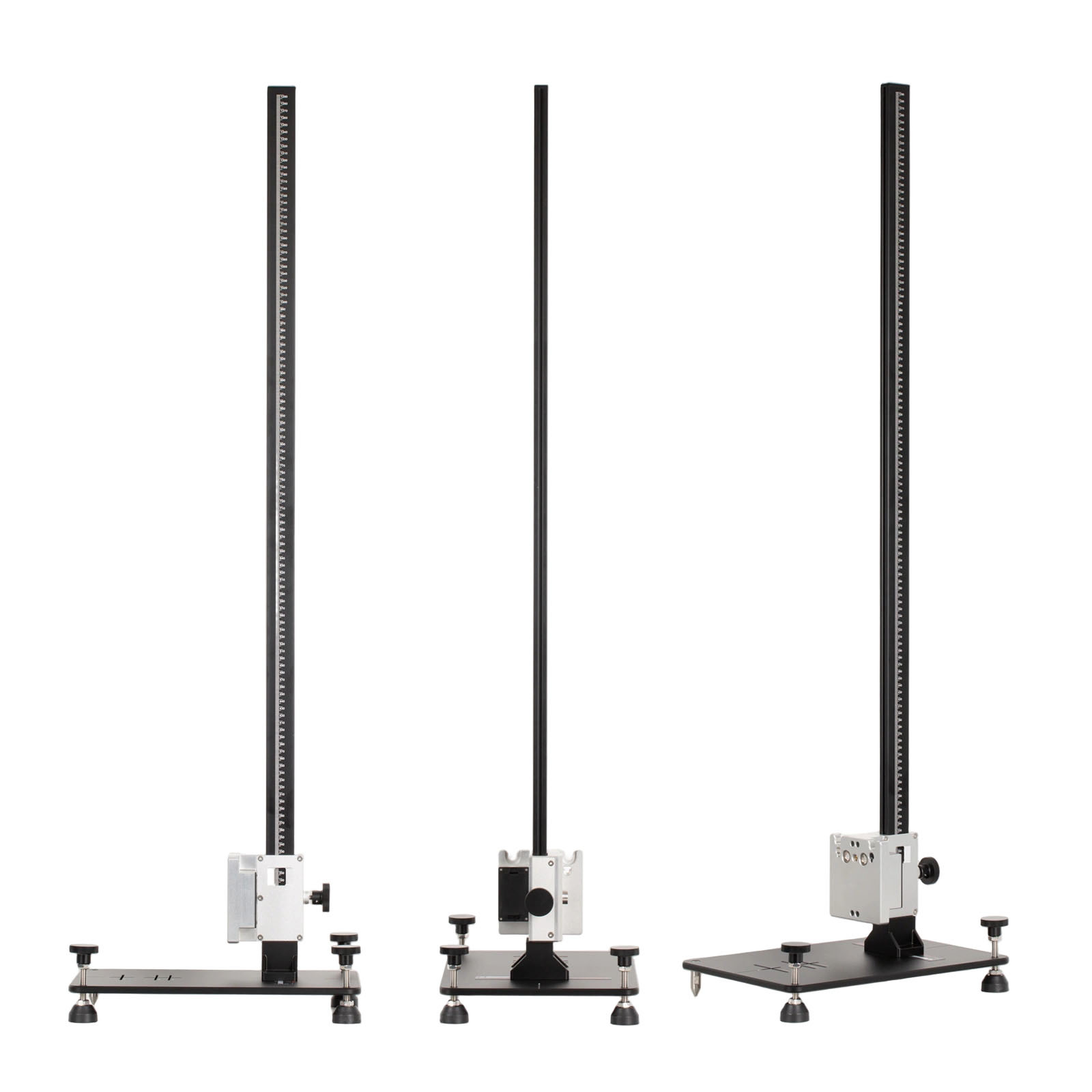

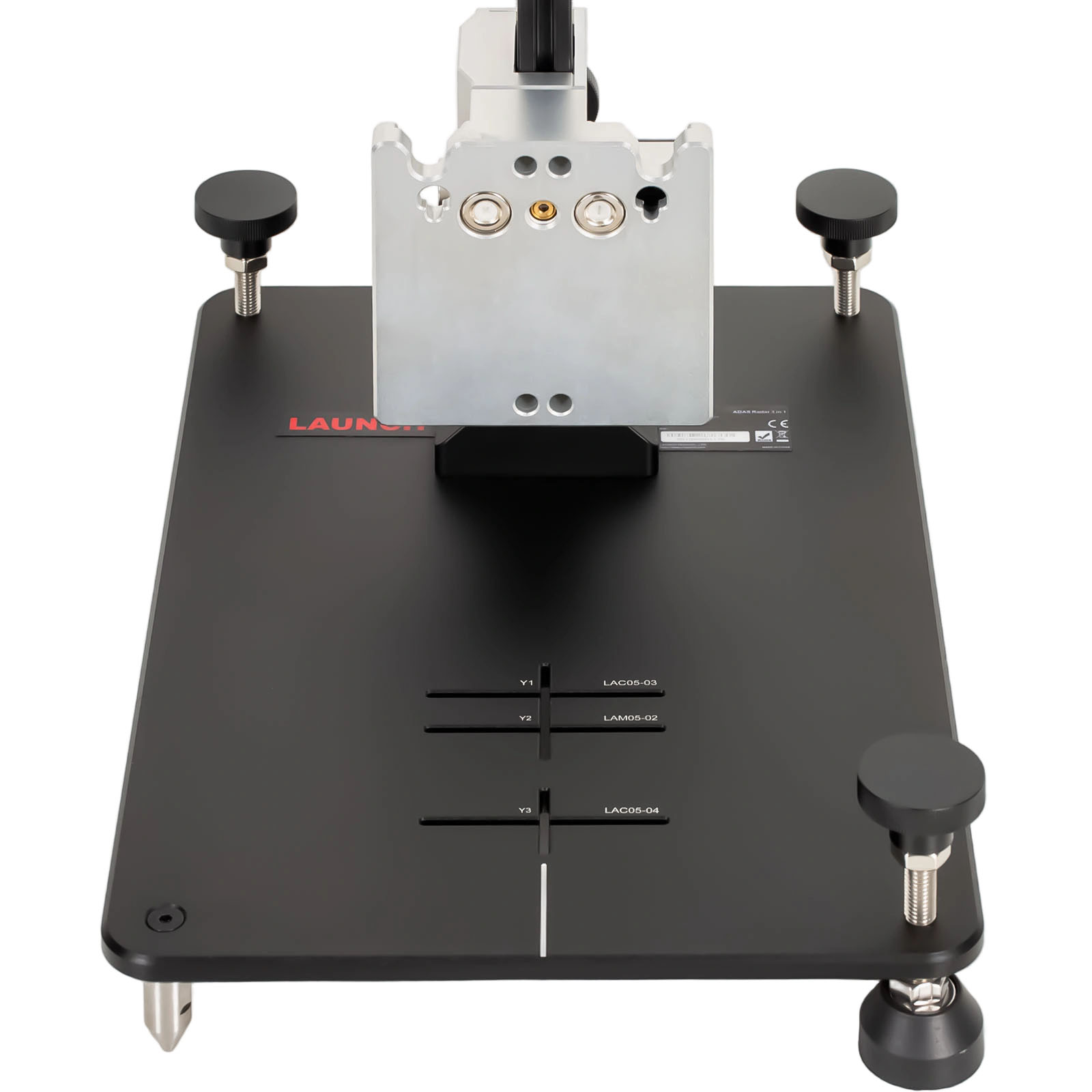

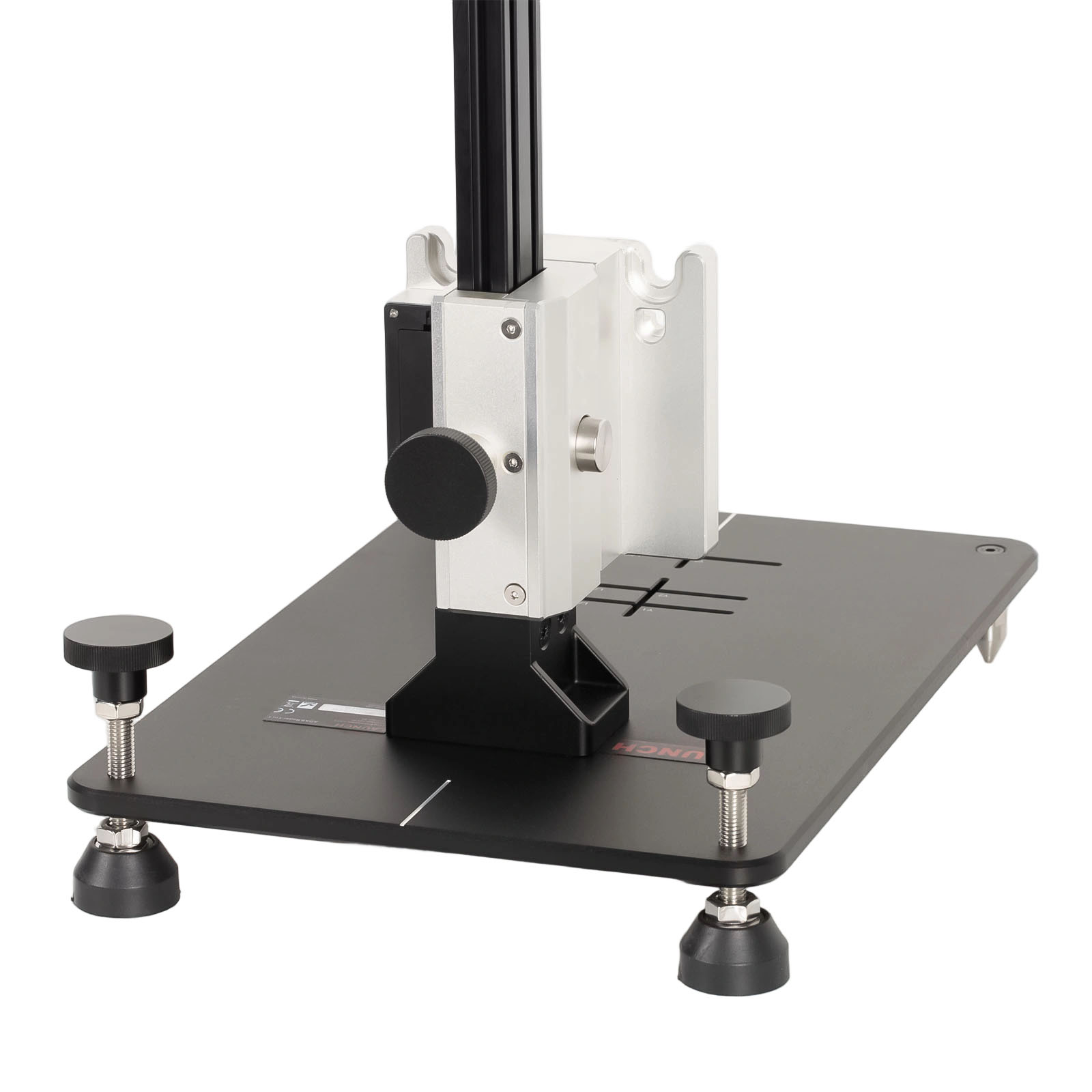

1pc x Main Frame
1pc x ACC Radar Target LAM05-02
1pc x Corner Reflector LAC05-03
1pc x Doppler Simulator LAC05-04
1pc x Switching Power Supply
1pc x Socket Spanner
1pc x Five-line Laser Device LAM09-01
1pc x Power Adaptor-US
1pc x Power Adaptor-EU
1pc x Mounting Adaptor LAR09-01
1pc x Laser Reflector LAM09-03
1pc x Auxiliary Mirror LAM09-04
1pc x Positioning Bracket LAM09-05
1pc x Plumb Line LAM09-06
1pc x Tape-10m
10pcs x Cross Sticker
1pc x Activation Card
1pc x User Manual
1pc x Packing List
