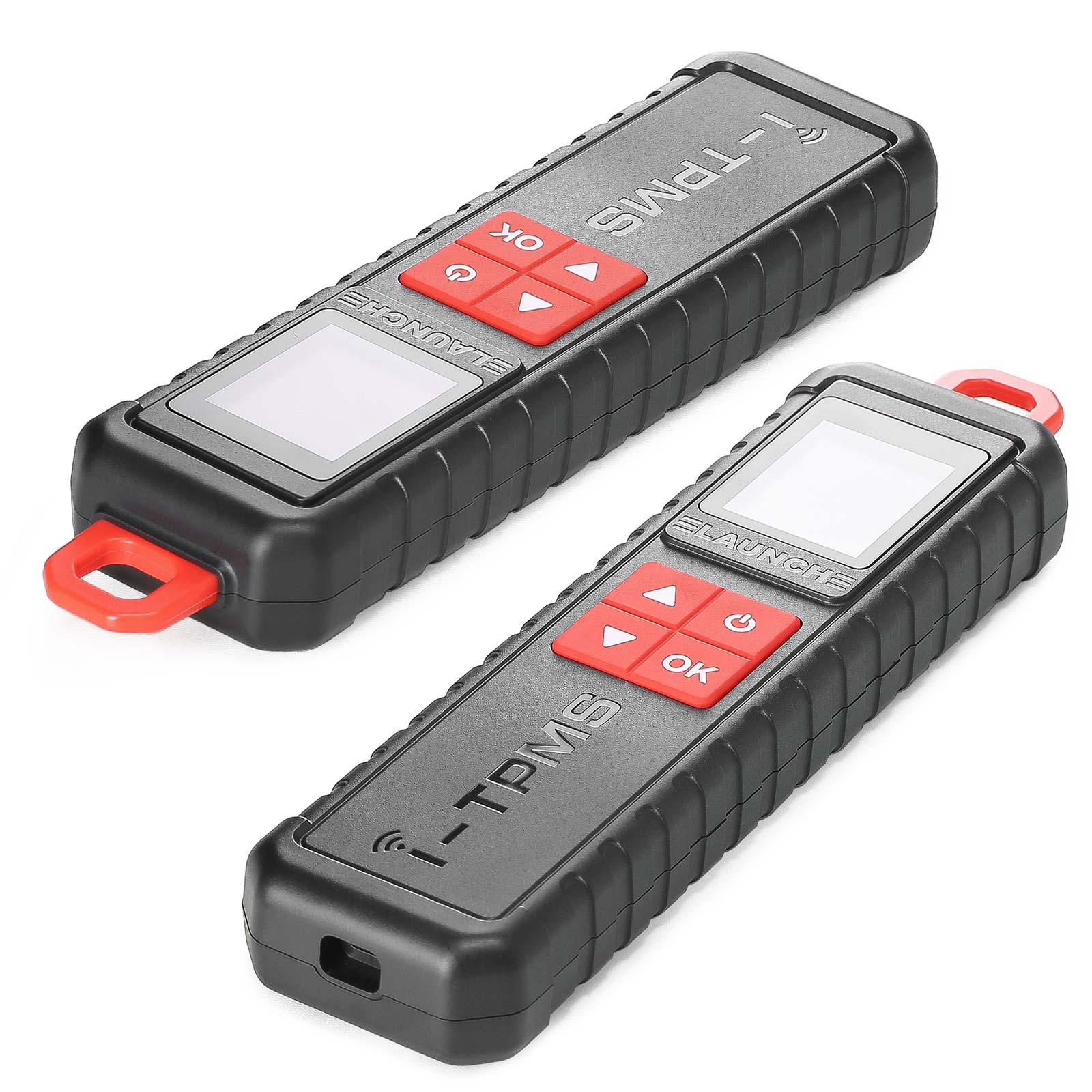

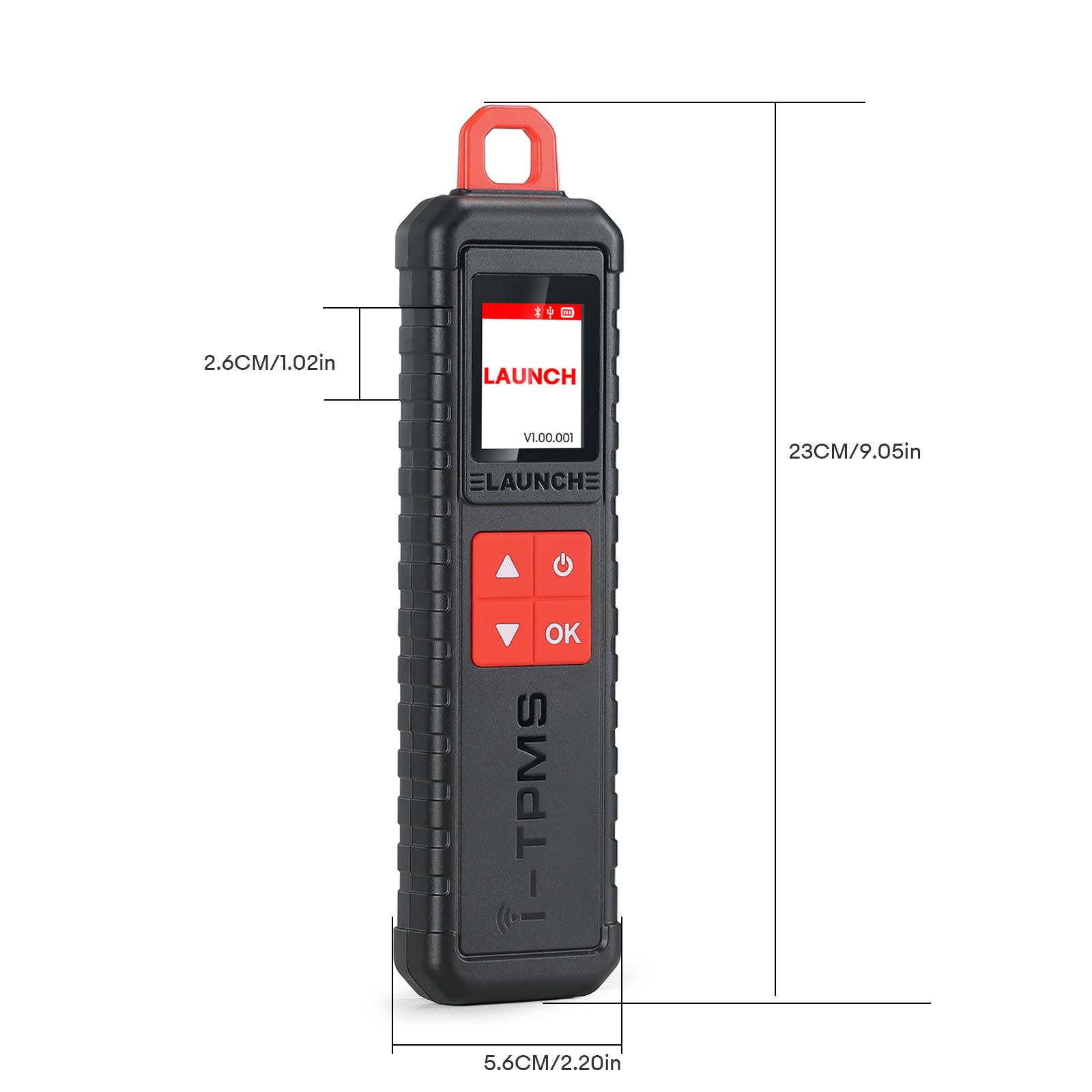

Launch X431 i-TPMS Tire Pressure Detector Tool Program Sensor



LAUNCH X431 i-TPMS is the upgrade of x431 ts gun, it supports all of the function of x431 TS GUN such as TPMS Active/ Relearn/ Programming Tool can program launch sensors 315 MHz and 433 MHz. (PS: Only can program launch sensors), It also works standalone via tpms app. (Only for Android System)

Launch i-TPMS Features:


1. The i-TPMS serves over 98% of mainstream vehicles with a TPMS-equipped system available on the market.

2. Experience TPMS service by binding it with an X-431 scanner or using it standalone with the i-TPMS APP.

3. Supports all 315/433MHz sensors.

4. Binding it with an X-431 scanner: Activation, Programming, Relearn and Diagnosing for sensors.
*X431 Pro5 SmartLink (new) has a Type-C connector that can directly connect with Launch i-TPMS Tool.
*X431 Pro5 SmartBox (old) doesn't have a Type-C connector, but you can buy an extra OTG USB Micro to USB-C Adapter to work with Launch i-TPMS Tool.

5. The standalone mode working with the i-TPMS app: Activation and Programming for sensors.

6. Supports unlimited programming for LAUNCH sensors to replace OE sensors.
7. Support multiple languages: English, French, German, Italian, Spanish, Portuguese, Korean, Japanese etc.


What is the Difference Between LAUNCH x431 i-TPMS and previous x431 TS GUN?

1. They are all support 315/433MHz sensors's activation, programming, relearning and diagnosis.

2. Difference 1: The original x431 ts gun must be conbine with the x431 series scanners, while the launch x431 i-TPMS can work standalone via i-tpms app in your Android phone.

3. Difference 2: x431 i-TPMS can not only be selected by car brand and model but can be selected by OE part number directly and faster, while the ts gun can only support be selected by car brand and model.

4. Difference 3: x431 i-TPMS support multiple online repair resources including Operating Skills, DTC Help, Tech Handbook, Repair Case, Tire Pressure Maintenance Database for you to diagnostic and repair.

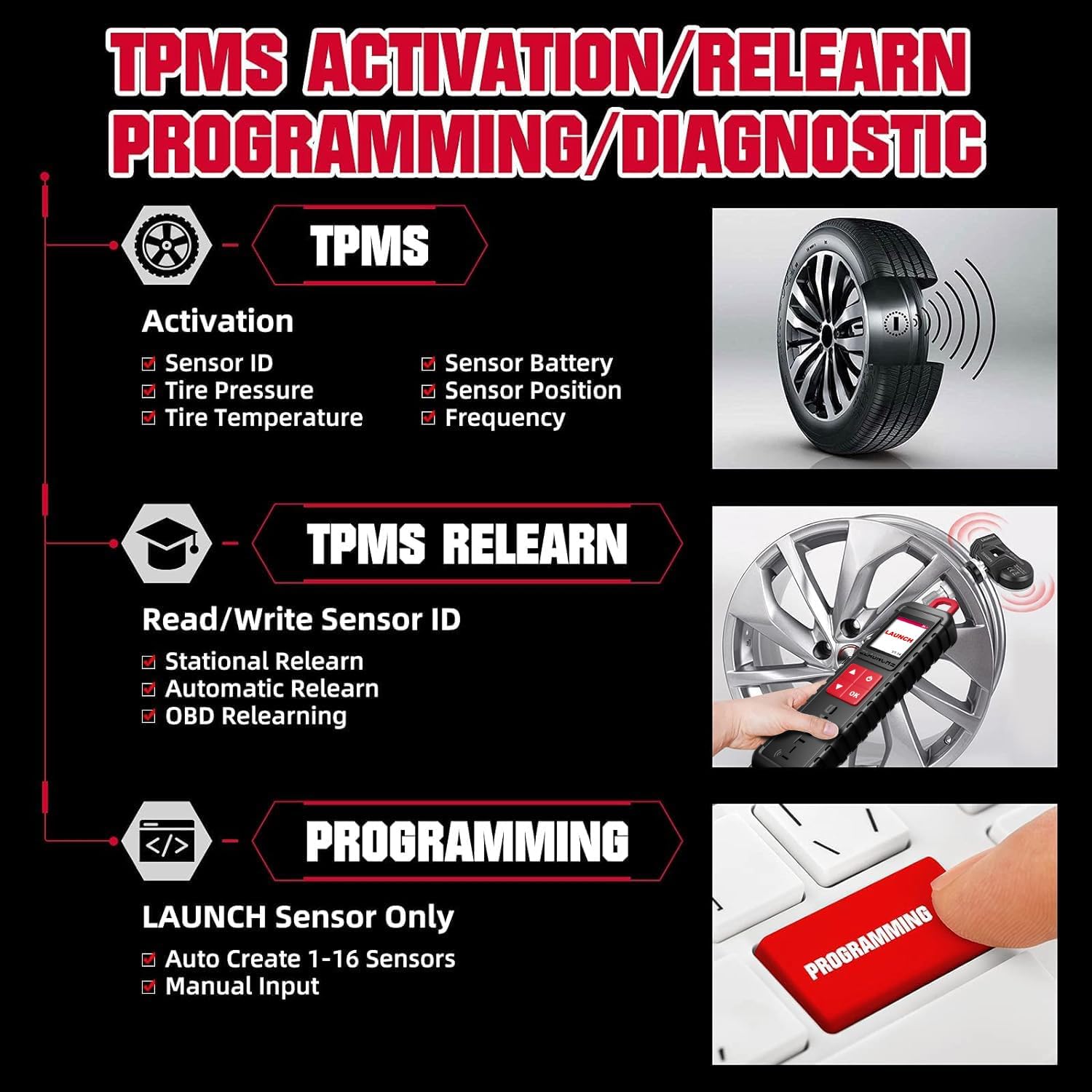

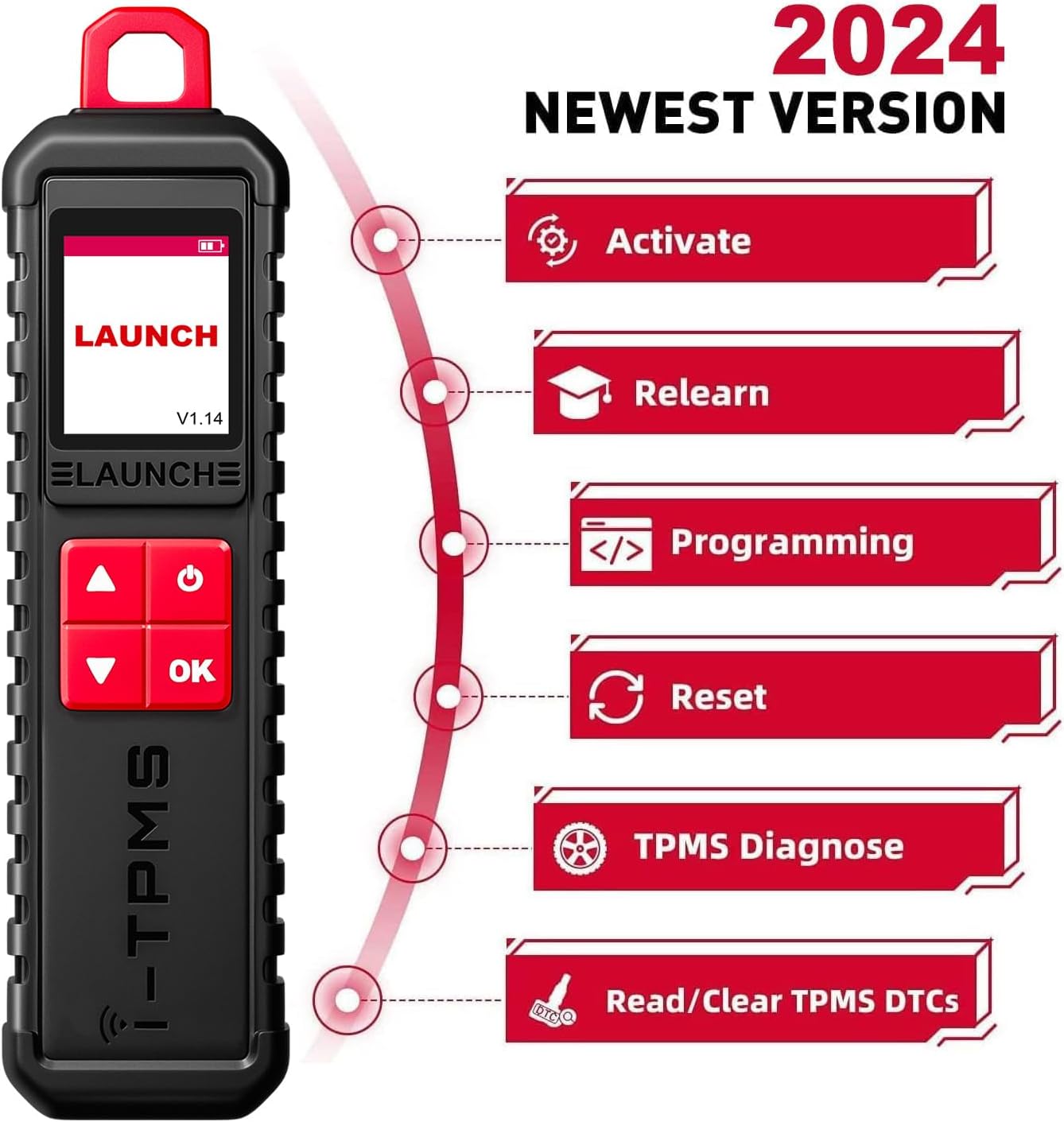

Complete TPMS Functions:

1. Activates all universal TPMS sensors.

2. Reads sensor data including sensor ID, tire pressure, temperature, battery condition ect.

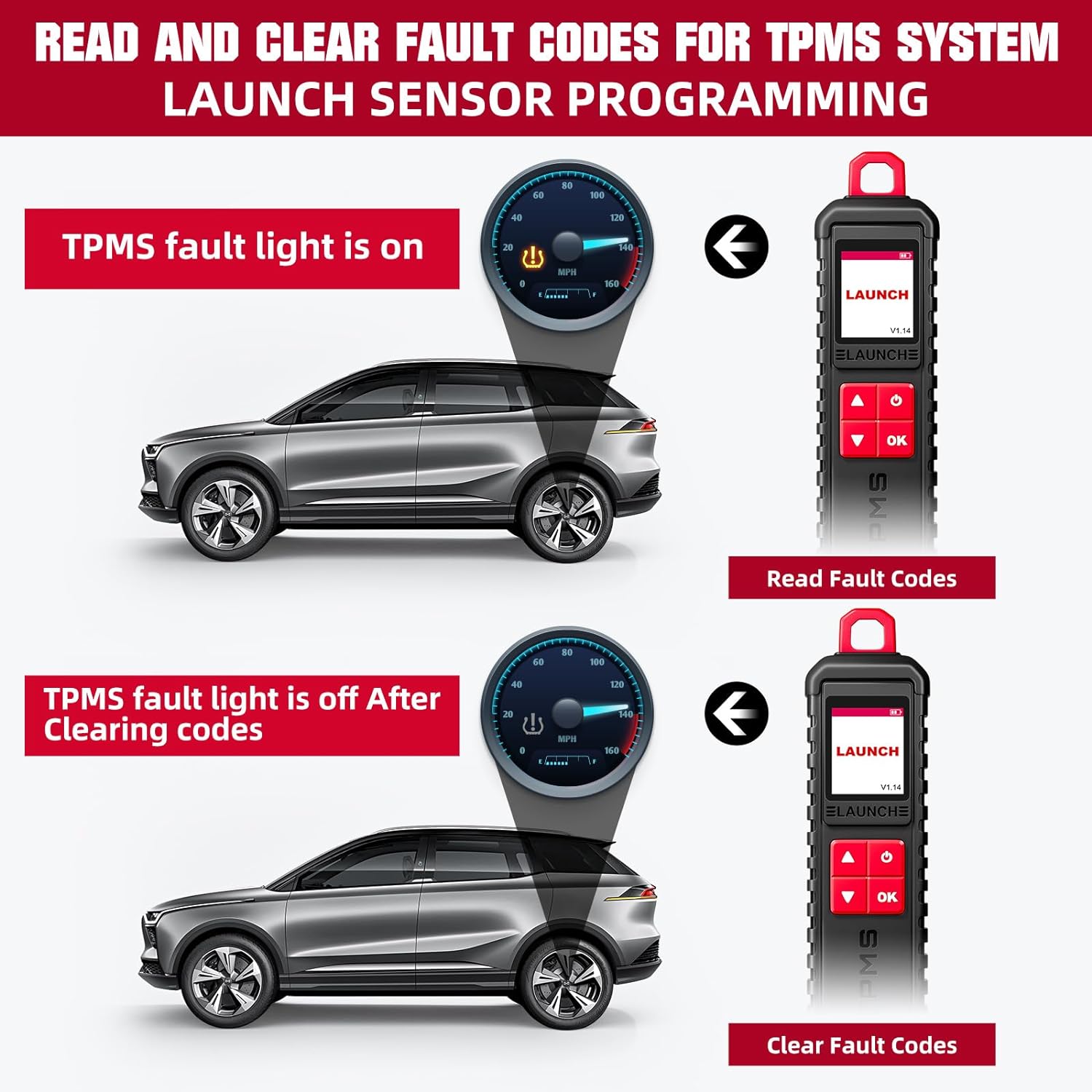

3. Read/Clear fault codes for tpms system, allows you clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint system faults;

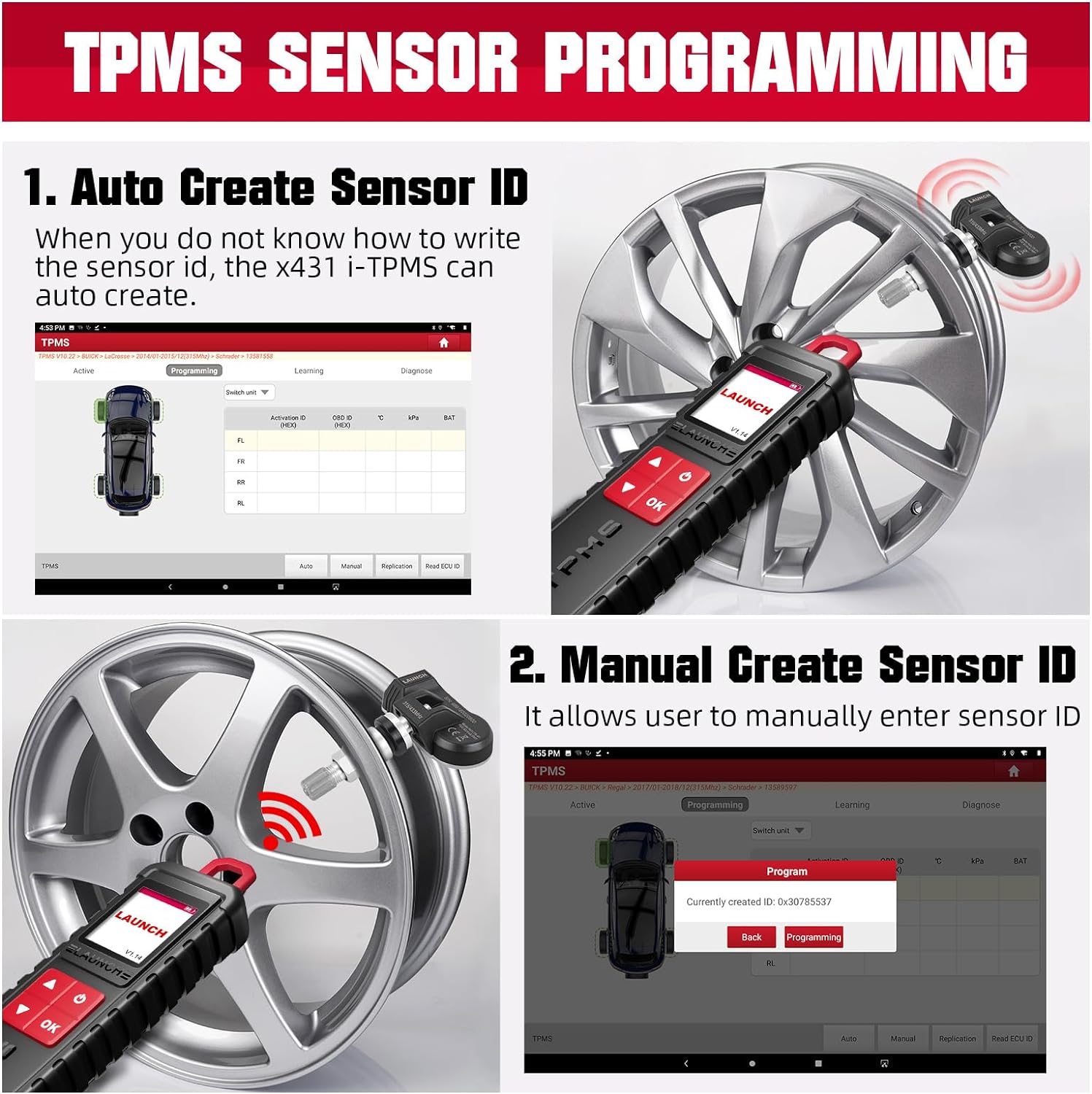

4 Modes to Program Launch Scanner:

1. Auto Create : user can generate the sensor ID by click auto button

2. Manual Input : x431 tsgun support manually input the original ID or other ID.

3. Copy by OBD: it needs to connect OBD cable to retrieve the sensor ID from the ECU.

4. Copy by Activation: it requires activate the original sensors first.

3 Ways to Relearn Sensors:

1. Stationary Relearn requires the vehicle be placed in the learning mode, and the follow the on-screen prompts to complete it.

2. Automatic Relearn, for some vehicles, can be completed by driving. Refer to the on-screen learning steps to do the operation.

3. OBD Relearn directly writes TPMS sensor IDs to the TPMS module via the OBD connector.To perform relearn by OBD, firstly activate all sensors, and then use the diagnostic tool together with the included VCI to complete the learning steps following the on-screen instructions.

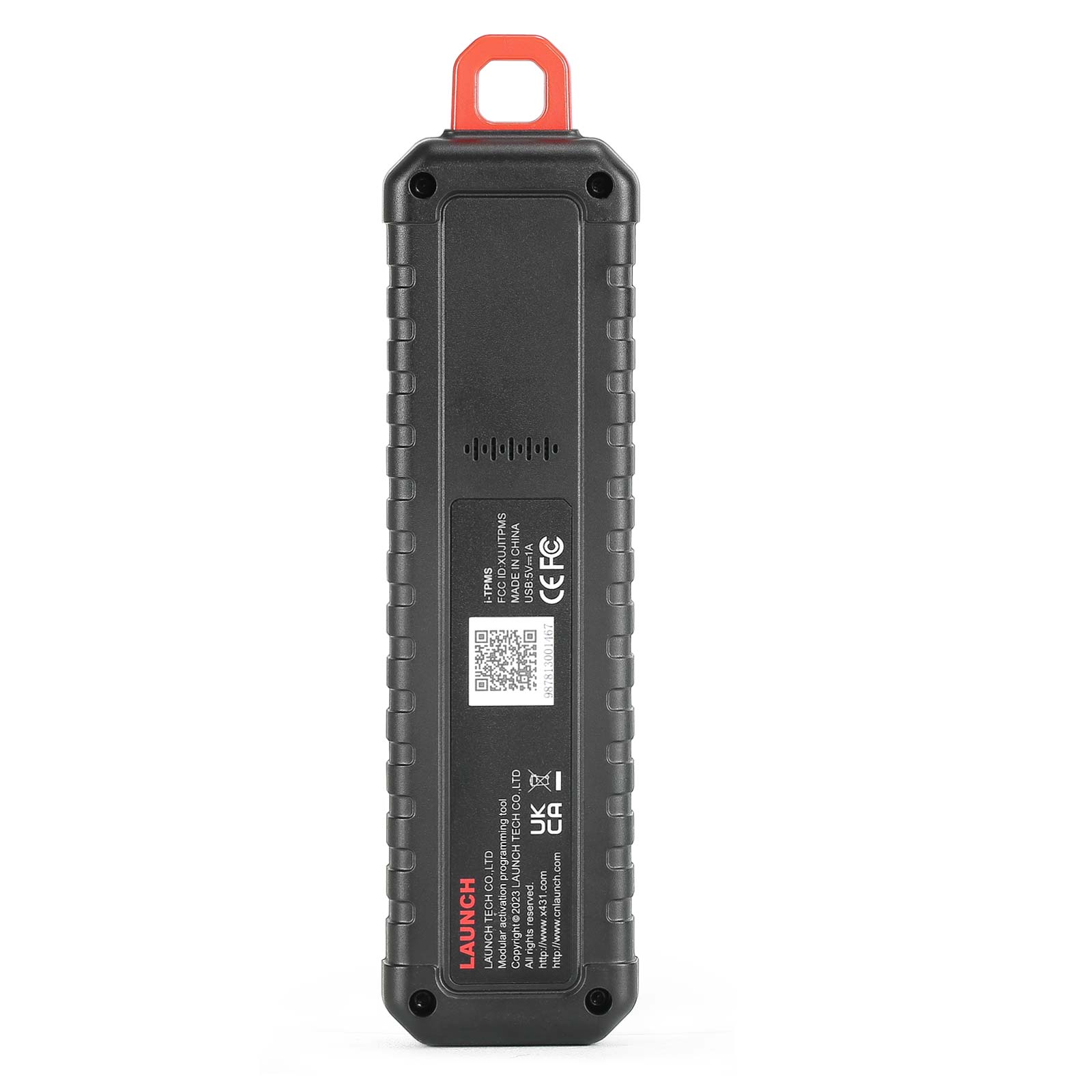

For Android system smartphone user, scan the following QR code or the QR code on the back of the i-TPMS device to download and install the i-TPMS app on the phone.

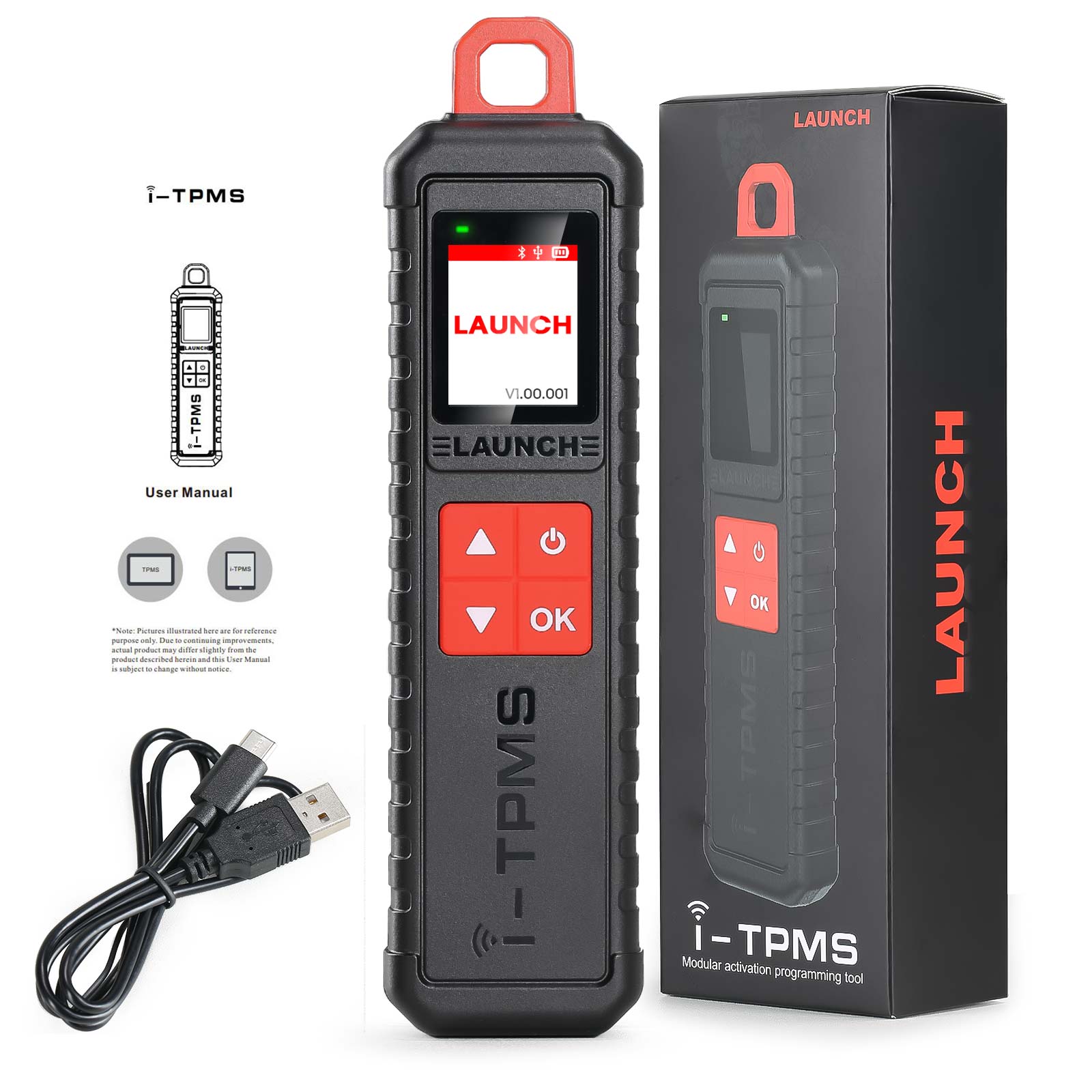

1pc x launch i-TPMS tool

1pc x charging cable

1pc x manual
