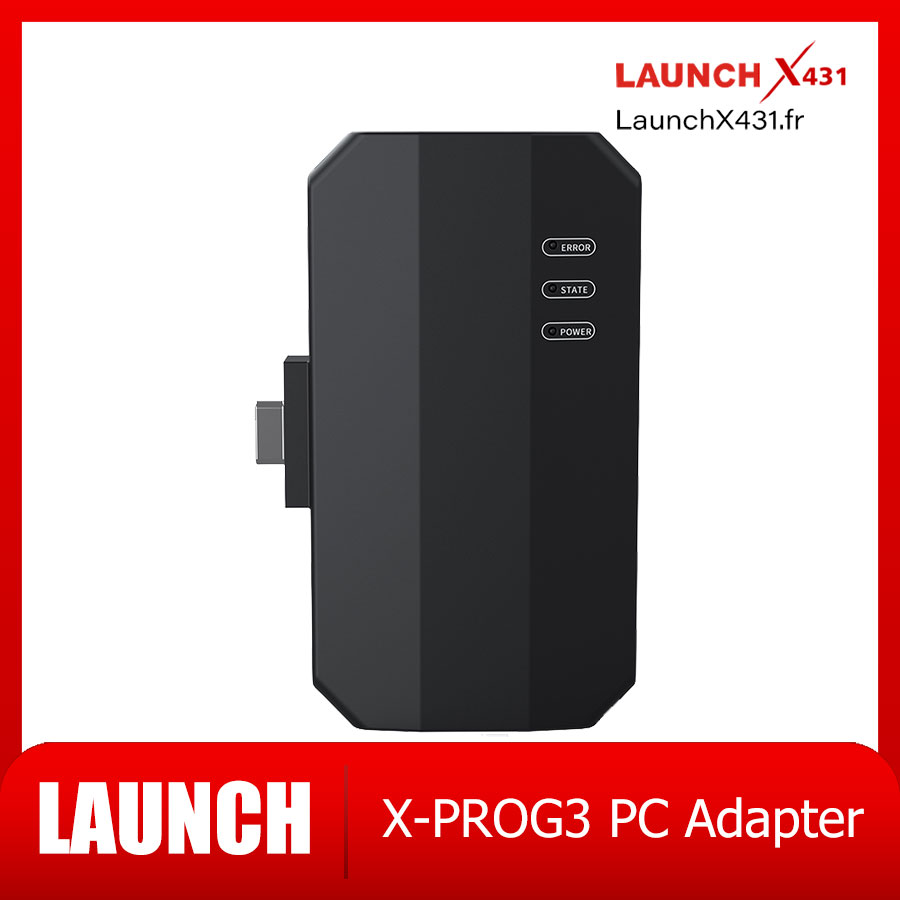

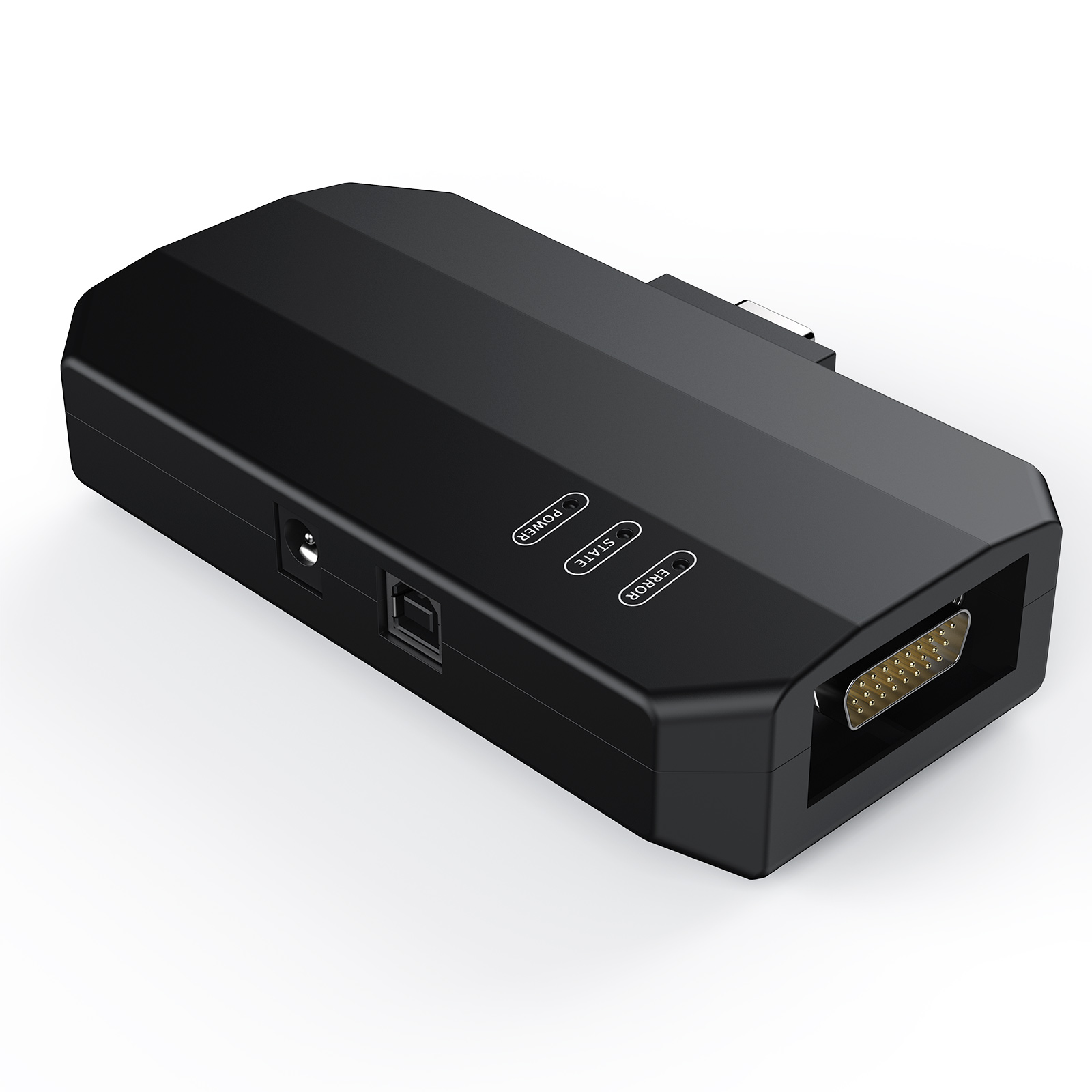

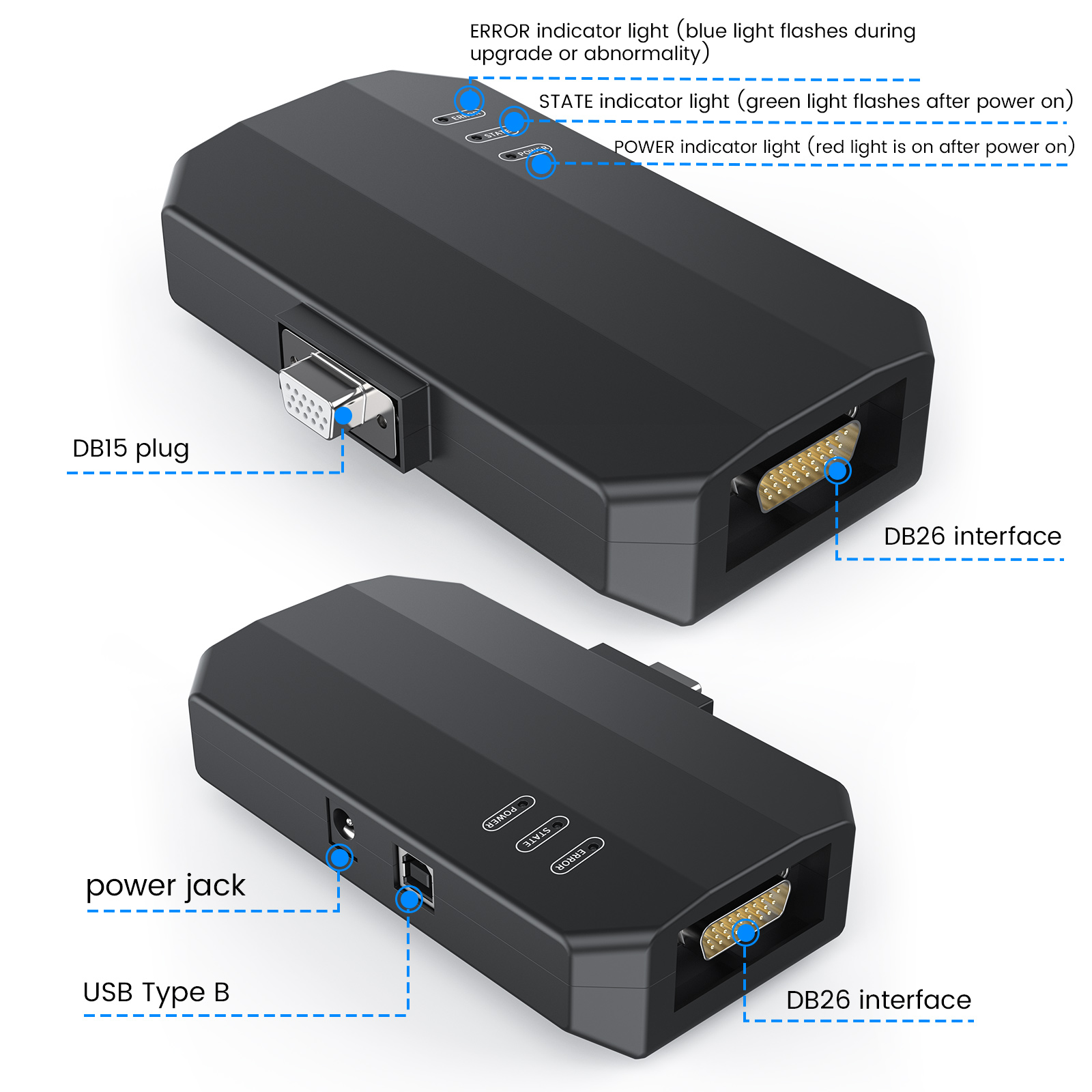

Launch X431 X-PROG3 PC Adapter ECU Programmer



Features:

1. Used in conjunction with X-PROG3 anti lift matching programmer

2. 2D menu, clear and easy to choose

3. Powerful search function

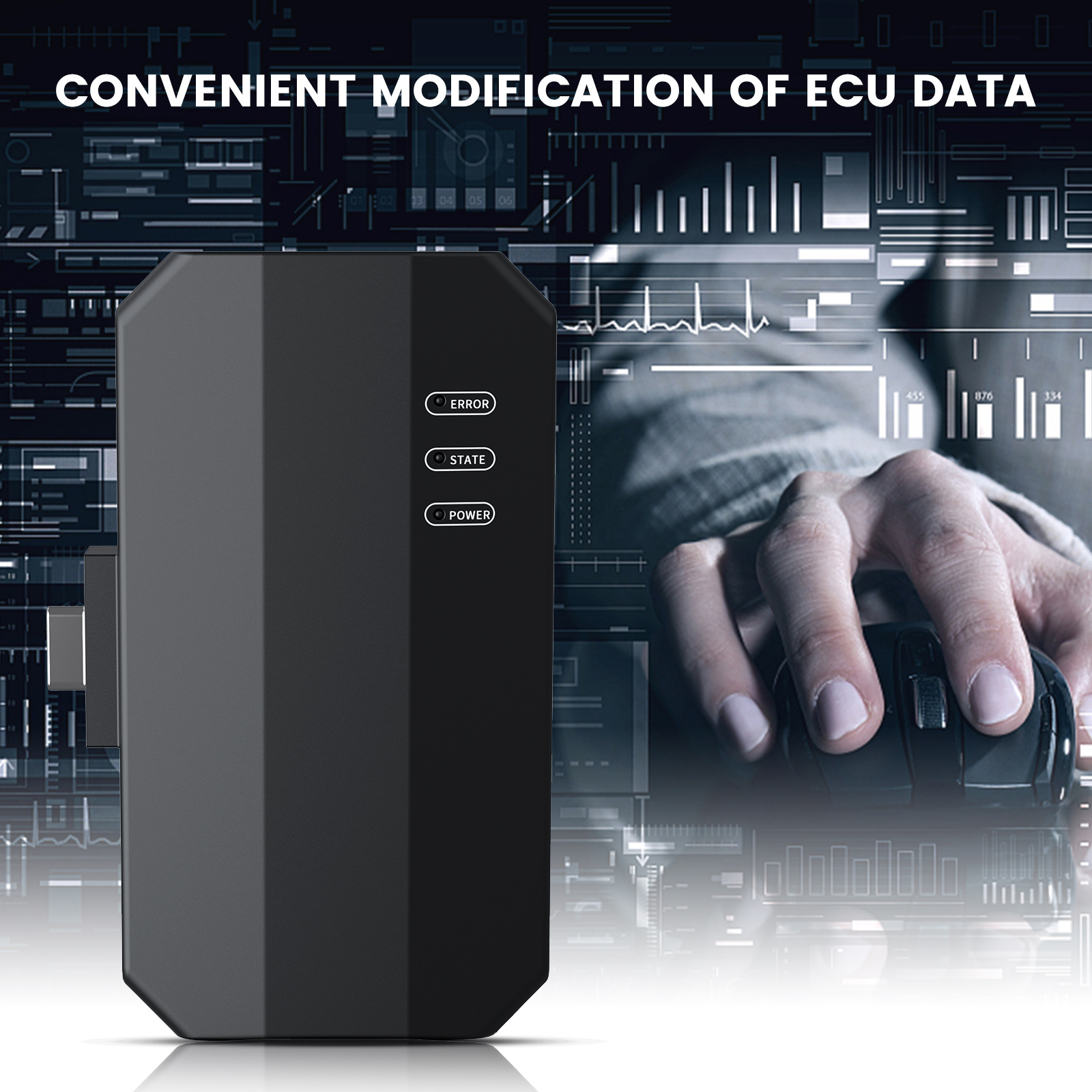

4. Convenient modification of ECU data

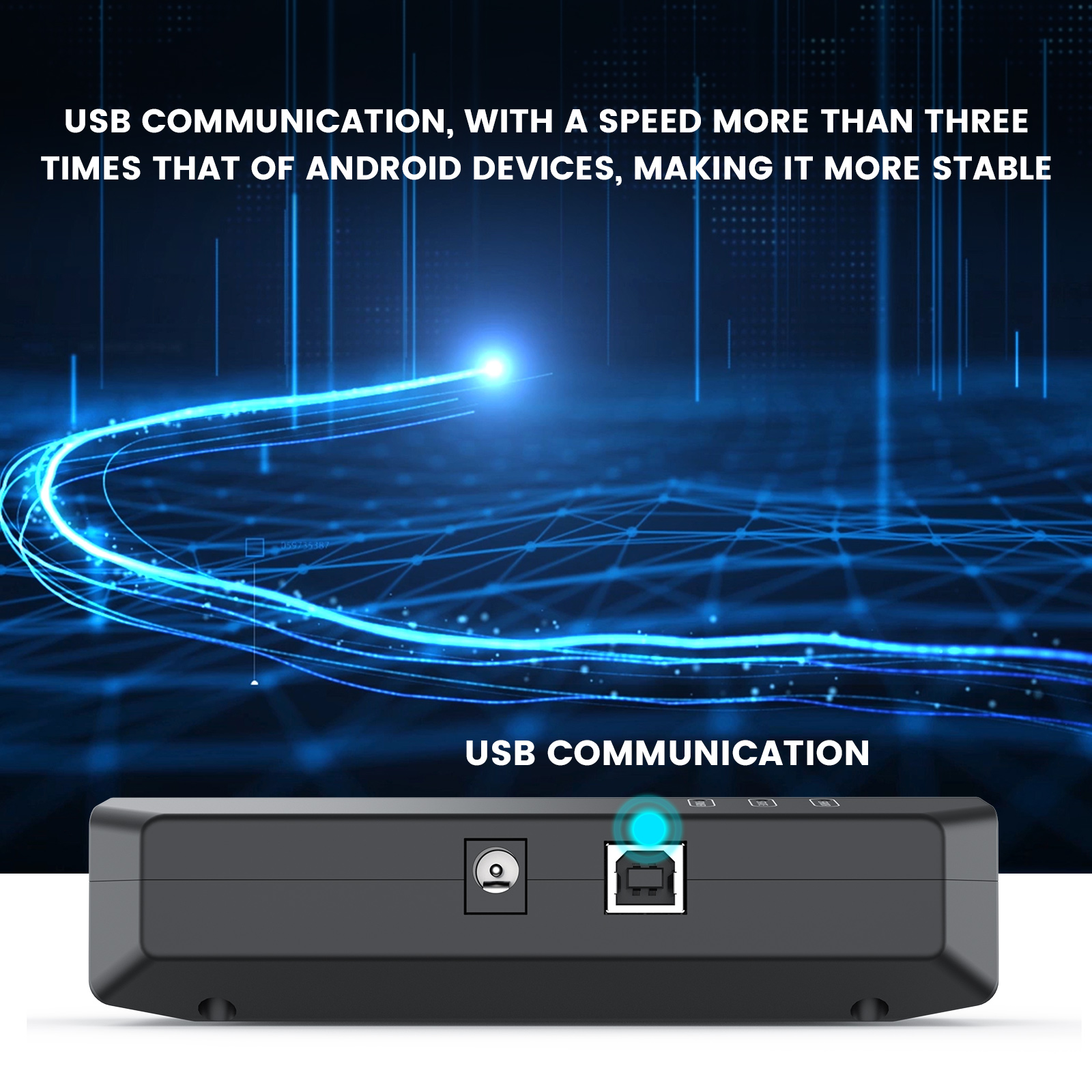

5. USB communication, with a speed more than three times that of Android devices, making it more stable

6. Easy to copy data

7. Support engine data validation function

8. One year free update, After one , you can buy this update subscription

PC Software Interface Description:

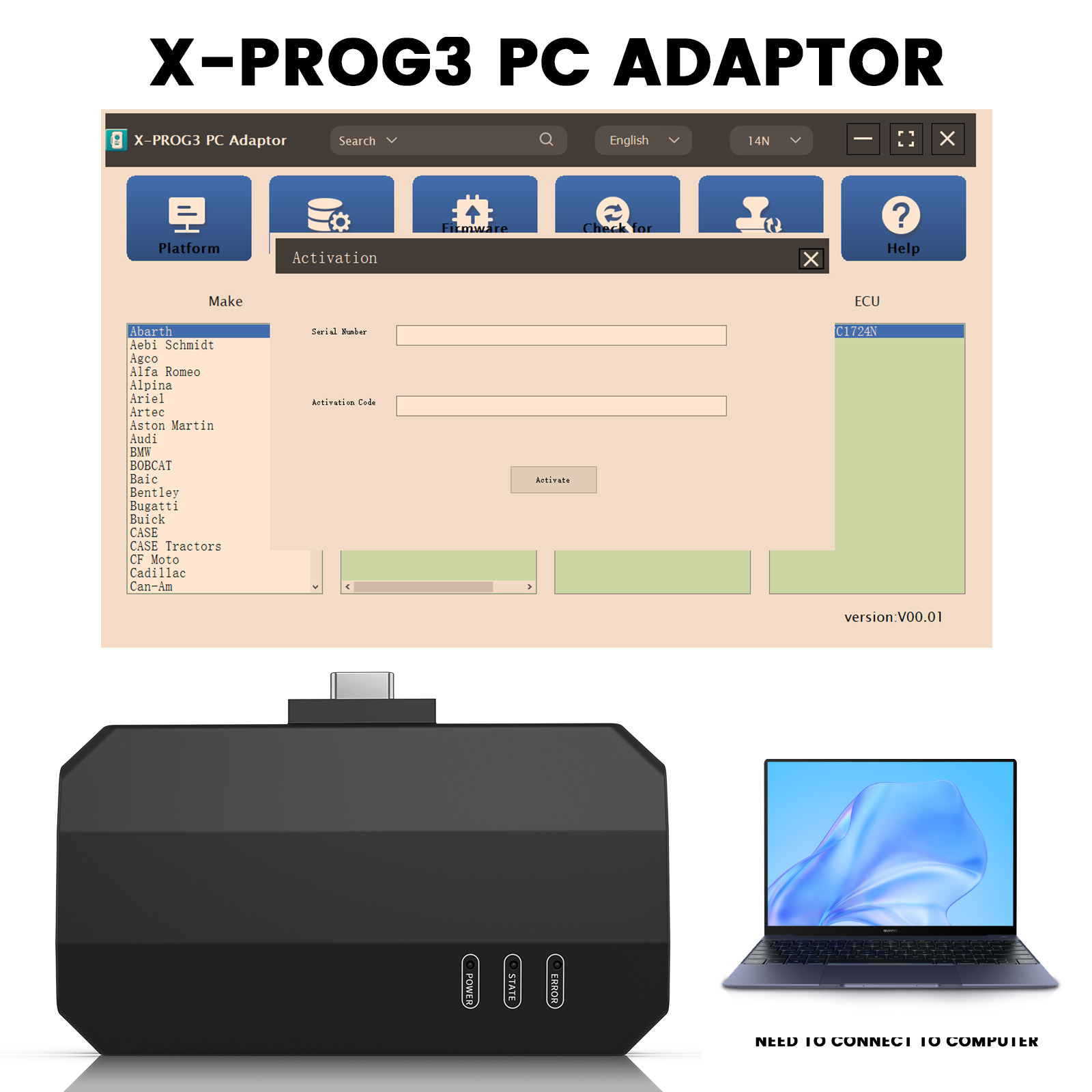

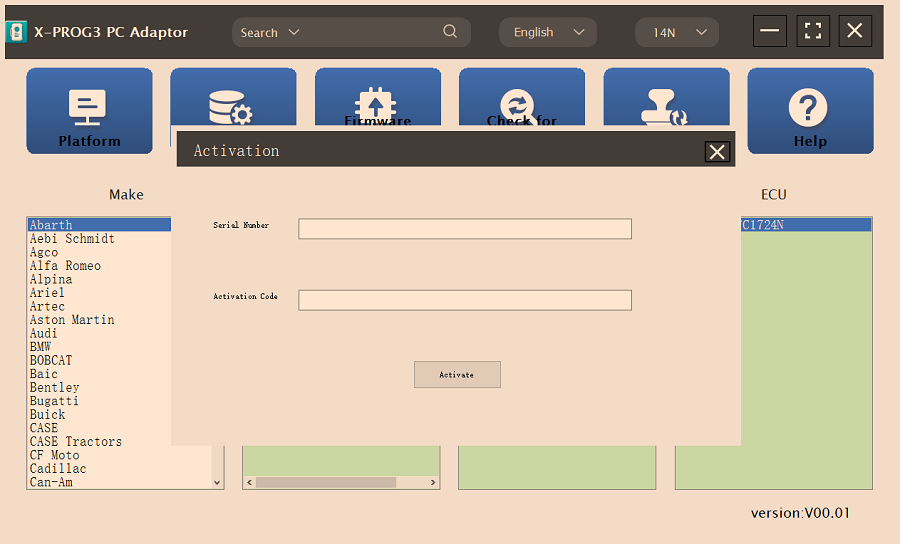

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once,    no need to activate it again later), as shown in Figure 1



I.ECU Data Reading/Writing

1. Obtain the related ECU.

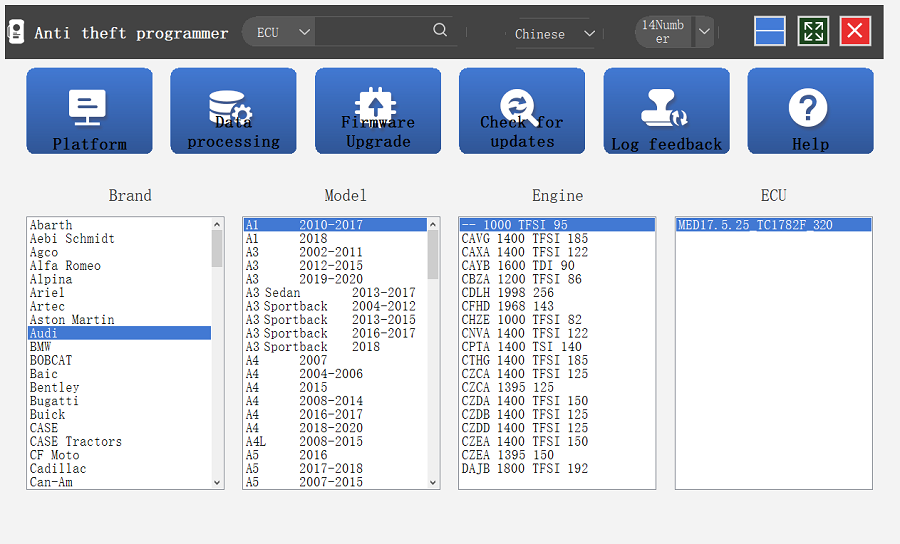

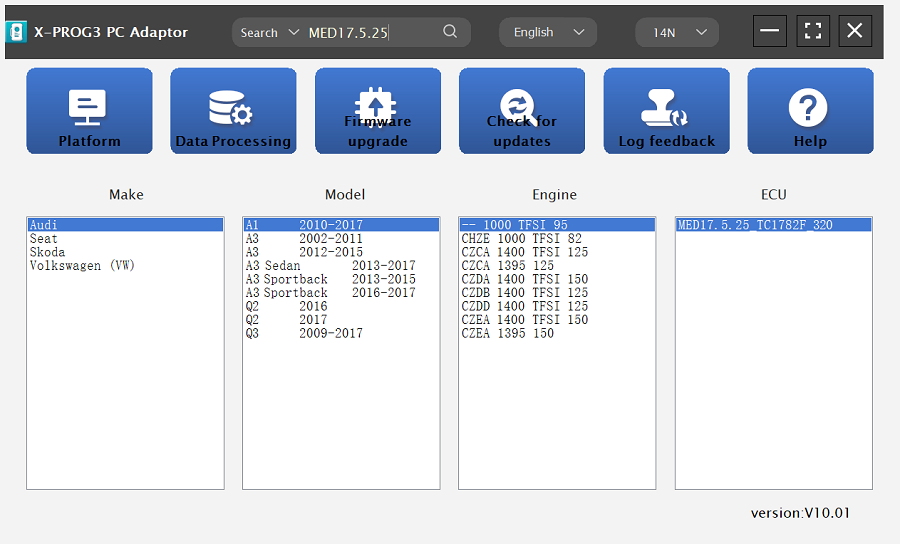

(1) Method 1: Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure 2.



(2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure 3.

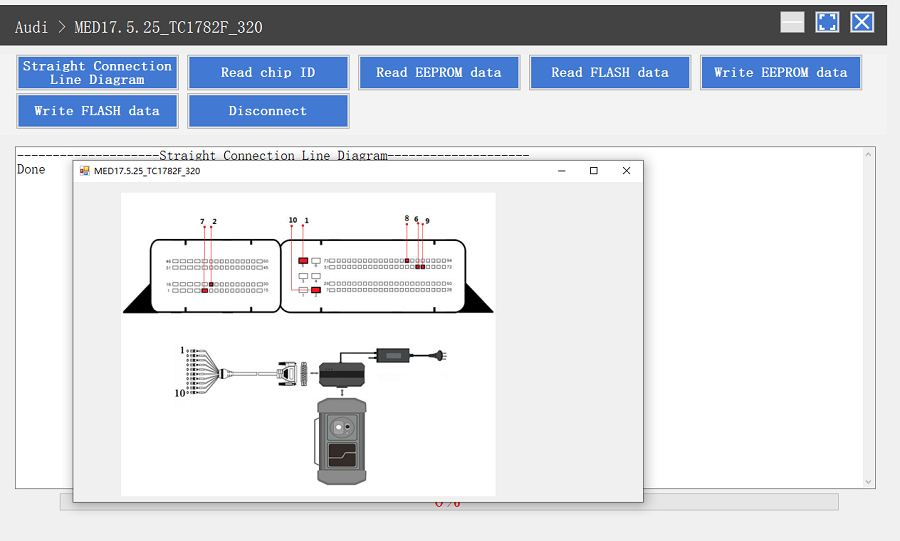

2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram, as shown in Figure 4.

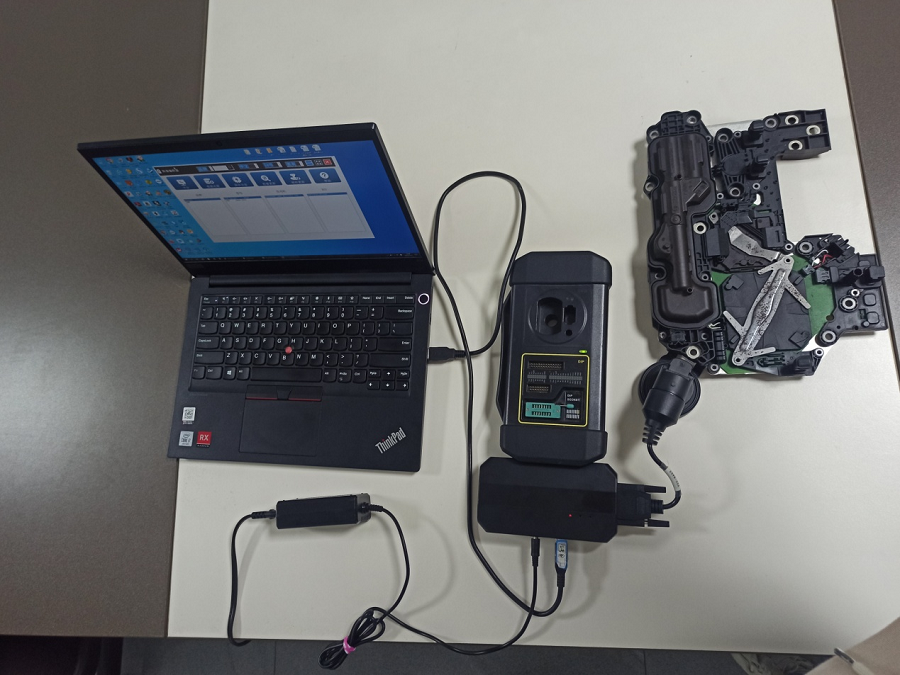

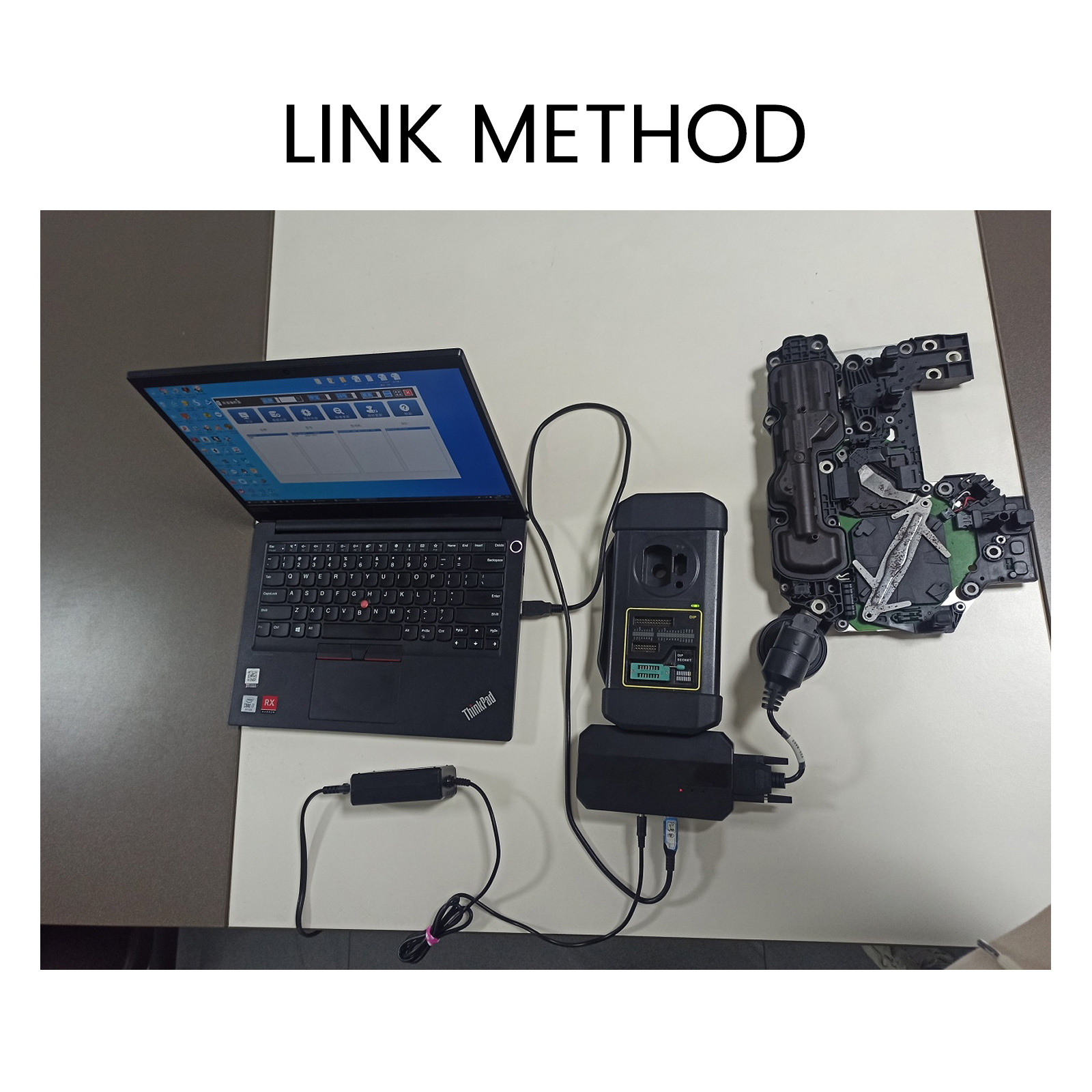

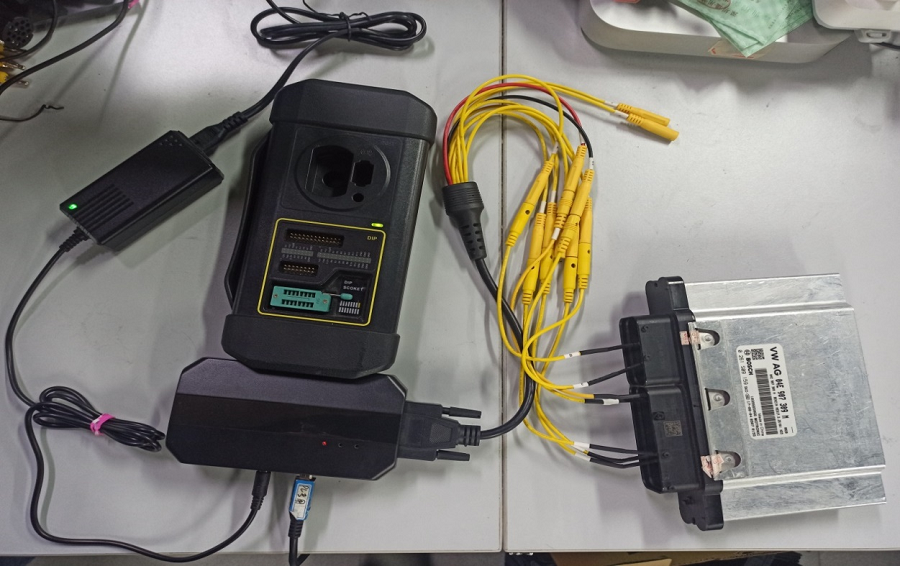

3. Connection: Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.

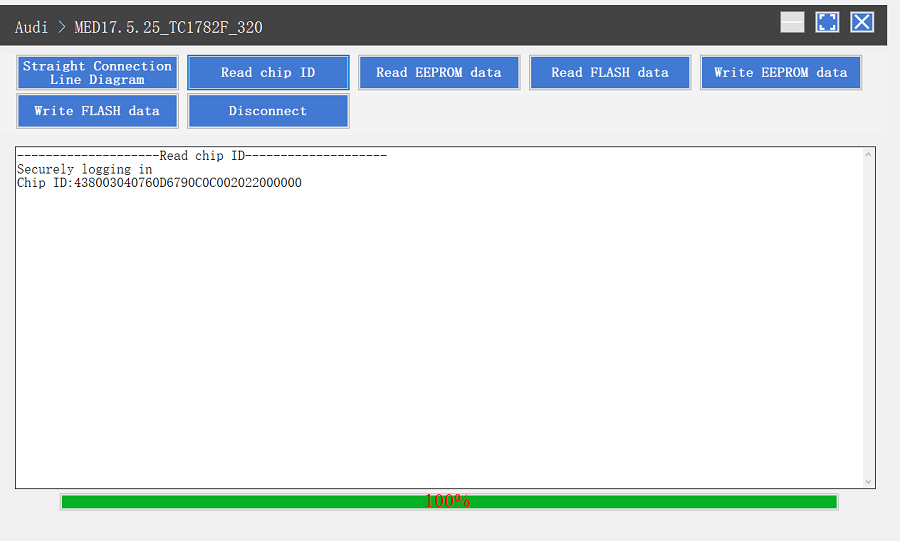

4. Read the chip ID, as shown in Figure 7.

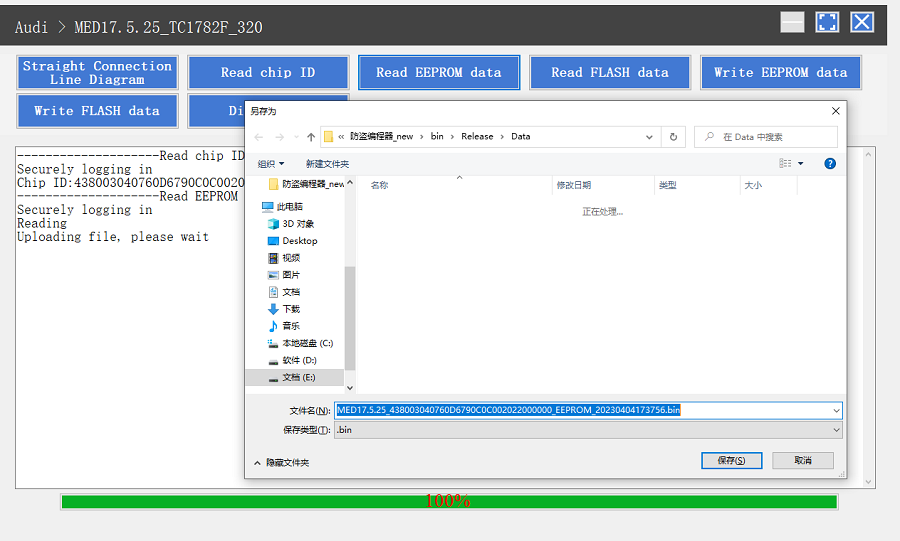

5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).

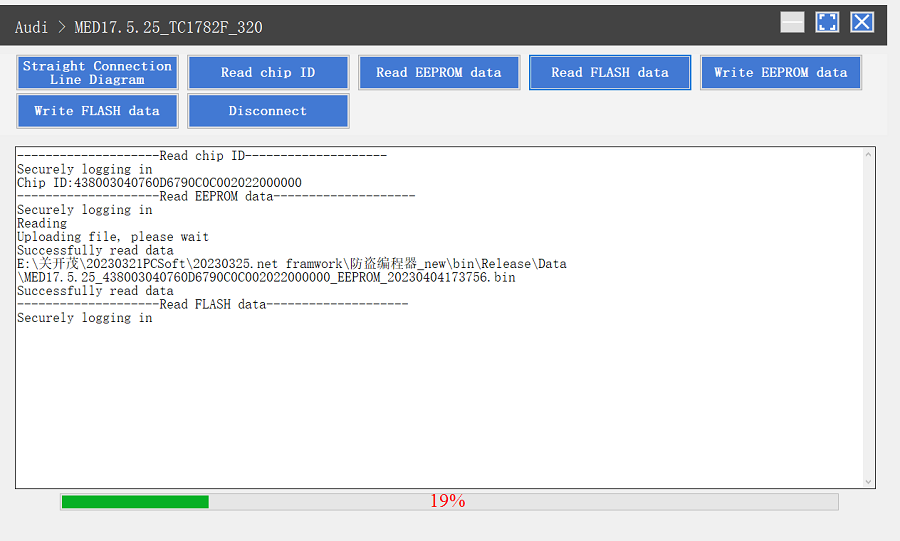

6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).

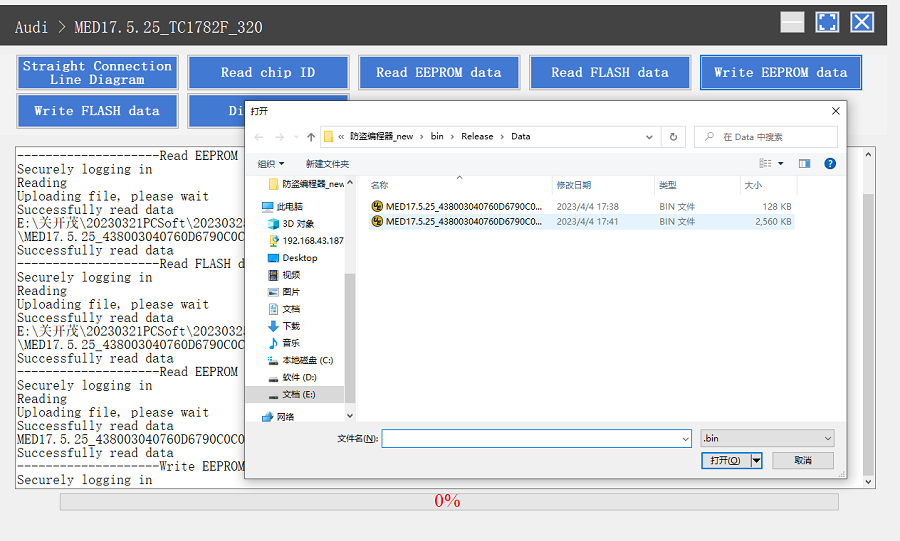

7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).



II. Data Processing

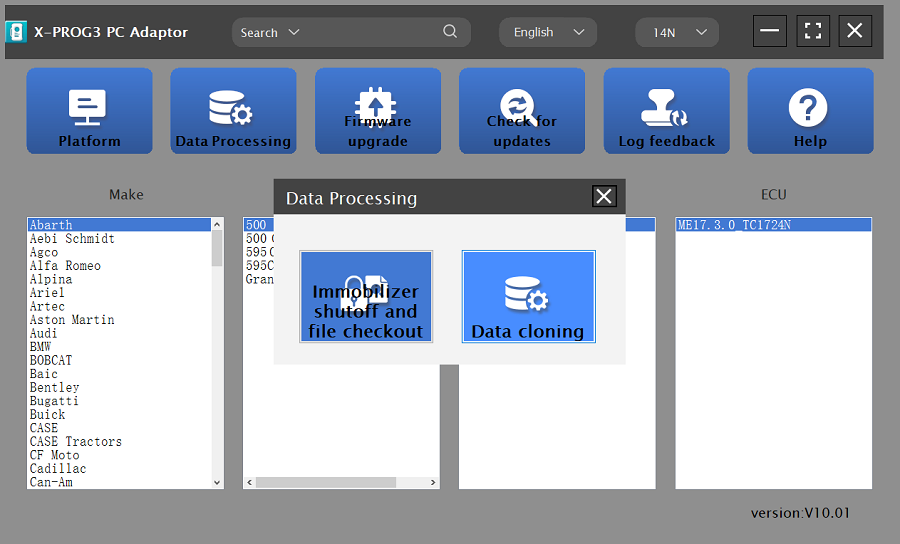

1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data, as shown in Figure 12.

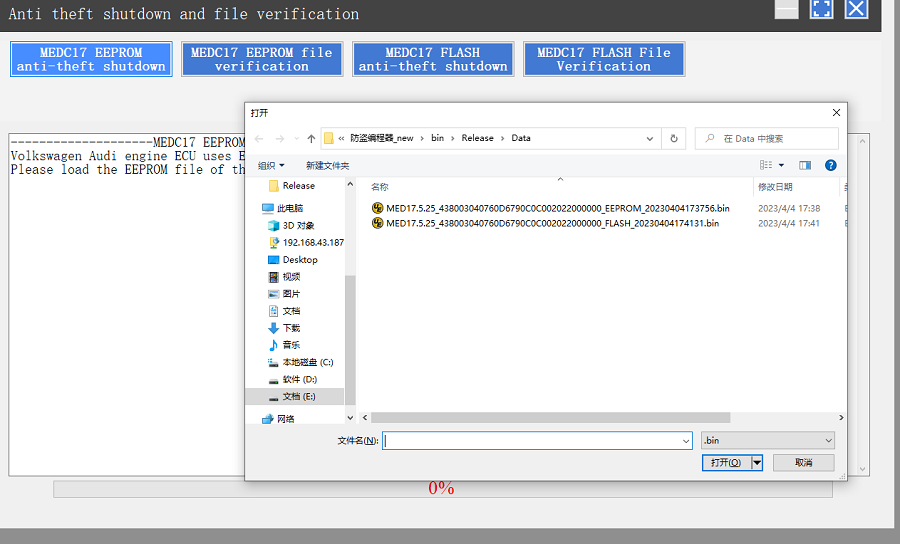

2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.



Support list:



Optional adapter accessories(Not included in the package):

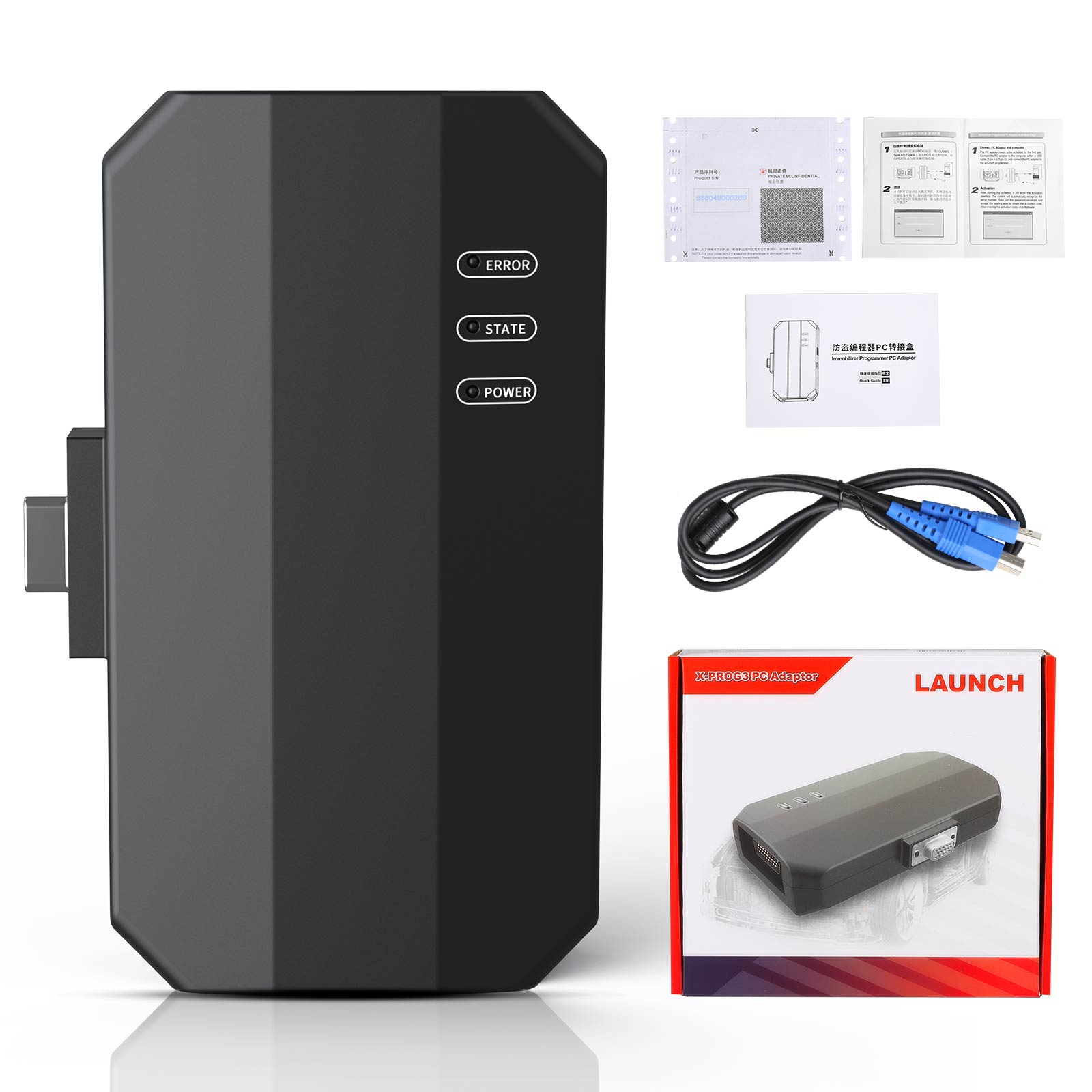

Package List:

1pc x Launch X431 IMMO Programmer  X-PROG3 PC Adaptor
1pc x USB Type-B Cable
1pc x quick start guide
