1. LAUNCH X431 S2-2 Sensor box module is specially developed for diagnosing/testing/simulating most vehicle sensor faults. With its help, users can easily and quickly diagnose and simulate the sensor to rapidly troubleshoot the ECU.
2. It can be compatible with LAUNCH X431 scanner, such as X431 V, X431 PROS, X431 PRO3S+, X431 PRO ELITE, X431 PRO5, X431 PAD V, X431 PAD VII etc.

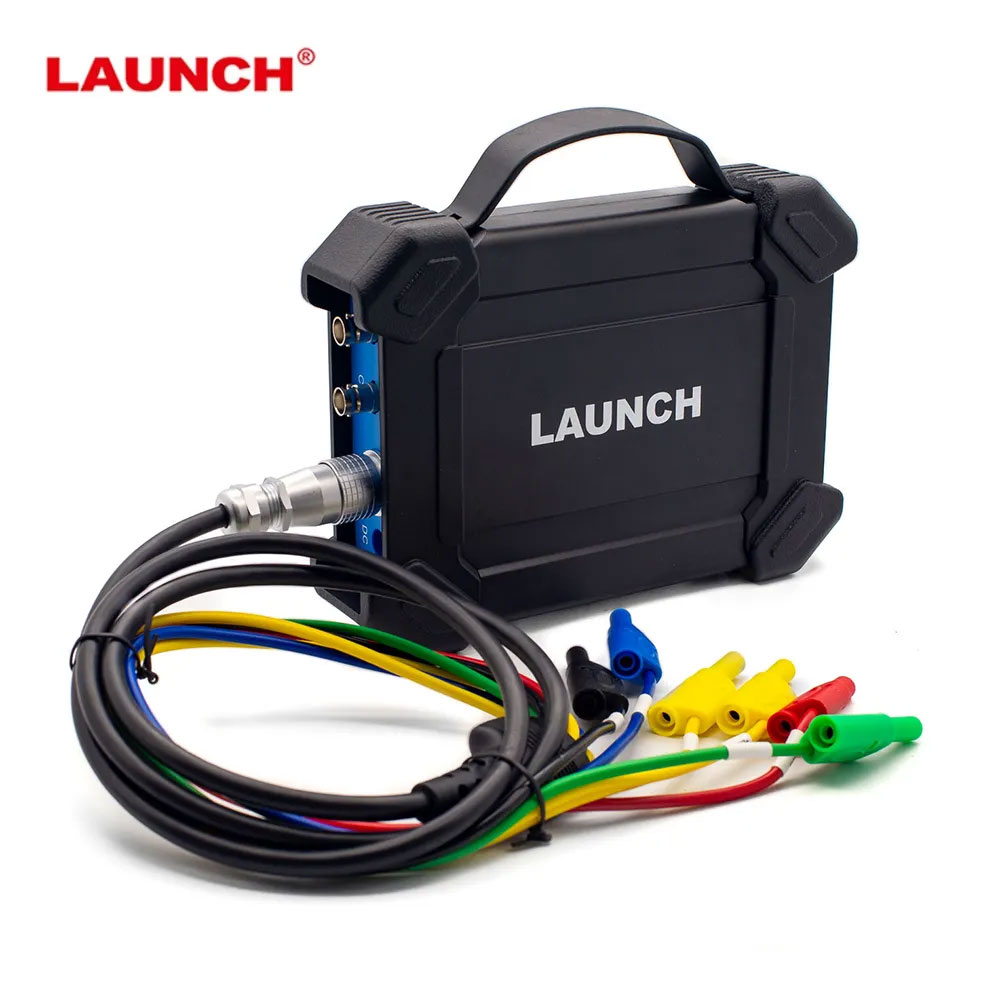

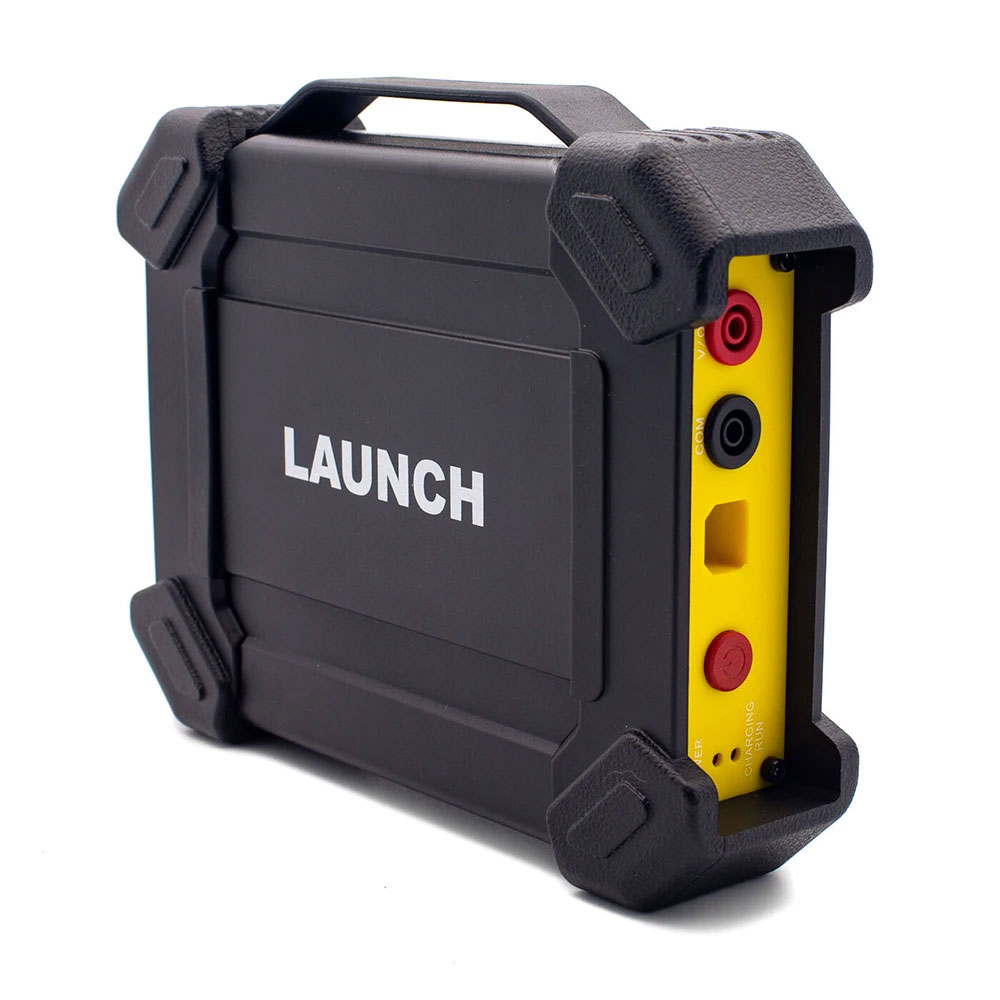

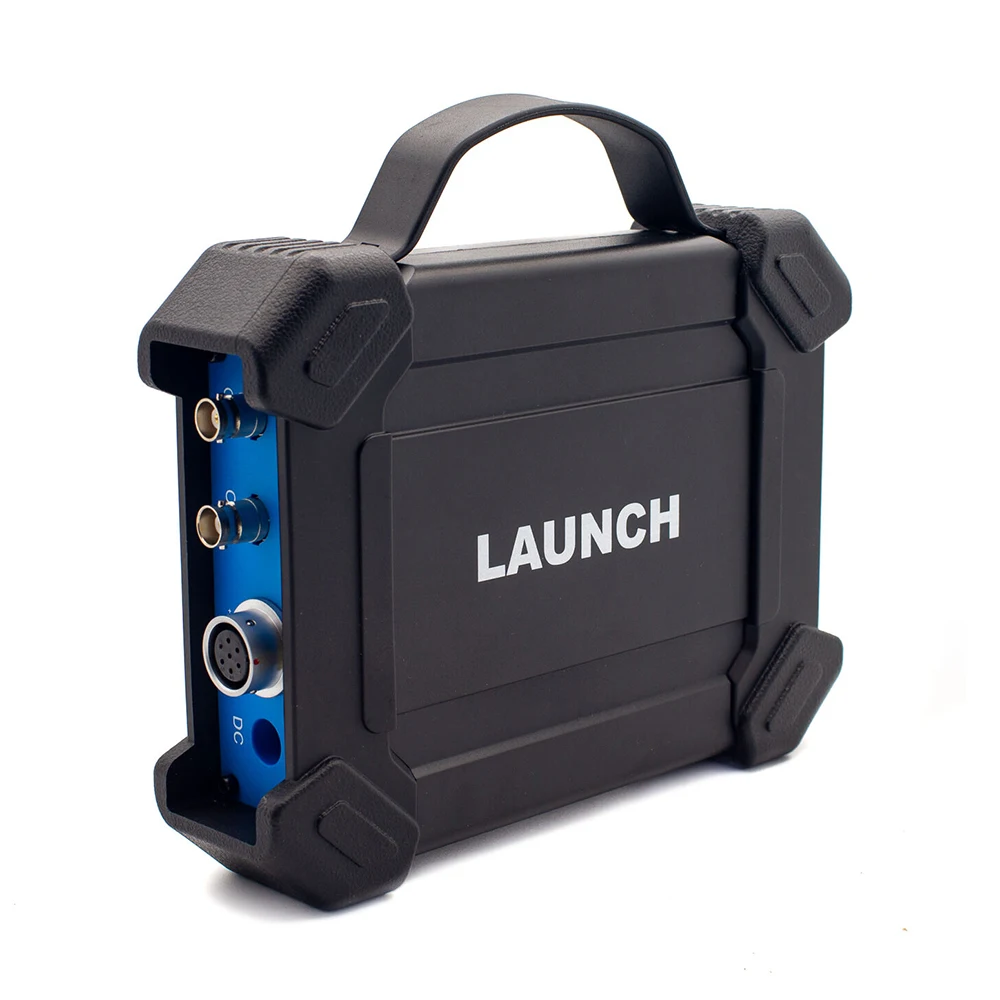

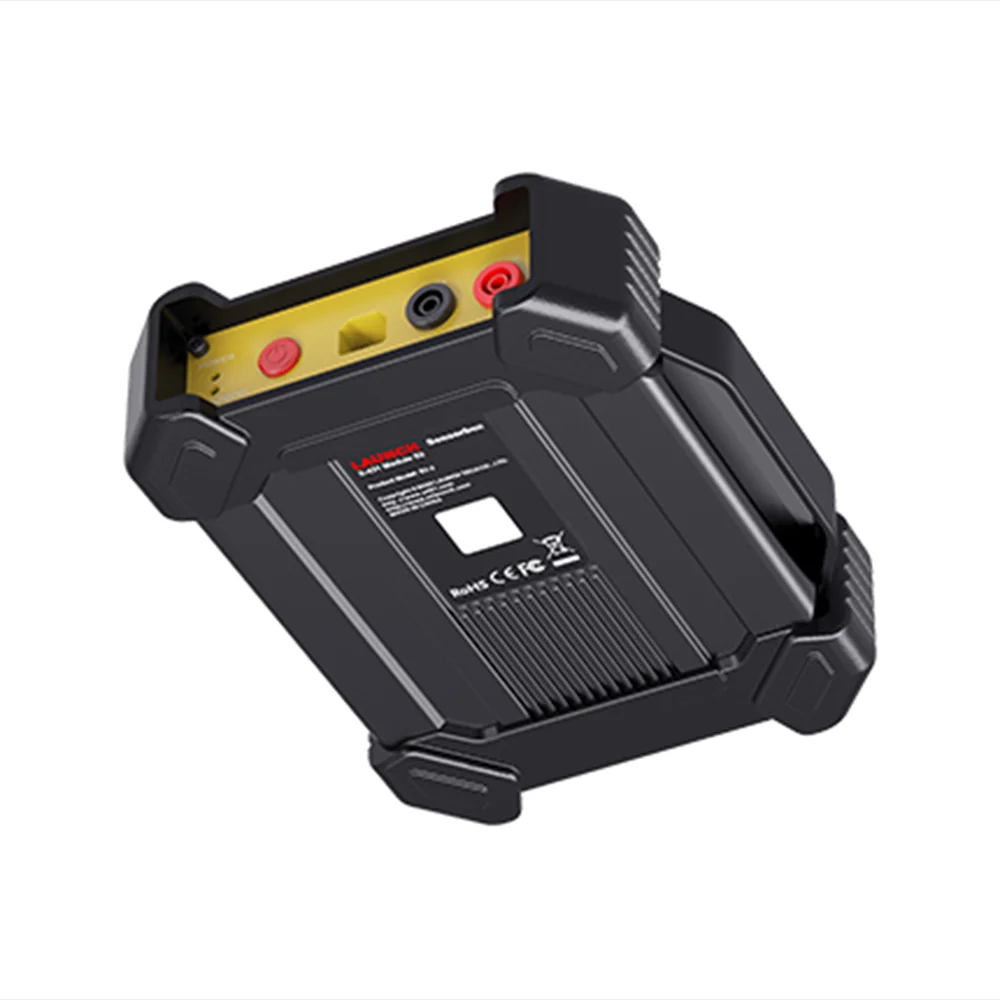

LAUNCH S2-2 Sensor box module is specially developed for diagnosing/testing/simulating most vehicle sensor faults. With its help, users can easily and quickly diagnose and simulate the sensor to rapidly troubleshoot the ECU.
At the same time, the LAUNCH S2-2 Sensor box module also supports the vehicle multimeter function. Through this function, users can test voltage, resistance, and capacitance. The function uses the same hardware device as the sensor module.
Development Backgrounds: The sensor is the signal input device of the vehicle ECU. It converts vehicle operating parameters such as vehicle speed, coolant temperature, engine speed, air flow, and throttle opening into electrical signals and sends them to the vehicle ECU. Then, the vehicle ECU adjusts the engine running status to maintain the engine in optimal condition.
Launch X431 S2-2 SensorBox Features: 1. Check the ECU itself works or not
2. It supports manual write the waveform data
3. Simulate working condition of sensors without replacing parts
4. Simulate some special working condition of sensors without replacing parts
5. Be used as Multimeter to measures resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.

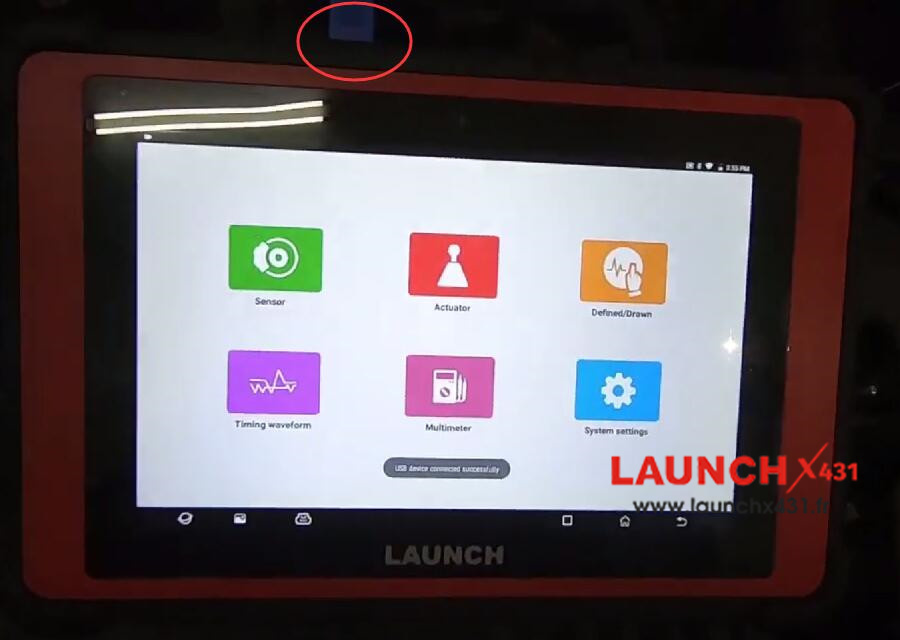

6. One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.
7. It can be compatible with LAUNCH X431 scanner, such as
X431 V 5.0 (PRO), X431 V+ 5.0 (PRO3), X431 PROS, X431 PRO3S+, X431 PRO ELITE, X431 PRO5, X431 PAD V, X431 PAD VII etc.
Note: X431 V 4.0 and X431 V+ 4.0 do not support S2-2 SensorBox. Launch S2-2 SensorBox Functions: LAUNCH S2-2 sensor box mainly includes 'Sensor', 'Actuator', 'Defined/Drawn', and 'Timing Waveform'.
Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.

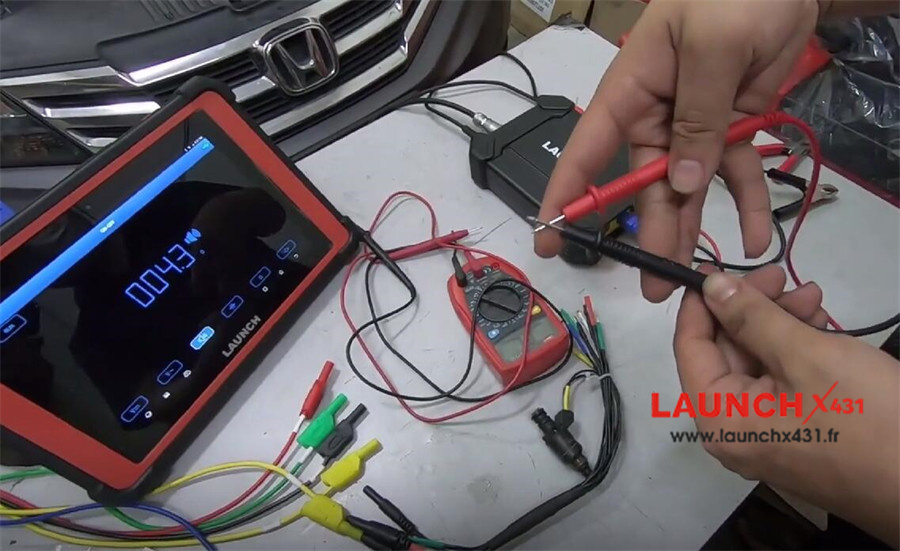

Multimeter: Through this function, users can test voltage, resistance, and capacitance.
Defined Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
Frequency: Set the frequency of the selected waveform.
Amplitude: Set the amplitude of the selected waveform.
Offset: Set the offset of the selected waveform.
Phase: Set the phase of the selected waveform.
Duty cycle: Set the duty cycle of the selected waveform.
Signal sync: Can cause CH1 and CH2 to output signals at the same time.
Hand-drawn Total frame: 1-3 (optional). Indicate the total number of output points
Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
Edit frame: You can edit a single frame or edit all
Waveform: You can select a preset waveform and place it in the hand-drawing area
Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
Amplitude: Amplitude of the output waveform
Offset: Offset of the output waveform
How to Use LAUNCH X431 S2-2 Sensor Box Oscilloscope and X431 Tool?

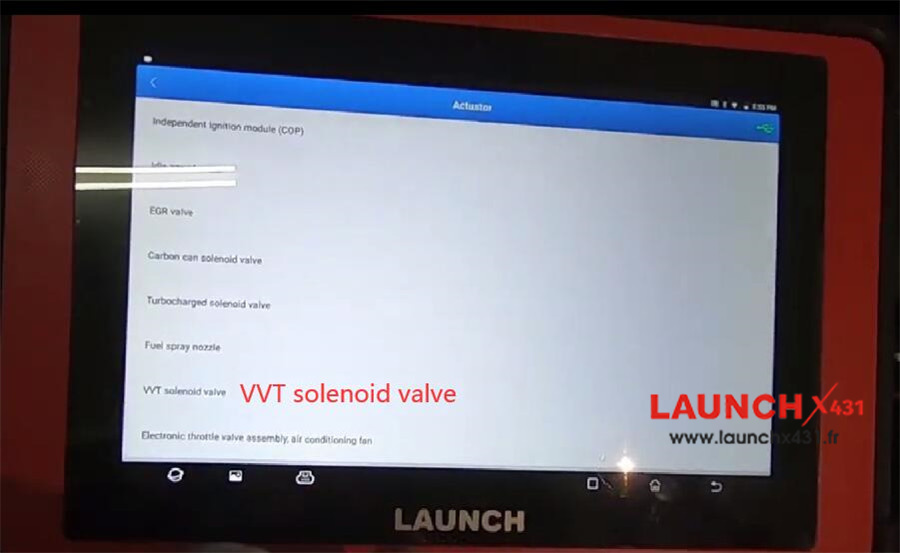

- Function 1: Test Actuator

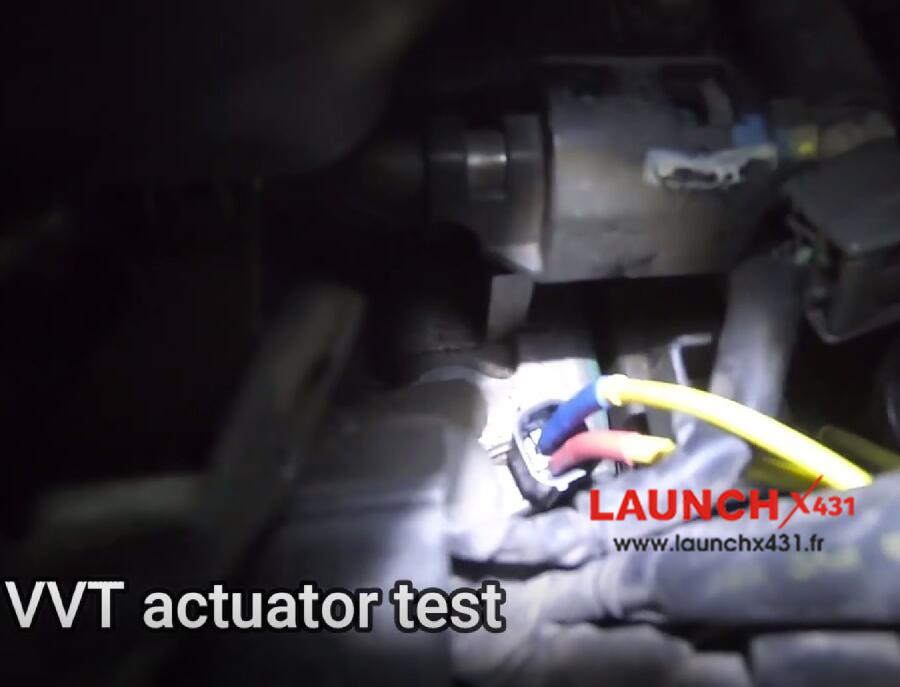

Provide sensor voltage to operate & test actuator injector, VVT actuator, solenoid valve.

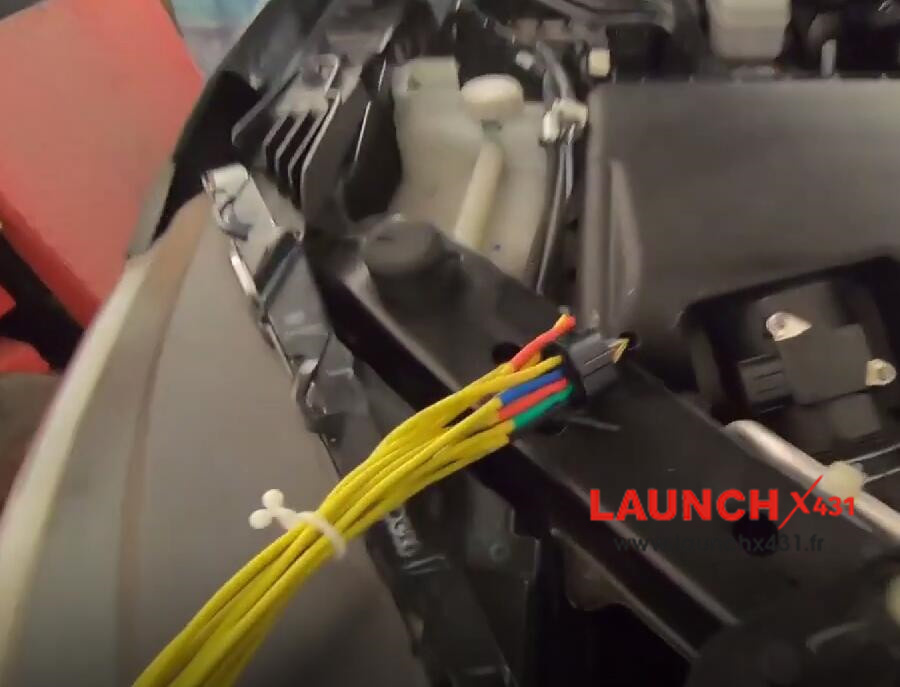

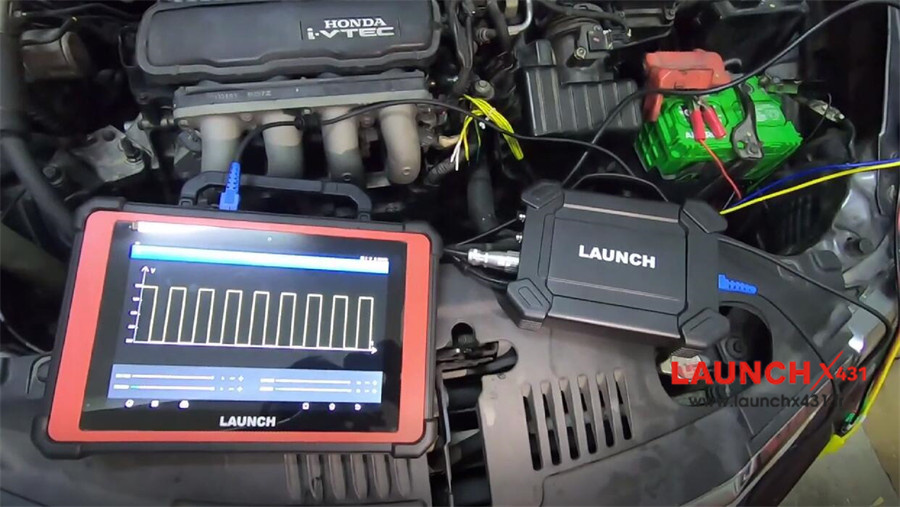

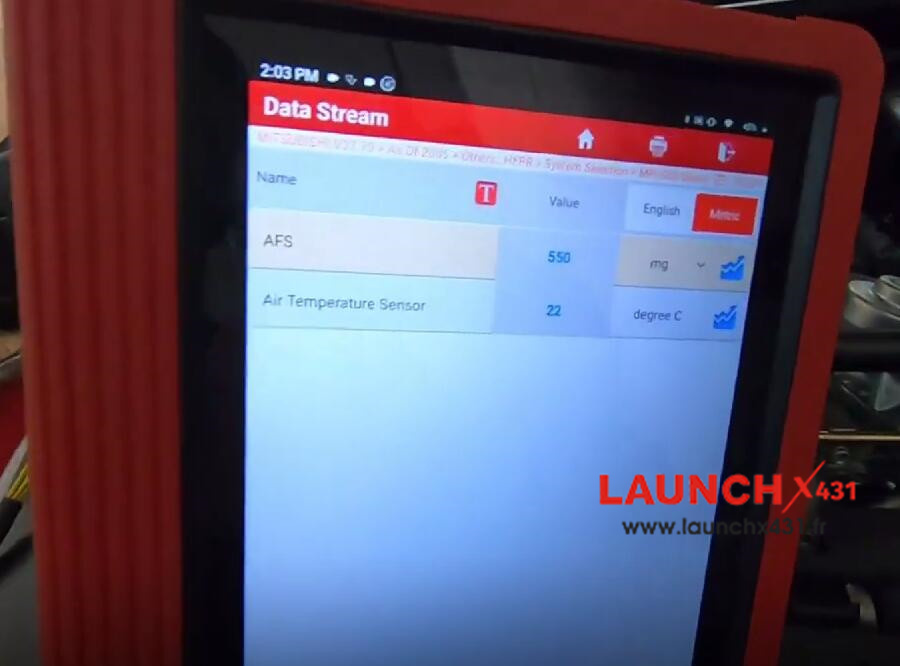

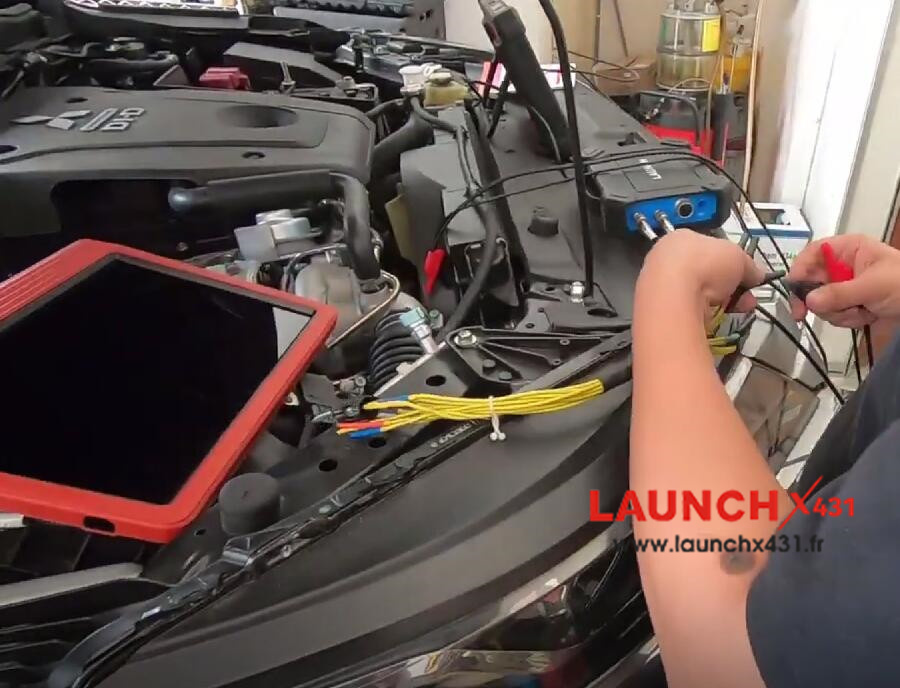

Function 2: Simulate sensor waveform for ECU Troubleshoot the car without replacing the sensor.
Easy to check ABS speed sensor, crank & cam sensor, Temp sensor...
Function 3: Multimeter Allow you to troubleshoot with 1 tool
->>>
Click here to check the detailed operation guide. Technical Parameters: | Parameter | Range |
| Number of channels | 2 |
| Precision | 1 % |
| Amplitude range | 0~20V |
| Max output current | 20mA |
| Predefined frequency range | 0 – 20 kHz |
| Square wave signal pulse frequency | 0~15KHz |
| Square wave signal duty cycle | 0~100% |
| Power supply | Simulator sensor output/max current 20mA (output is powered by battery) – Drive solenoid, ignition coil/output current 2A (external power supply) |
| USB | USB2.0 Type B (with charging and power supply function/5V) |
| DC Voltage simulation | Support |
| Fixed Frequency simulation | Support |
| Predefined waveform simulation | Support |
| Hand-drawn waveform simulation | Support |
| Signal generator interface | 2 |
| External power supply port | 1 |
| Solenoid interface | 1 |
| Multimeter interface | 2 |
| Operating temperature range | 0℃~50℃ |
| Storage temperature range | -30℃~70℃ |
| Certificate | CE, FCC, RoHS |
Multimeter: | Parameter | Range |
| DC voltage | 0 V – 700 V |
| AC voltage | 0 V – 700 V |
| Resistance | 0 Ω – 40 MΩ |
| Capacitance | 0 F – 100 µF (maximum 30 s measurement time) |
| Diode | 0 V – 1,5 V |
| Continuity detection | Sounds below 30 Ω |

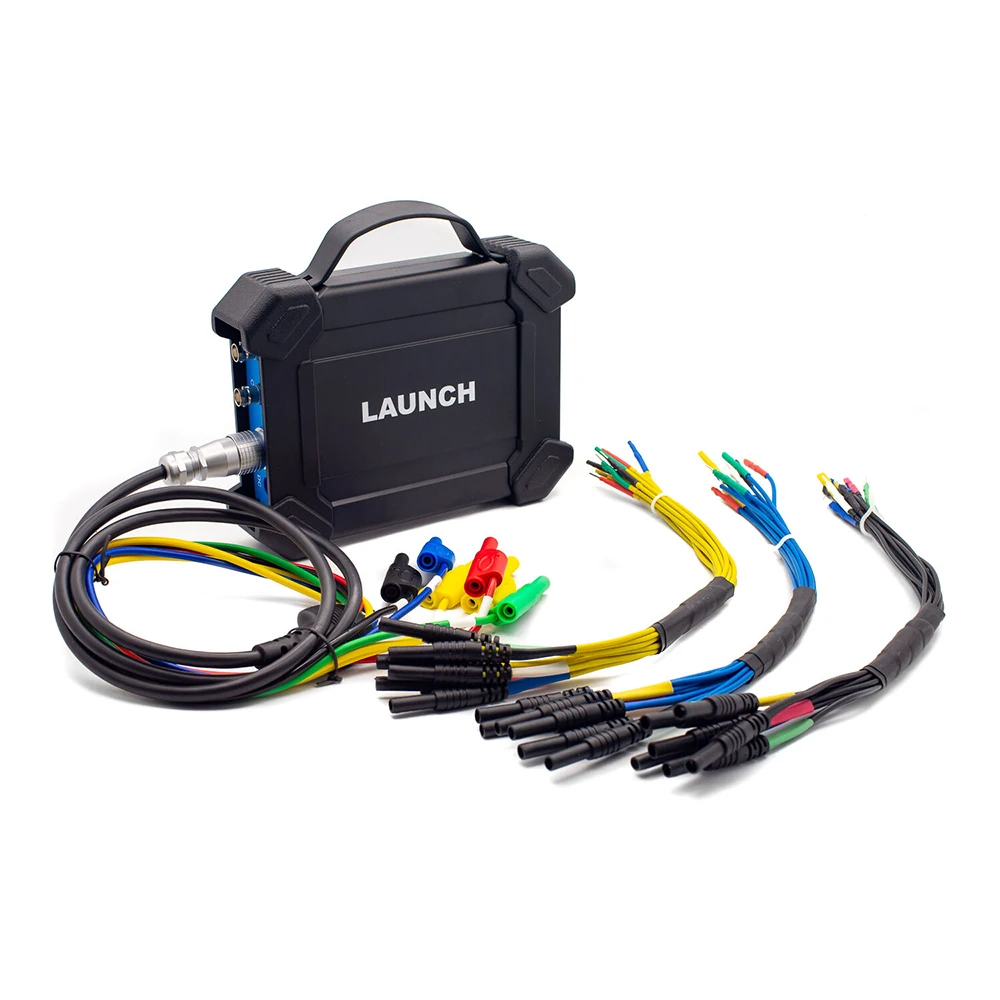

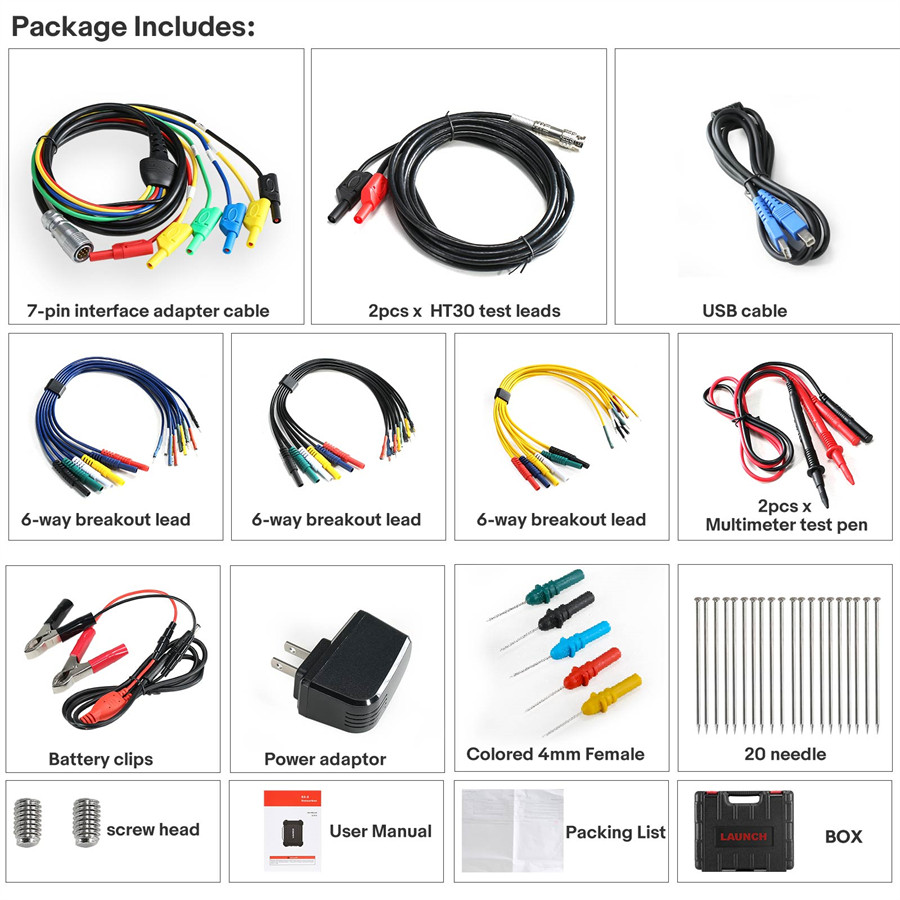

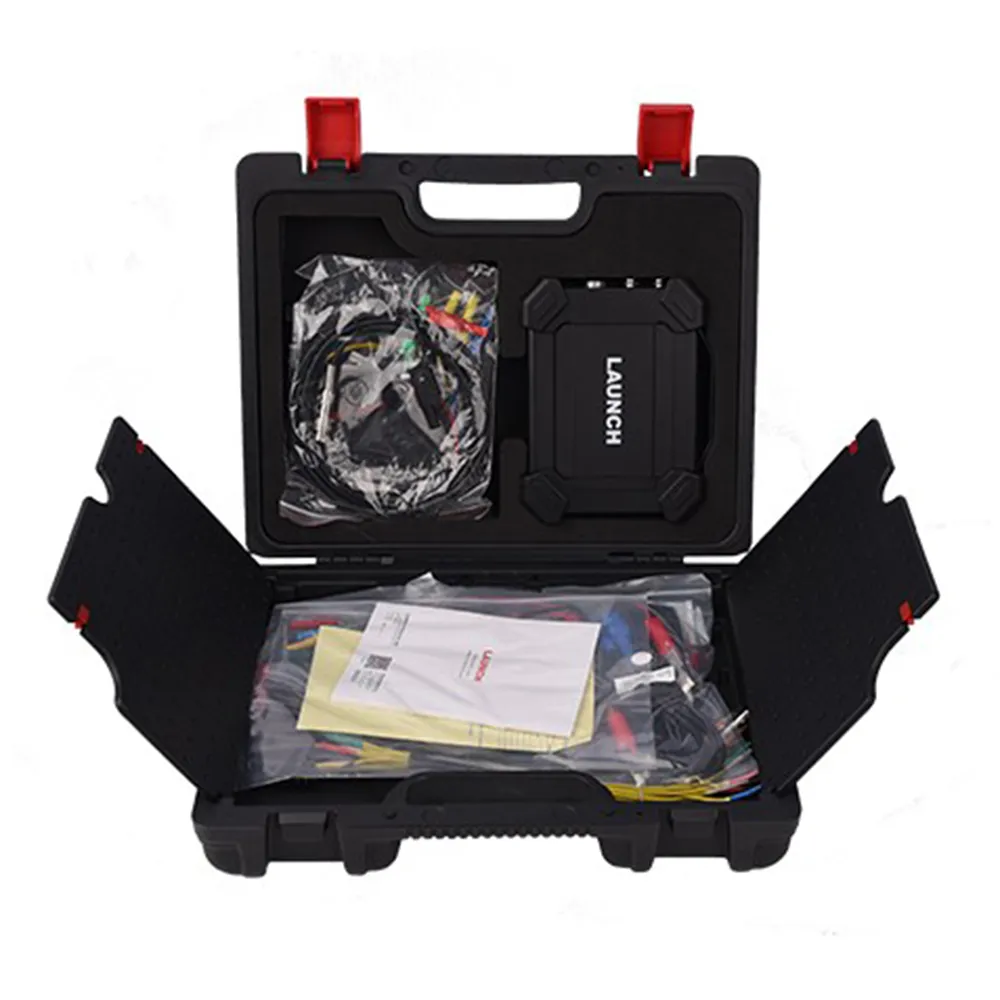

Package List: 1pc x Sensor module
2ps x HT30 test leads
1pc x 7-pin interface adapter cable
1pc x Battery clamps cable
1pc x USB cable
3pcs x 6-way breakout lead
2pcs x Multimeter test pen (black + red)
1pc x Back Probe Pins Suite
1pc x Power adaptor
