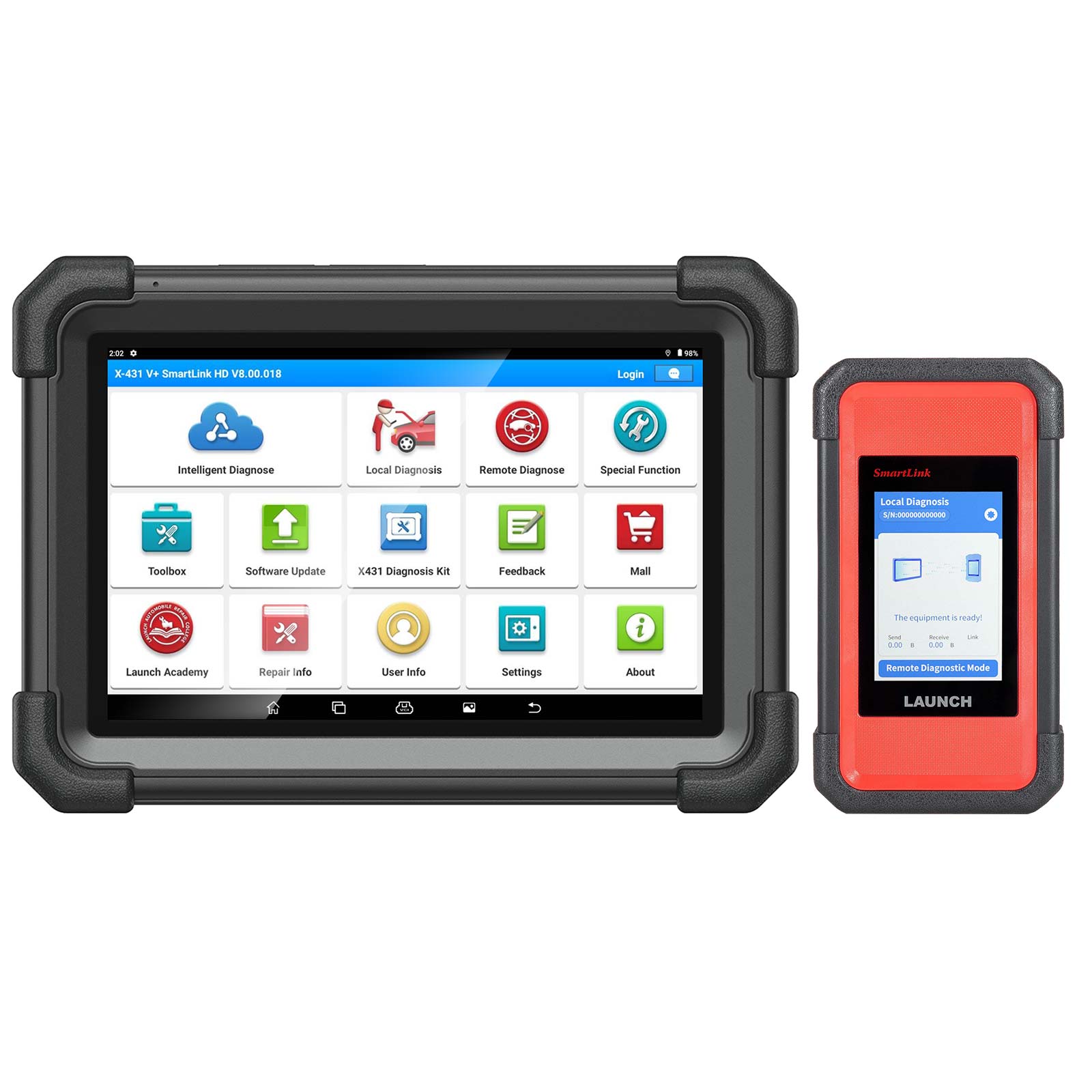

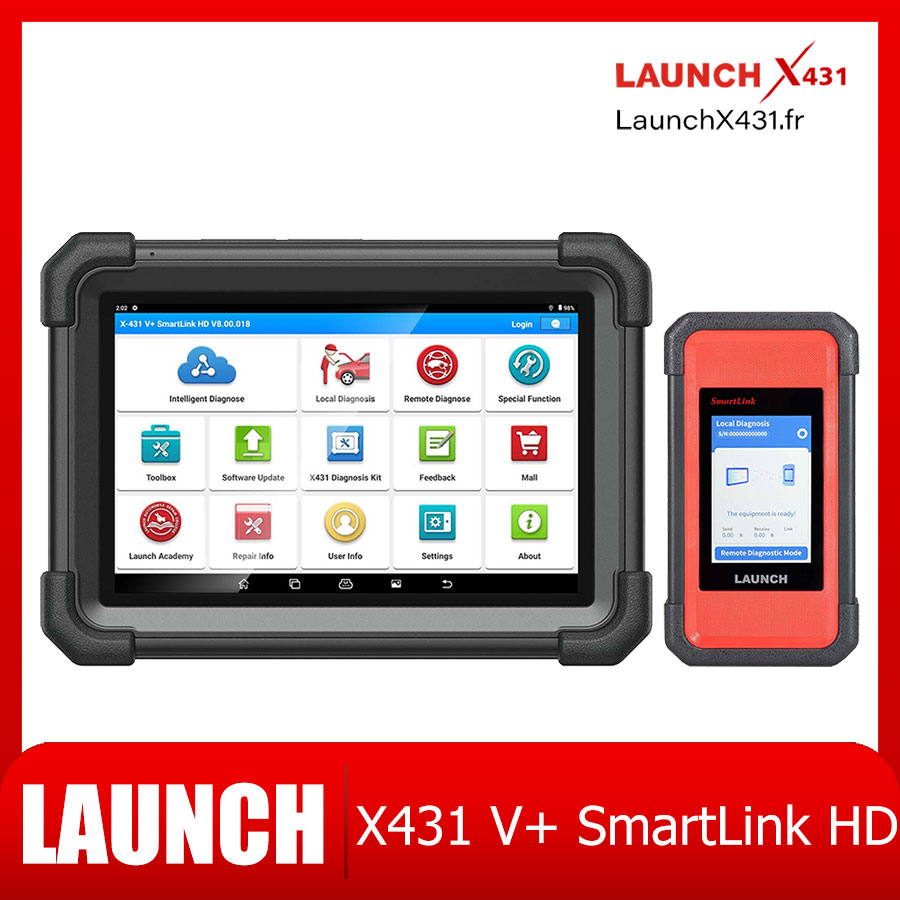

Launch X431 V+ SmartLink HD Truck Diagnostic Scan Tool

X431 V+ SmartLink HD Introduction: 2024 X-431 V+ SmarLink HD is a 10.1-inch smart car diagnostic device developed based on Android 10.0 system. It uses a 1.8Ghz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery to run faster, more stably, and last longer. The standard new SmartLink C 2.0 diagnostic connector makes the diagnostic function more powerful. The product supports full system fault diagnosis, and has functions such as code reading, code clearing, data stream reading, special functions, and action testing. X-431 V+ SmarLink HD covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. It supports software for trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicles. The SmartLink C 2.0 is more powerful and it is configured for passenger and commercial vehicles, mainly supporting commercial vehicles. The transmission speed is faster and the transmission is more stable; the visual operation interface makes it more convenient; it supports commercial vehicles, passenger cars, new energy and other models; it supports super remote diagnosis. How to register and activate Launch X431 V+ SmartLink HD (click here) X431 V+ SmartLink HD Features:  1. Access to the vehicle system faster throughout modular design. 2. Support X-431 Fix database to fix the problems. 3. The software is available to purchase separately on the Mall at any time. 4. Brand new tablet integrated with comprehensive heavy-duty coverage. 5. Empower you to diagnose light, medium & heavy-duty vehicles. 6. Flexible options for USB, Bluetooth and Wi-Fi connection. 7. Basic functions include Read & clear DTC, VIN scan, wireless connection, diagnostic record review, bi-directional test, etc. 8. Support Smartlink Remote Diagnosis. 9. Optional ADAS HD calibration increases more revenue. 10. 21 Service Functions: DPF Regen, Parameter Setting, Cylinder Deactivation Compression, Oil Maintenance Reset, Injector Coding, Speed Limit Adjustment, Idle Speed Adjustment, Fan Calibration, Remote Throttle, Urea Drive(DEF), Deep Clearing of DTCs, Flash Data Conversion, Brake Reset, Transmission Replacement, Nox Sensor Reset, Aftertreatment, Immobilizer, Suspension, Odometer, Language Change, PTO Change (X431 PRO3 LINK HD scan tool supports the DPF Regen feature in a graphical format for almost all commercial vehicles, click here to review) 11. Toolbox for multiple add-on modules, including Oscilloscope, Sensorbox, Battery Tester, Videoscope and Wi-Fi printer, etc. 12.Newly added ECU Flash function, need to buy the ECU Flash software in the Mall /Software Store/Commercial Vehicle. Click here to purchase and enable ECU Flash function. 13.Newly updated the software for Heavy-Duty Vehicles on March 2026.

SOFTWARE	VERSION	UPDATE INFO
FUSO	V10.60	Added functions for systems including EEC - Engine Electronic Control Unit and EBS - Electronic Braking System under the SuperGreat 21M (6R), SuperGreat 21M(6S), and SuperGreat 17MODEL vehicle models; Added actuation test functions for the IMMO - Immobilizer Control Unit system under the Aero Star 19MODEL vehicle model; Optimized software structure.
CUMMINS	V17.20	Added diagnostic support for 2026 CUMMINS engine models.
HD_VOLVO_PENTA	V10.15	Added the functions of the EMS system, which belongs to the D3, D4/D6, D8/D13, D9/D16, Genset, Versatile.
HD_BOSCH	V16.85	Added the Qingling P2428 MD1CS089 system, Foton P2349 MD1CC878 system, Great Wall P2211 MD1CS089 system, SANY P2088 MD1CC878 system, SHANGHAI MD1CC878 system, YUCHAI P1959 MD1CC878 minor version, YUCHAI P2705 Bosch common rail (China VI)/T4 system, and YUCHAI P2586 Bosch common rail (China VI)/T4 system.  Fixed the bugs for YUCHAI P1730 EDC17CV44/54 system, Foton P1734 EDC17C81 system, and SINOTRUK Bosch 868 system.
HD_BENZ	V19.80	Added actuation test and special function for some system.
CQISUZU	V13.00	Added Light Truck China VI (4JZ1) system, Heavy Truck (China VI) Instrument Panel system, Daga H2nd-gender Differential system, and Isuzu (import) vehicle system; Optimized functions including cylinder cut-off test, injector cooling, DPF regeneration, DEF dosing function interface, and optimized software structure.
HD_GLOBALENV	V10.01	Added diagnosis function for GLOBAL ENVIRONMENTAL model engine system.
HD_IVECO/IVECO	V22.10	Newly Added EDC 7 UC31, EDC17 C49, EDC 17 CV41, EDC MD1 CE101 and Diagram  Systems Actuation Tests and Special Functions; Newly Added Basic Functions; Newly Added ESVI AGILE - MTA - Measure Of Clutch Approach Point - New Interface; Fixed Known Bugs.
SHANGCHAI	V12.50	Added support for diagnosing basic and advanced functions across 10 systems.
HD_DEUTZ	V10.50	Added data stream functionality for some versions of the EMR4 BOSCH MD1 system and fixed known special function issues in the EMR4 EDC17CV52 system.

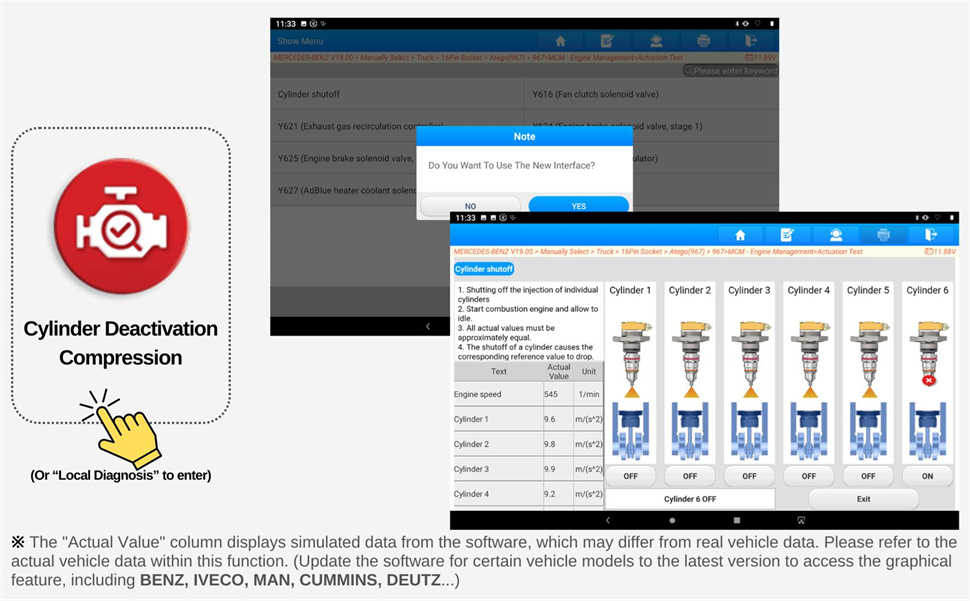

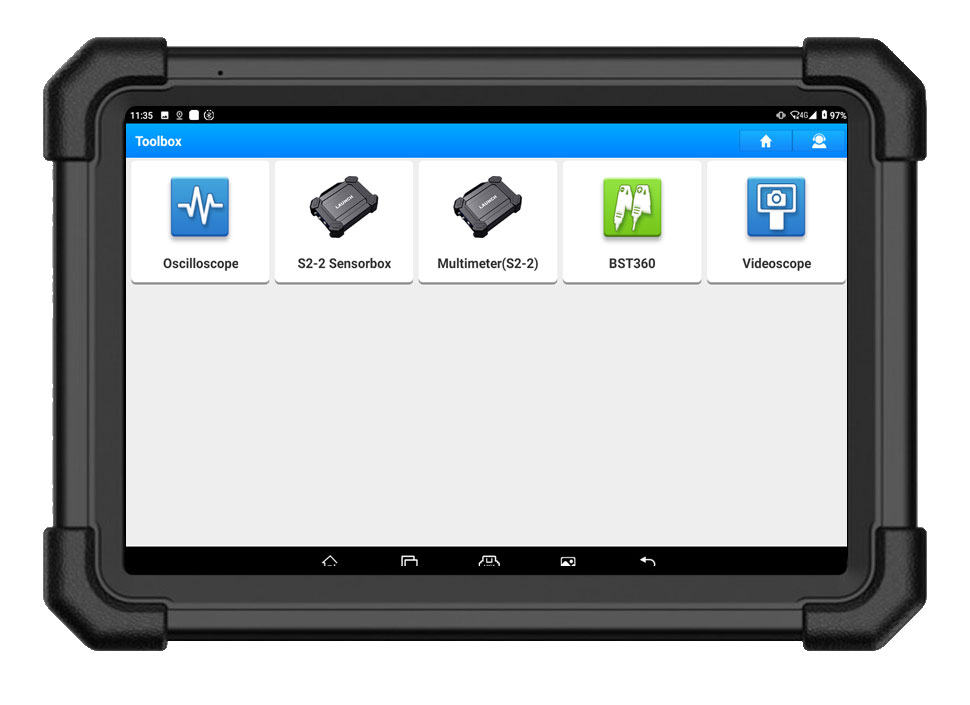

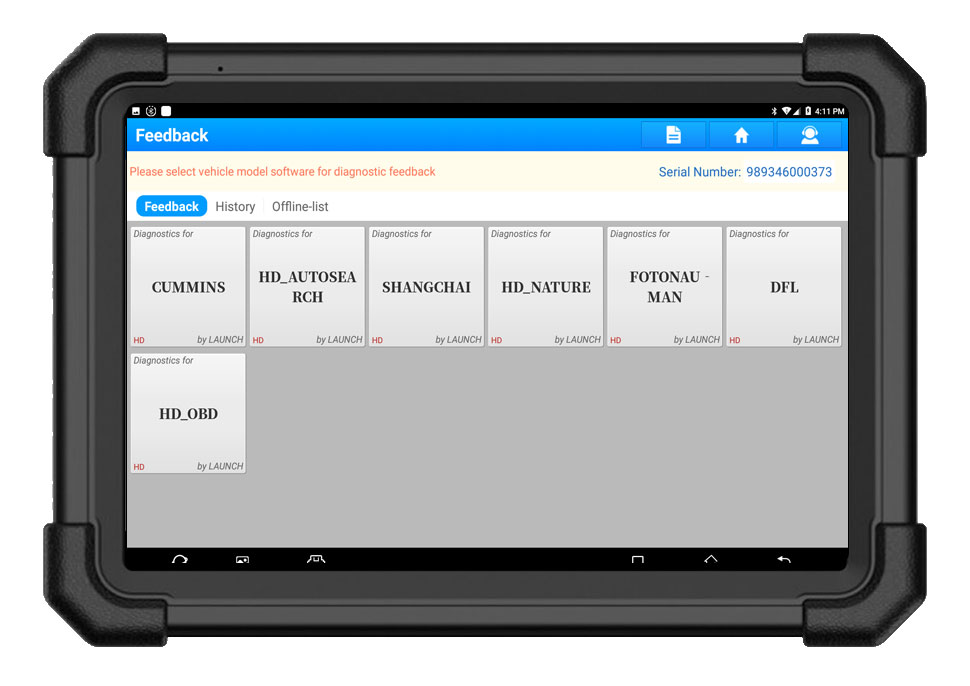

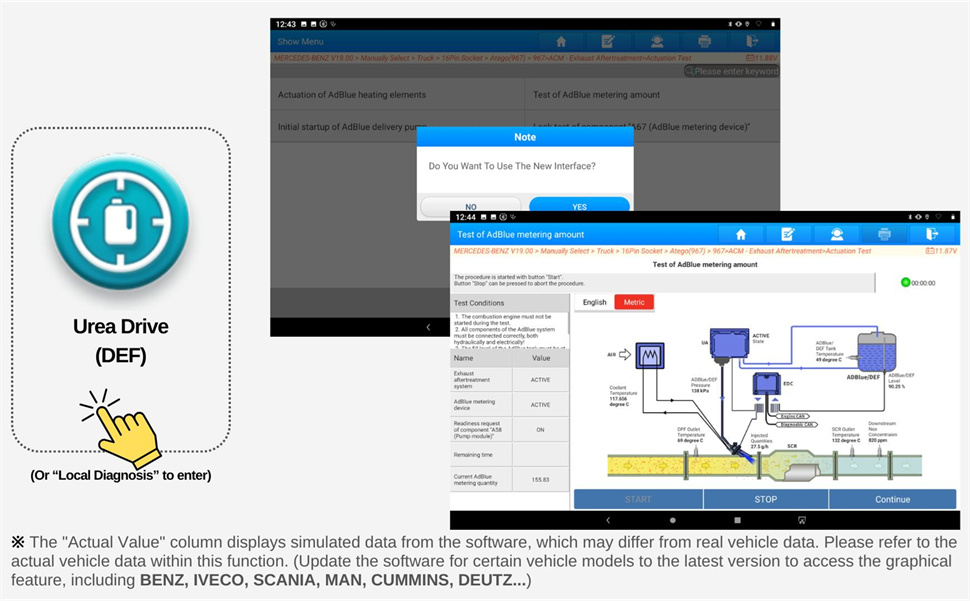

14.Newly added two new visual service functions: Graphical Cylinder Shutoff and Graphical AdBlue Metering Amount (March 20th, 2025) These two features enhance the diagnostic experience and  provide real-time visualizations that make your work easier and more efficient.  X431 V+ SmartLink HD Functions: 1. Automatic diagnosis 2. Local diagnosis 3. Remote diagnosis 4. Special functions 5. ADAS 6. Vehicle coverage 7. Info center 8. Upgrade center 9. Mall 10. Setting 11. Feedback 12. Toolbox and more...

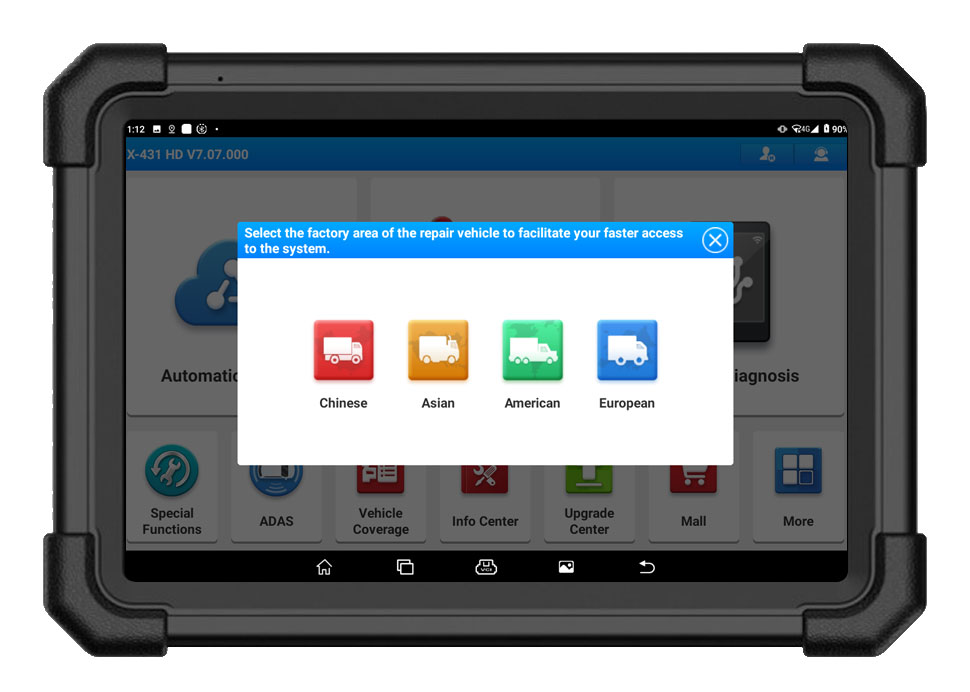

Automatic diagnosis

The modular design reduces redundant scanning steps and makes diagnosis more accurate and efficient.

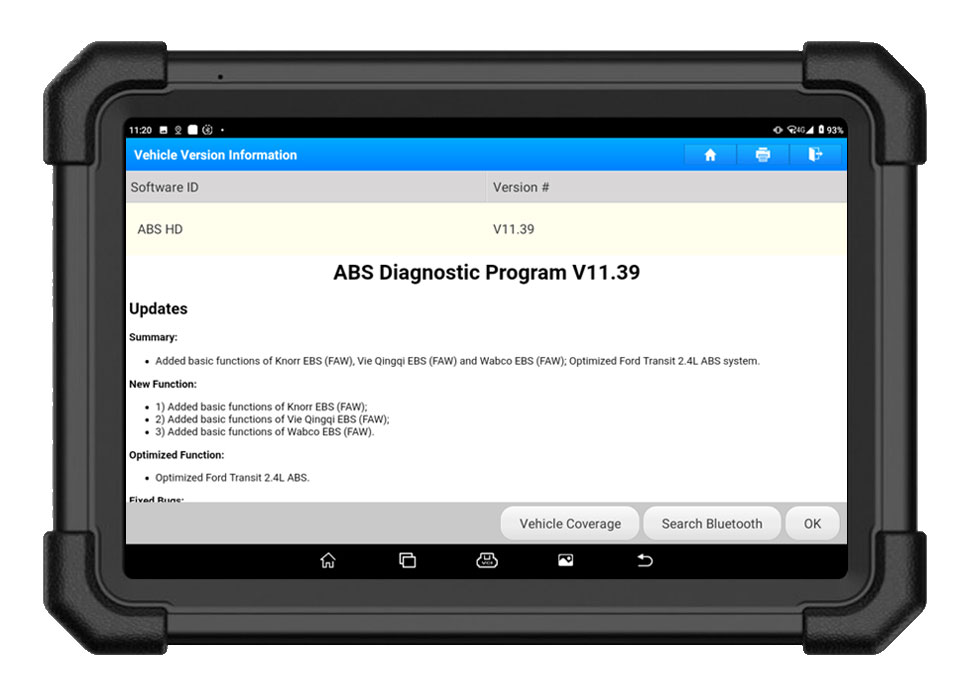

Local Diagnosis The diagnostic software in this function is classified by brand and vehicle type to solve the previous menu confusion problem. Technicians can quickly select the diagnostic software they need through different menus to improve work efficiency.

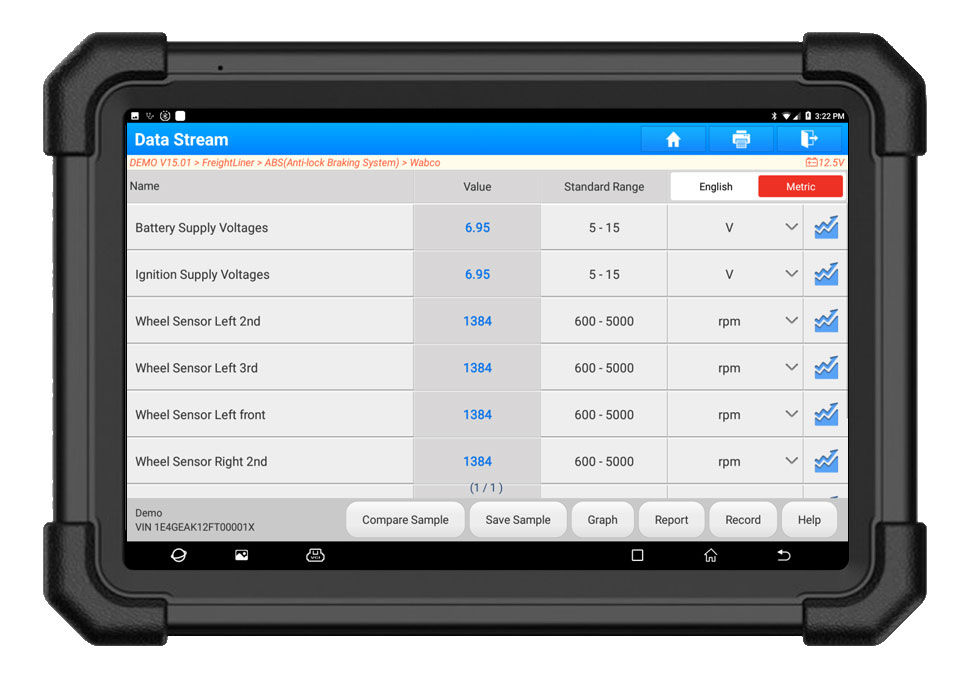

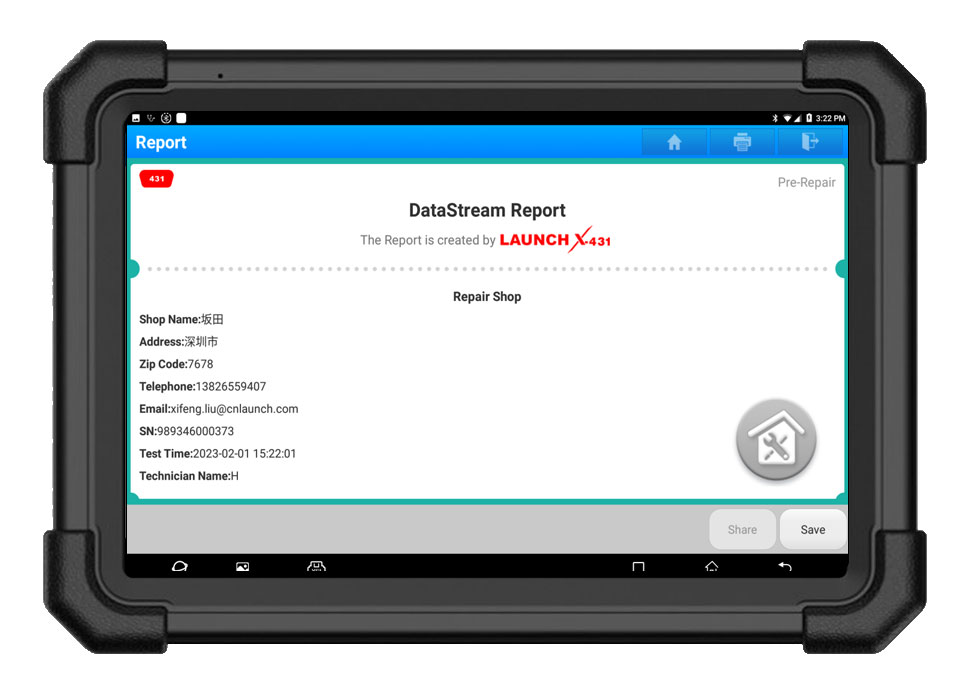

Data Stream Supports diverse data stream display modes and user-defined standard data streams.

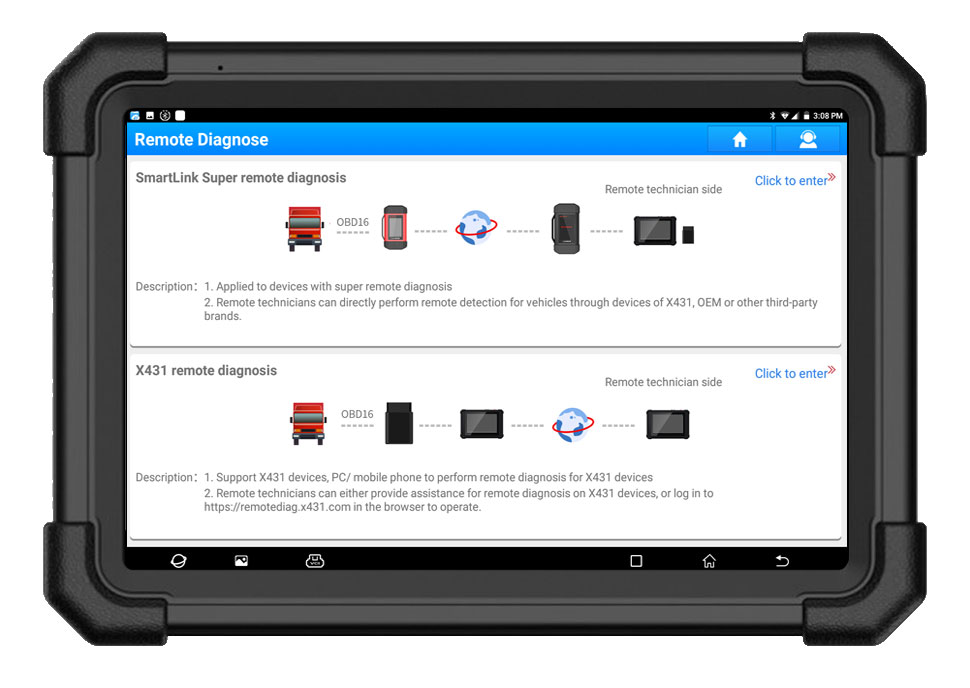

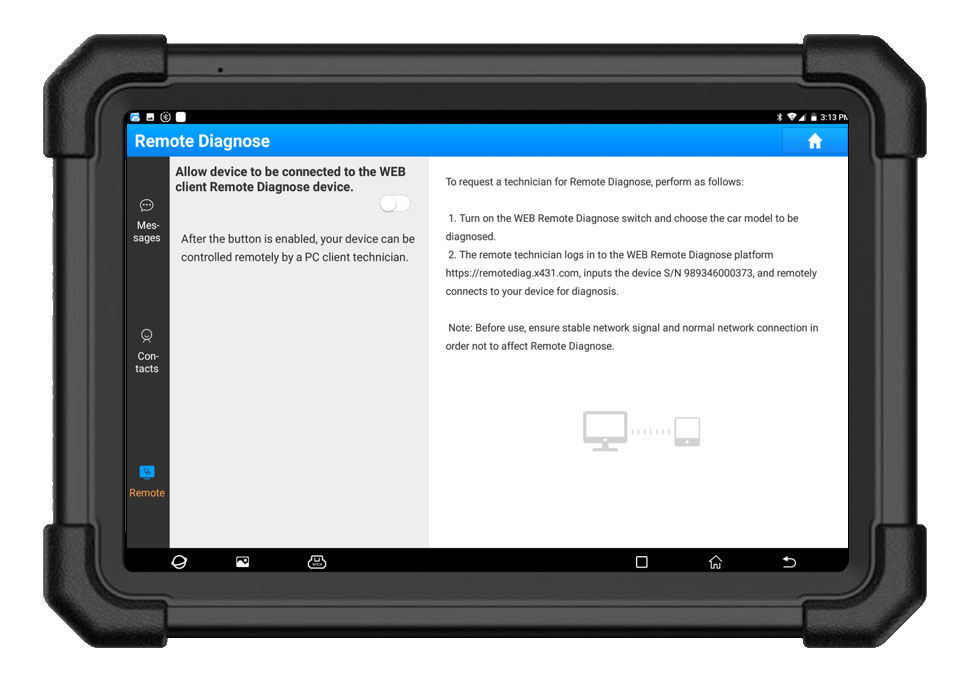

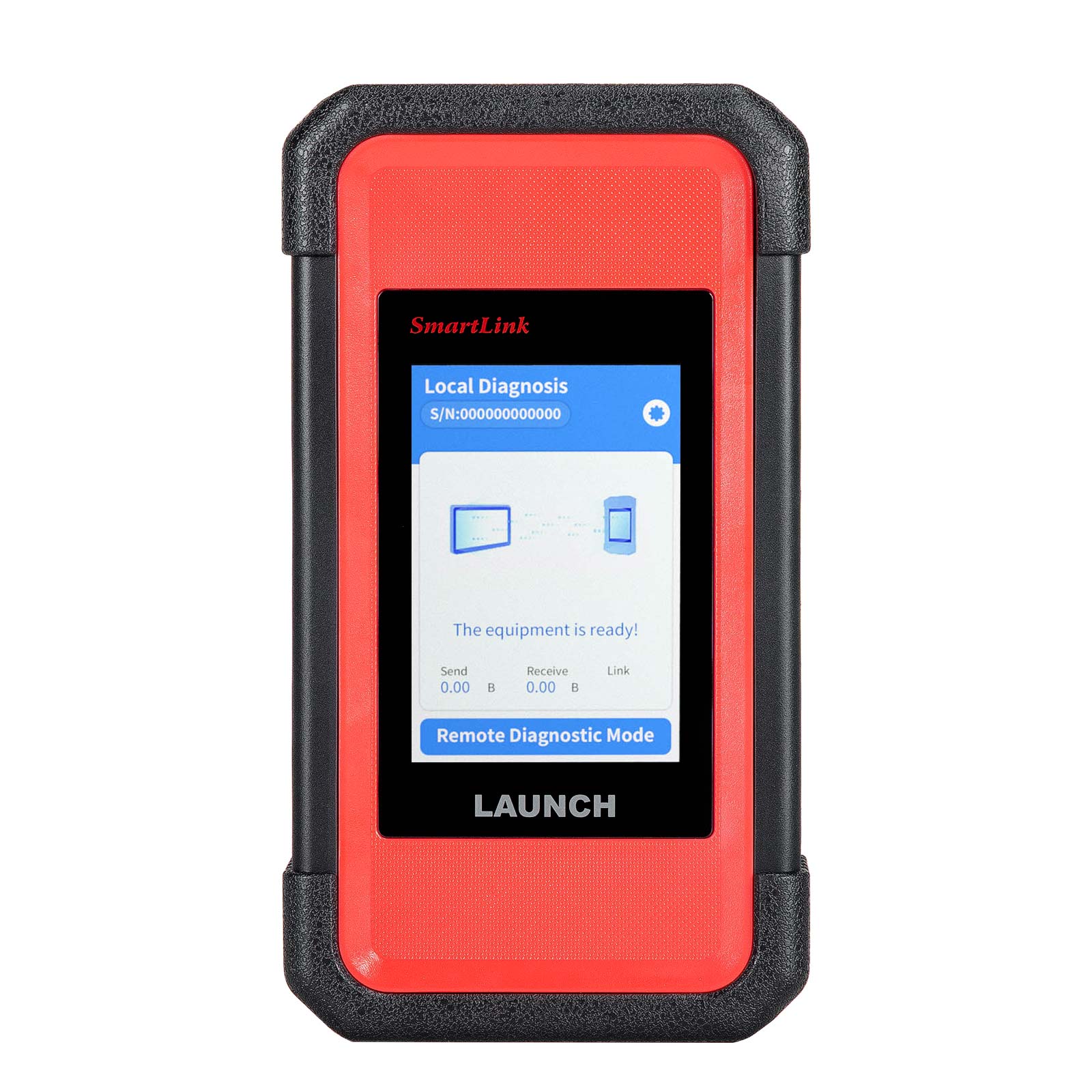

Super remote diagnosis is based on the SmartLink C-side diagnostic box connected to the vehicle. Maintenance technicians can use X431 diagnostic equipment, original equipment or other third-party brand equipment to remotely detect, diagnose and program the vehicle through the LAUNCH server platform. The remote diagnosis function can realize real-time communication between equipment and equipment or equipment and computer to complete vehicle remote diagnosis. It becomes a reality for repair technicians to diagnose vehicles thousands of miles apart.

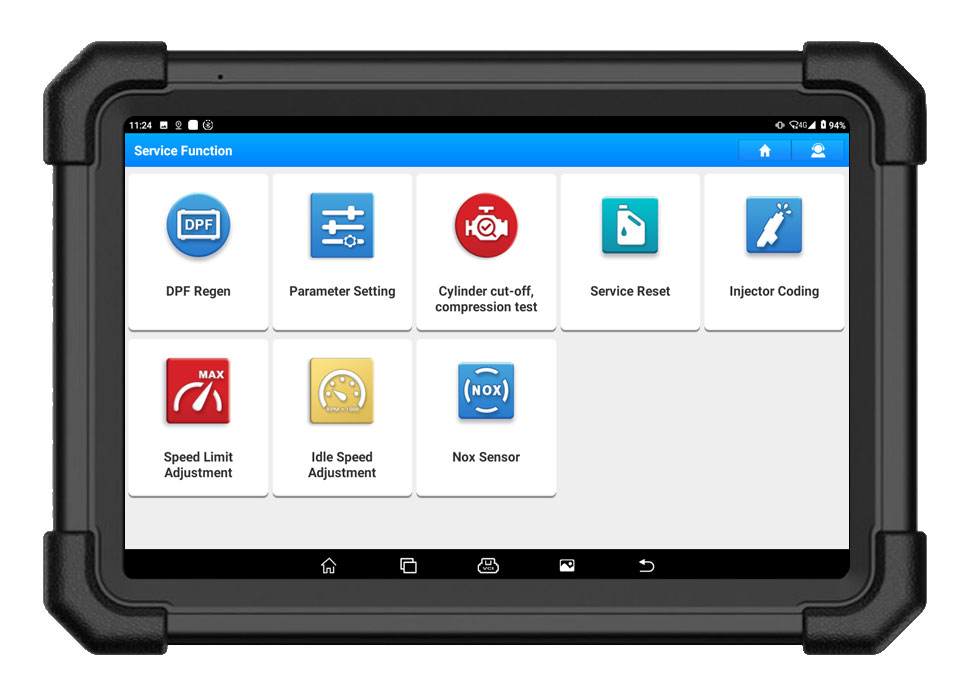

Special Functions It supports 6 special functions commonly used in most car models, such as DPF, parameter setting, cylinder cutoff test, maintenance reset, injector programming, speed limit adjustment, etc., and is continuously updated.

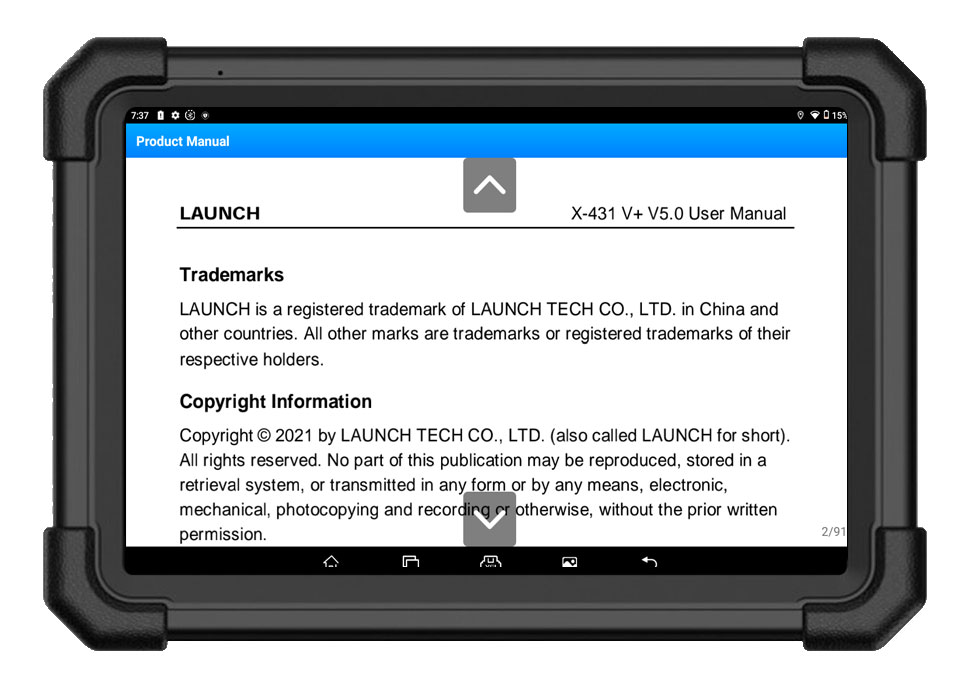

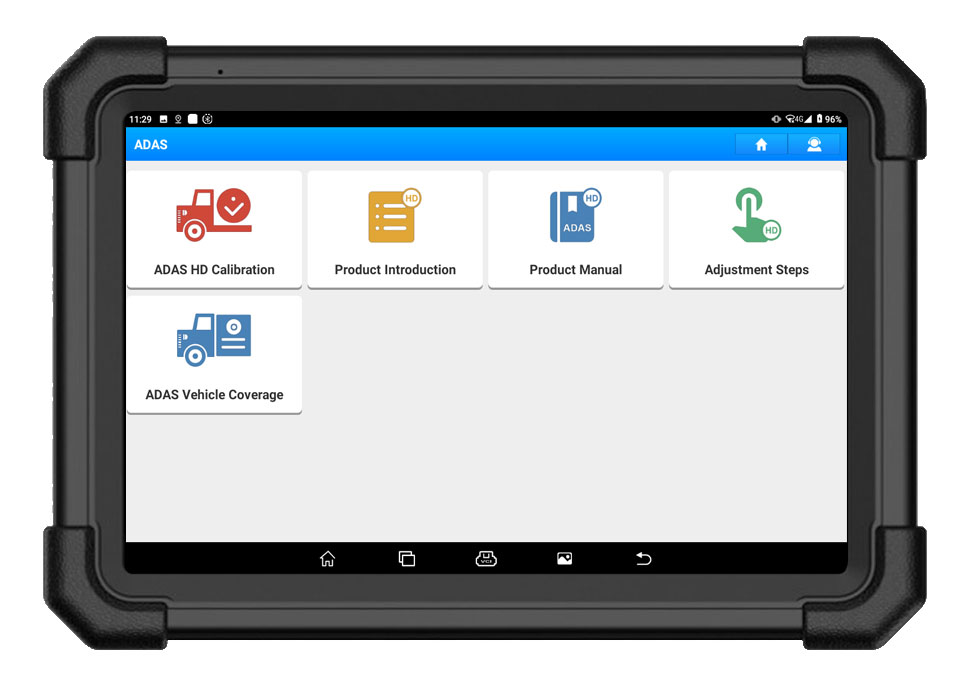

ADAS HD Calibration, Product Introduction, Product Manual, Adjustment Steps, ADAS Vehicle Coverage

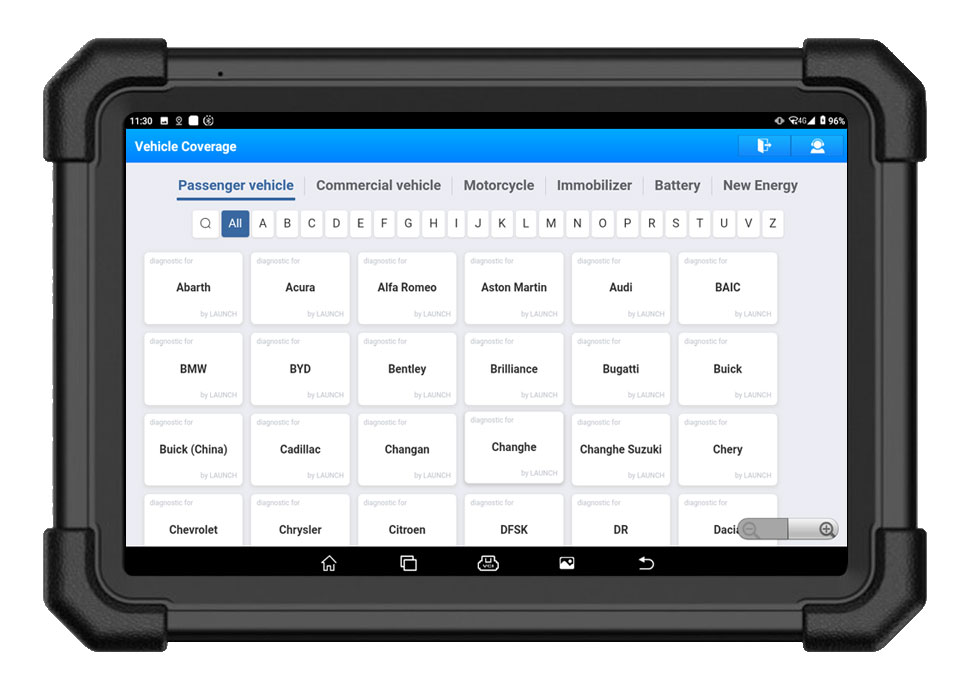

Vehicle Coverage It displays the list of testable models with current configuration. You can quickly find the corresponding software through the initial letter search and text input search functions. View the diagnostic software version, year, and system data at the same time.

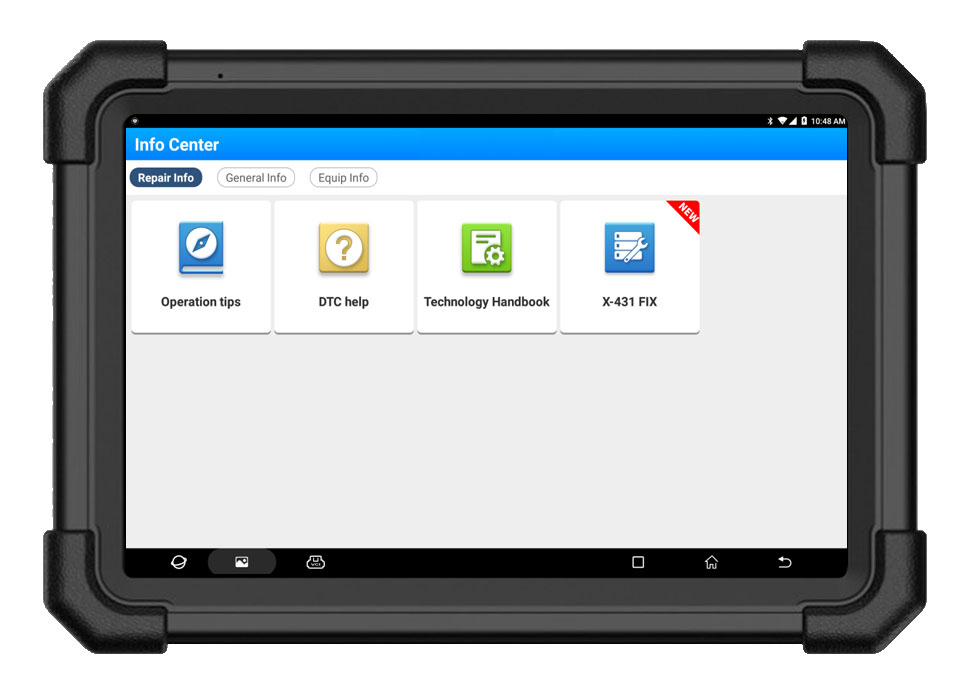

Info Center The info center contains equipment information, overall information, maintenance data and other information.

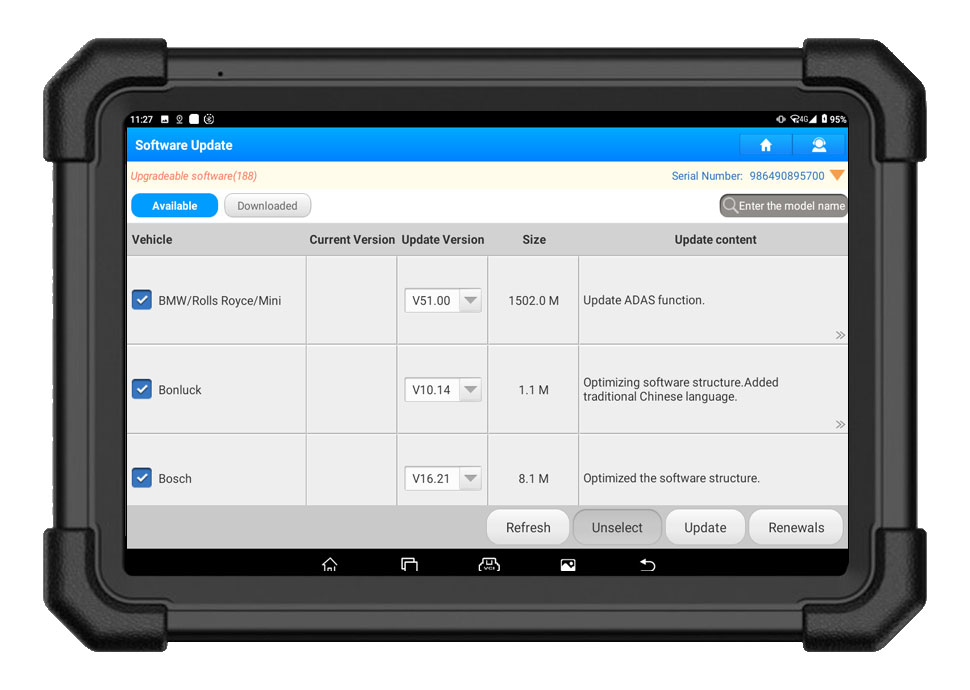

Upgrade Center It supports one-click upgrade of operating system, client, vehicle model software and firmware.

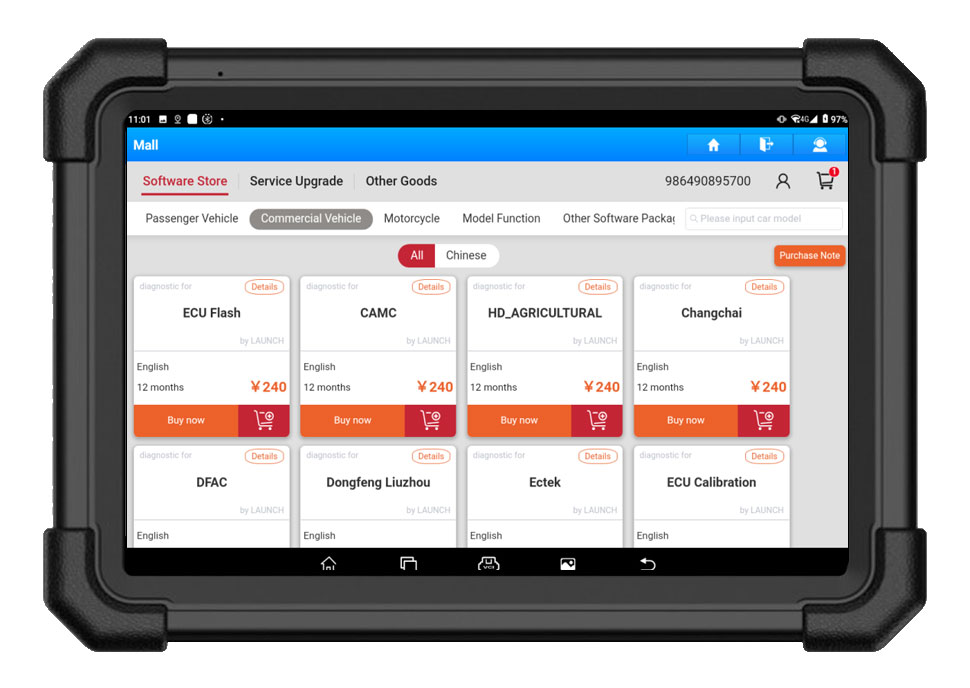

  The mall includes software store, service upgrade, other goods, etc.

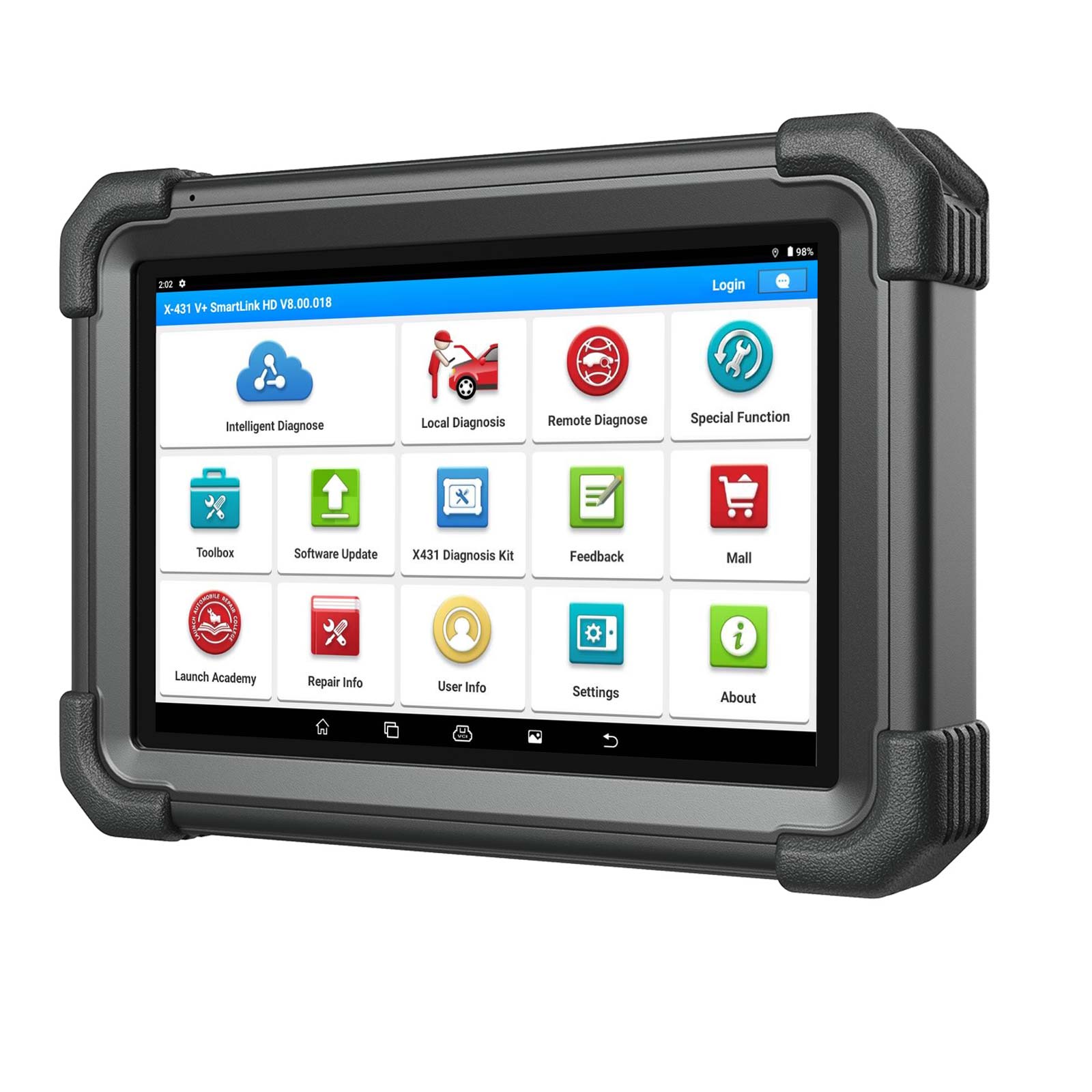

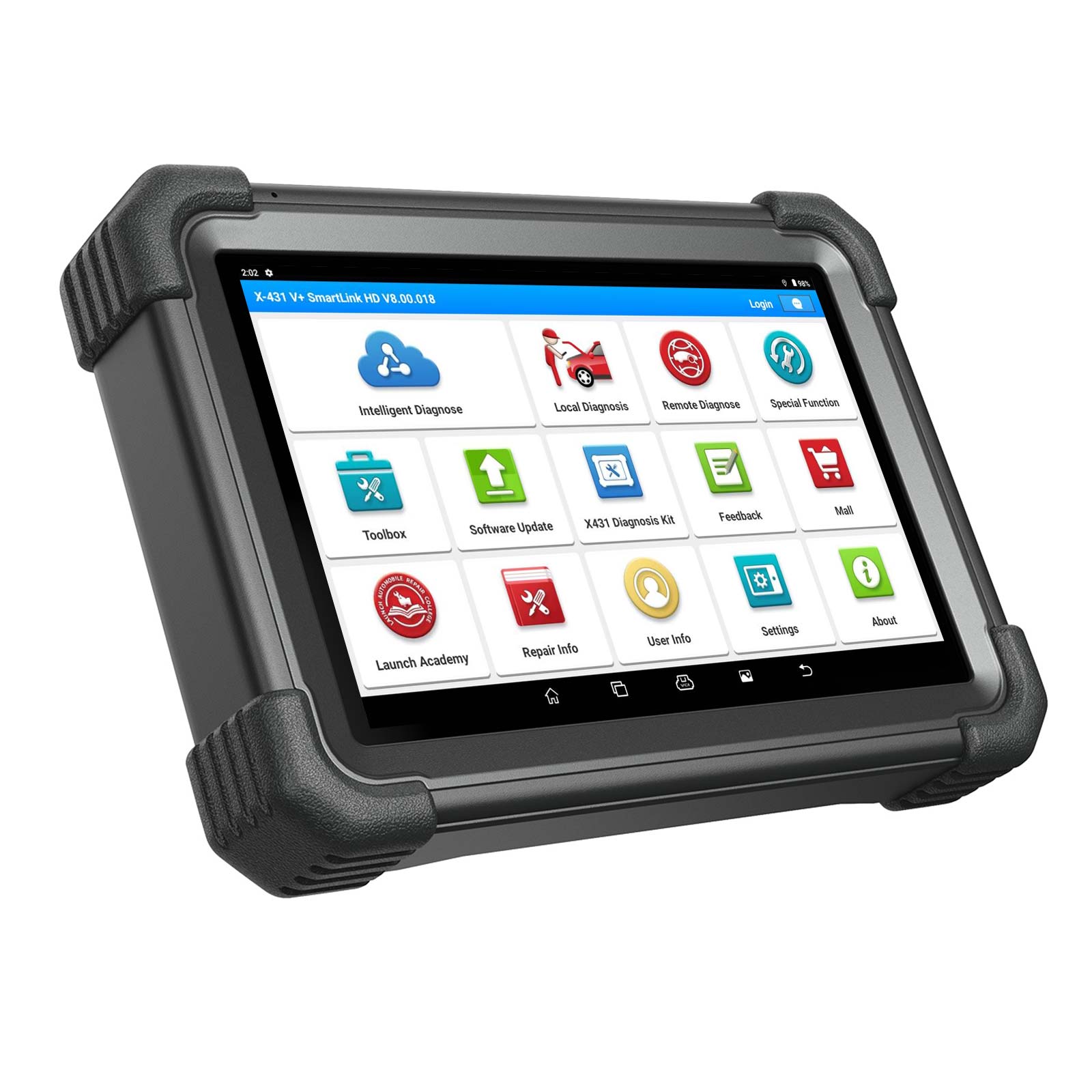

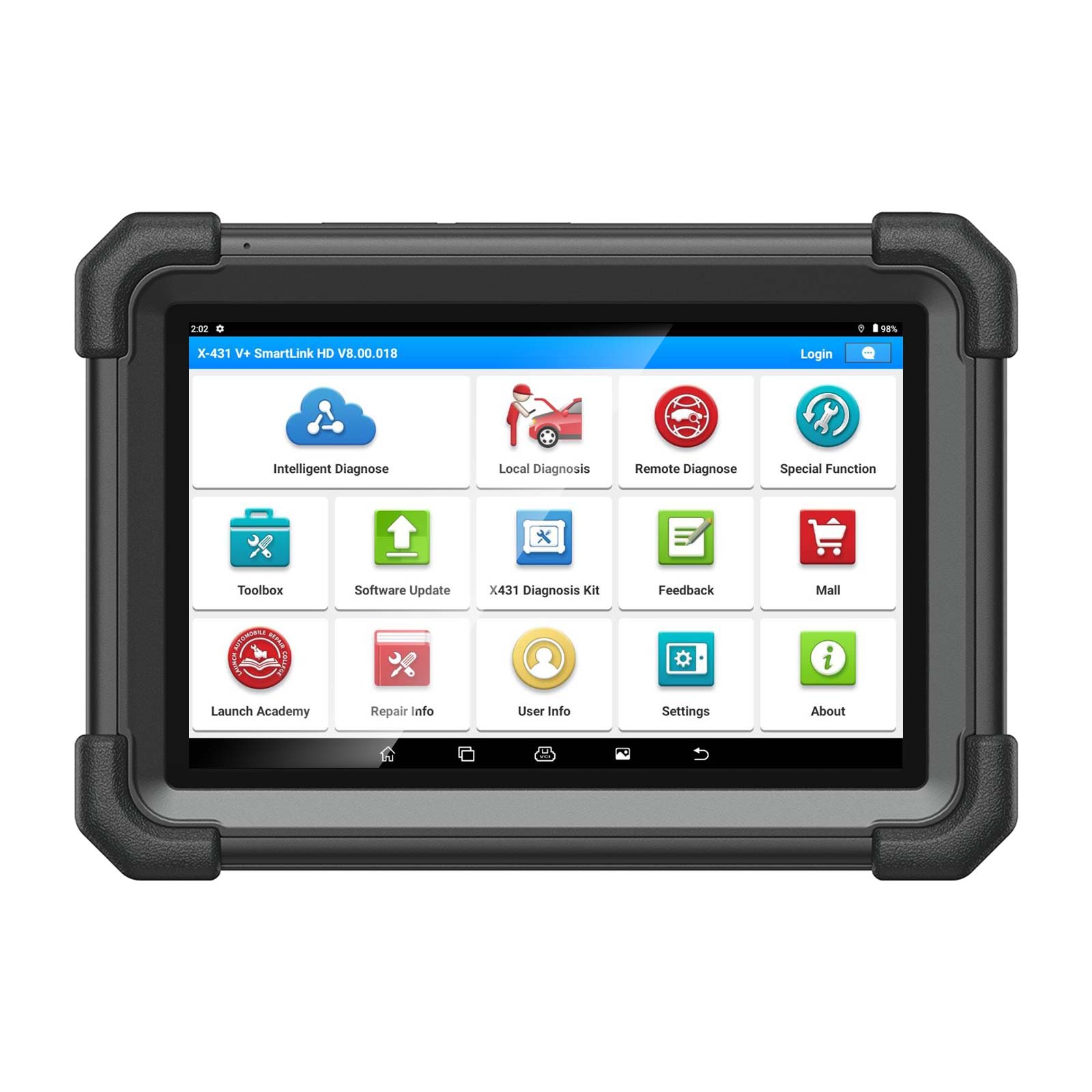

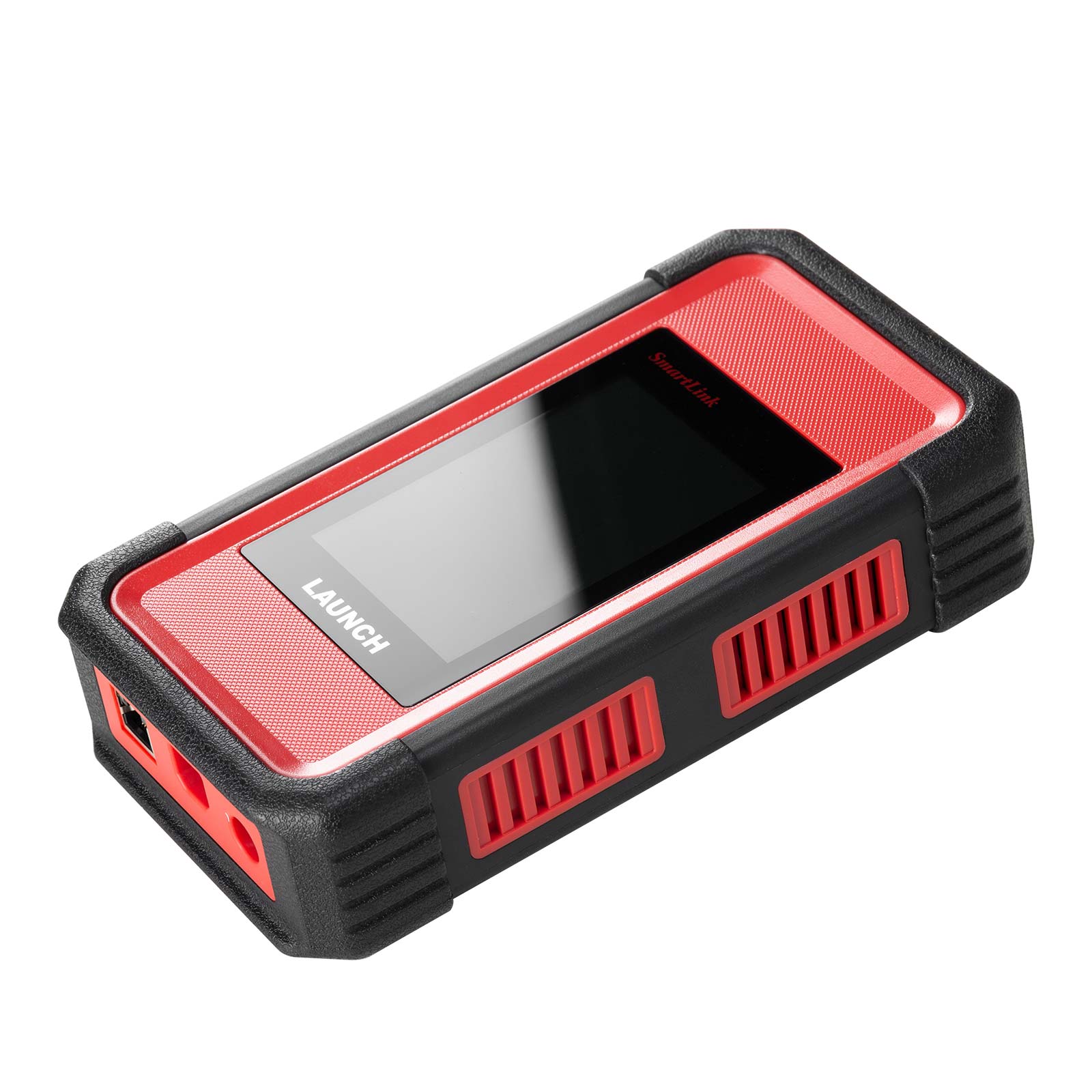

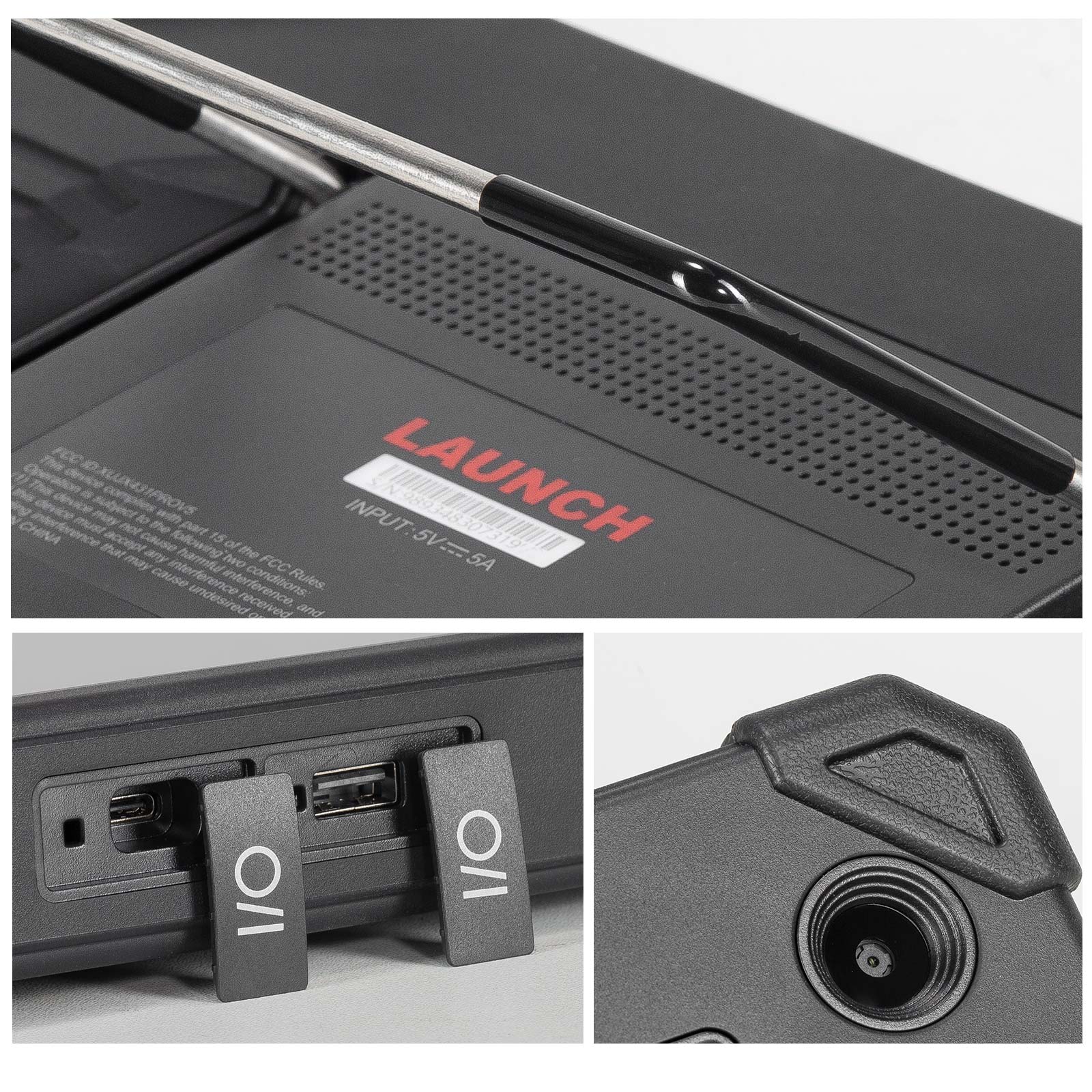

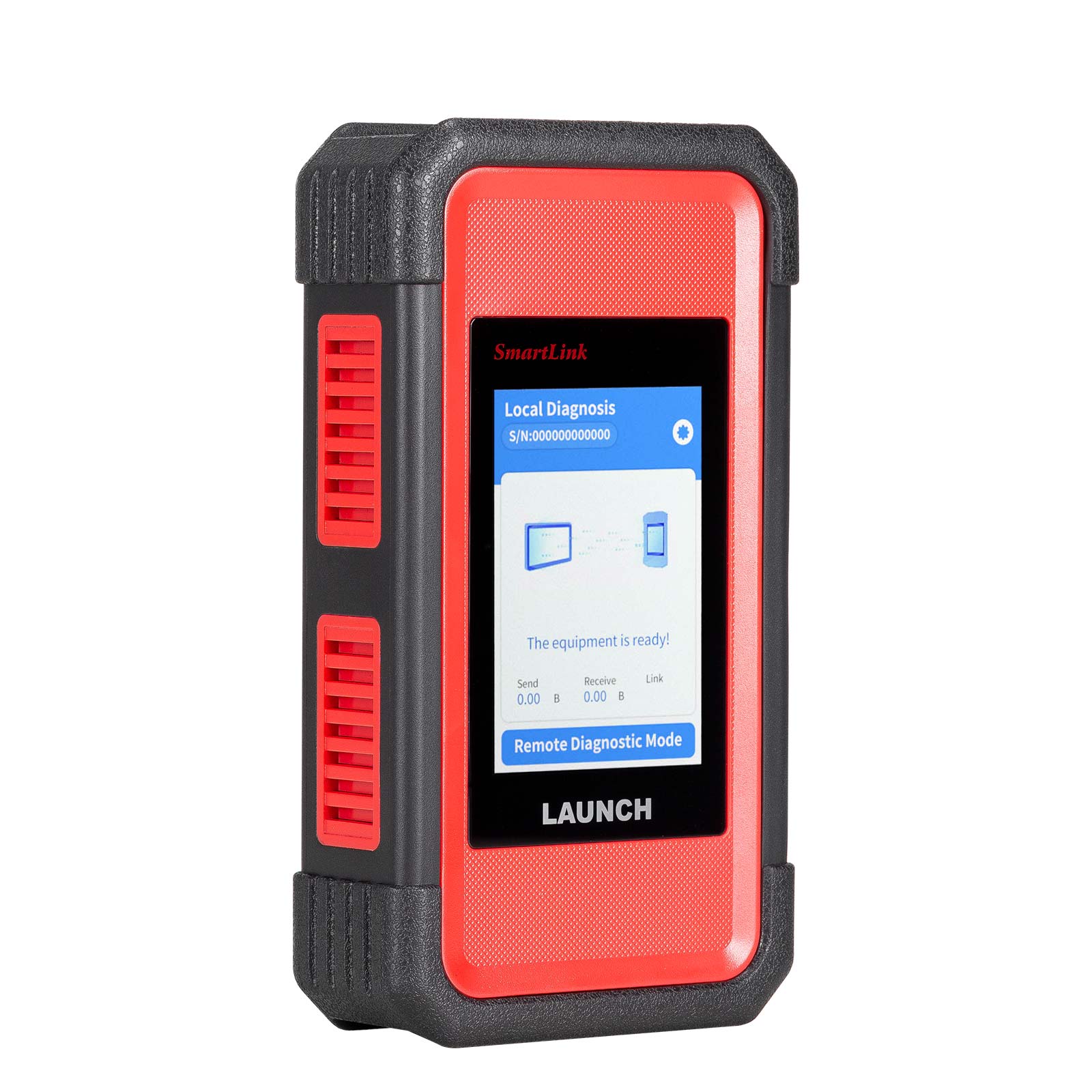

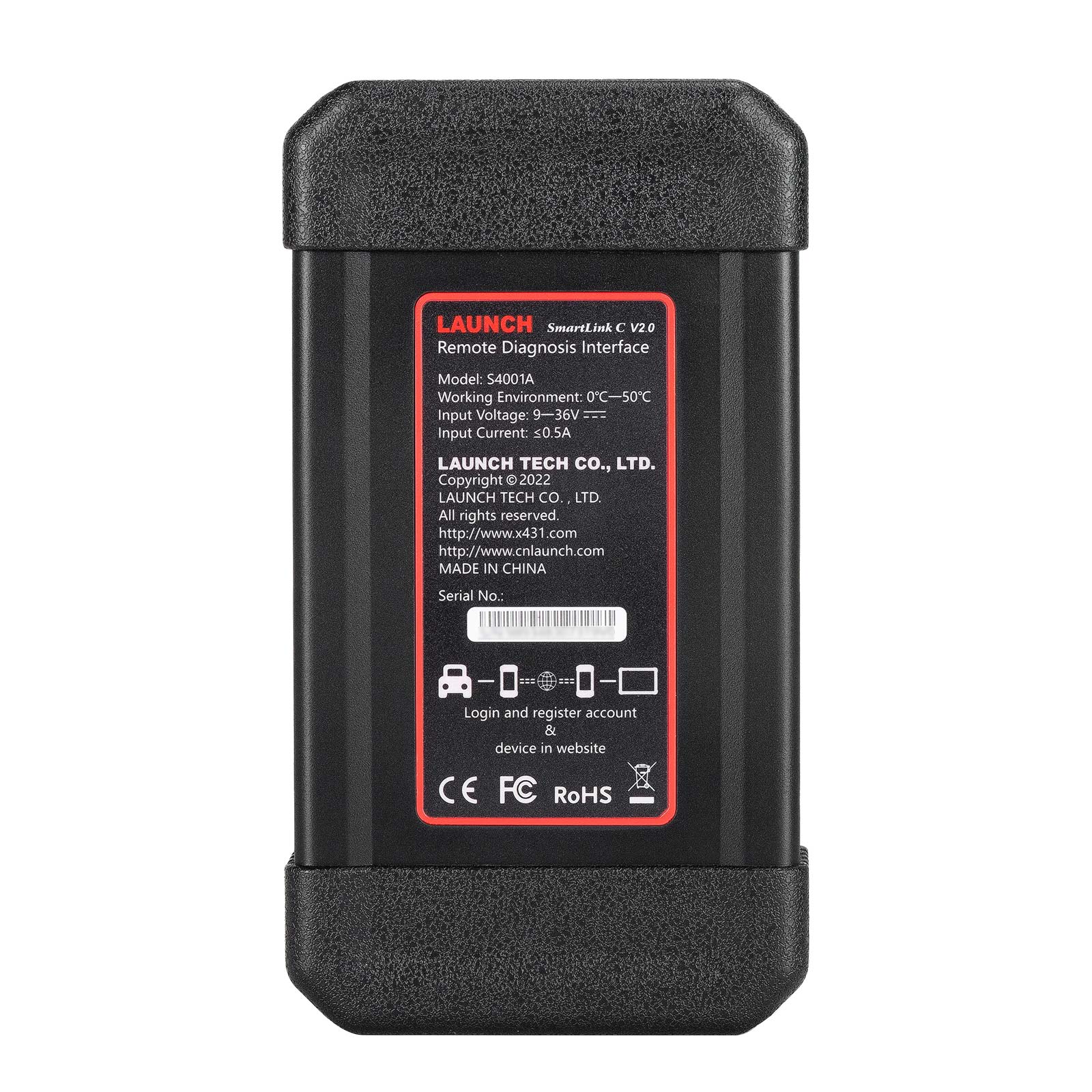

Specification: X-431 V+ Smartlink HD (Tablet) OS: Android 10.0 DISPLAY: 10.1", 1280*800 CPU: 2.0GHz, Quad-Core RAM: 4GB STORAGE: 64GB BATTERY: 47.88Wh(7.6V, 6300mAh) CAMERA: Rear 8MP VCI CONNECTION: 2.4GHz/5GHz DIMENSION: 274*190.5*40.5(mm) INTERFACE: TYPE A*1 & TYPE C*1 SmartLink C V2.0 DISPLAY: 3.5", 320*480 RAM: 256MB STORAGE: 8GB WIFI: 2.4GHz/5GHz WORKING VOLTAGE: 9V DC~36V DC COMMUNICATION: WIFI & Bluetooth & Ethernet DIMENSION: 200*110*47(mm)

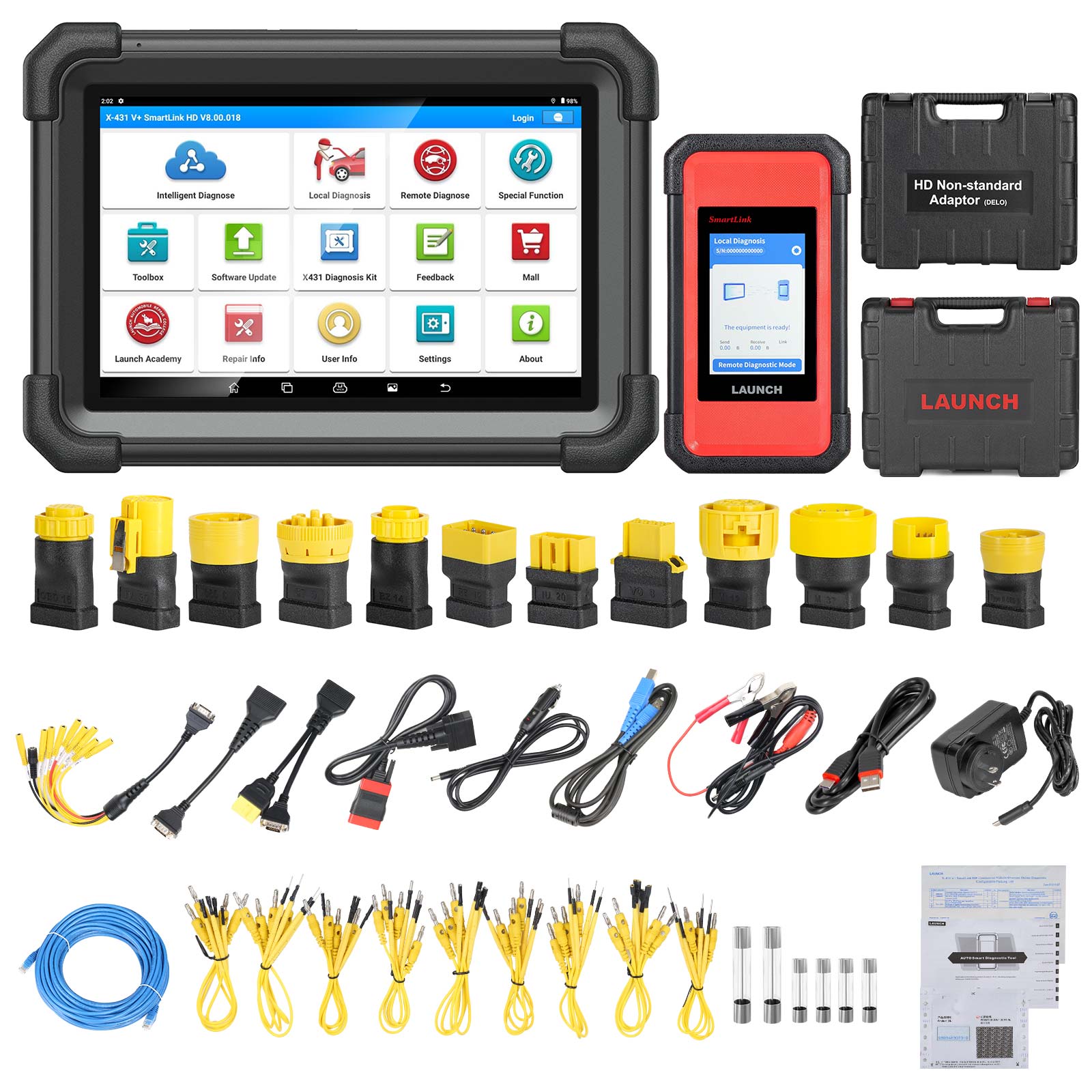

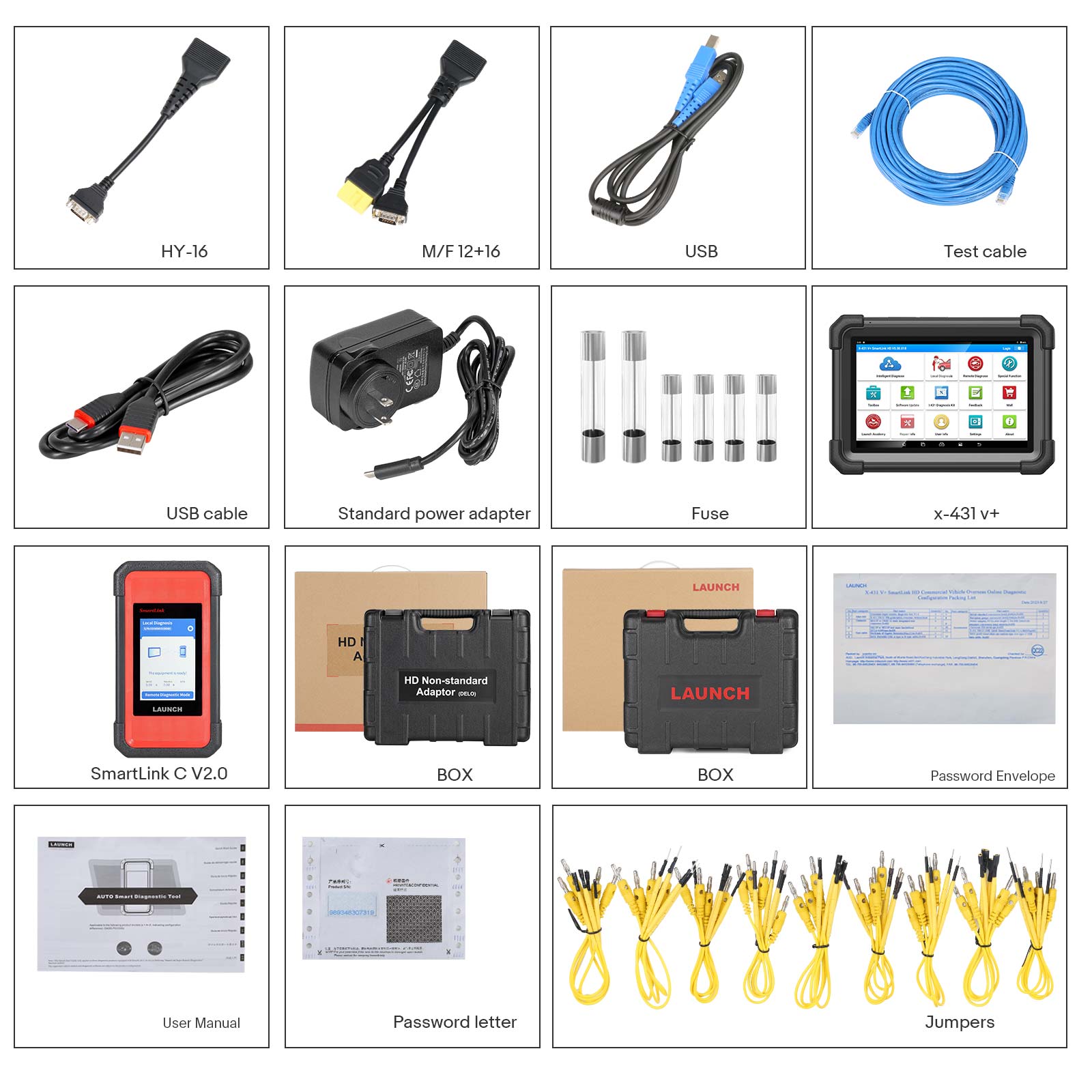

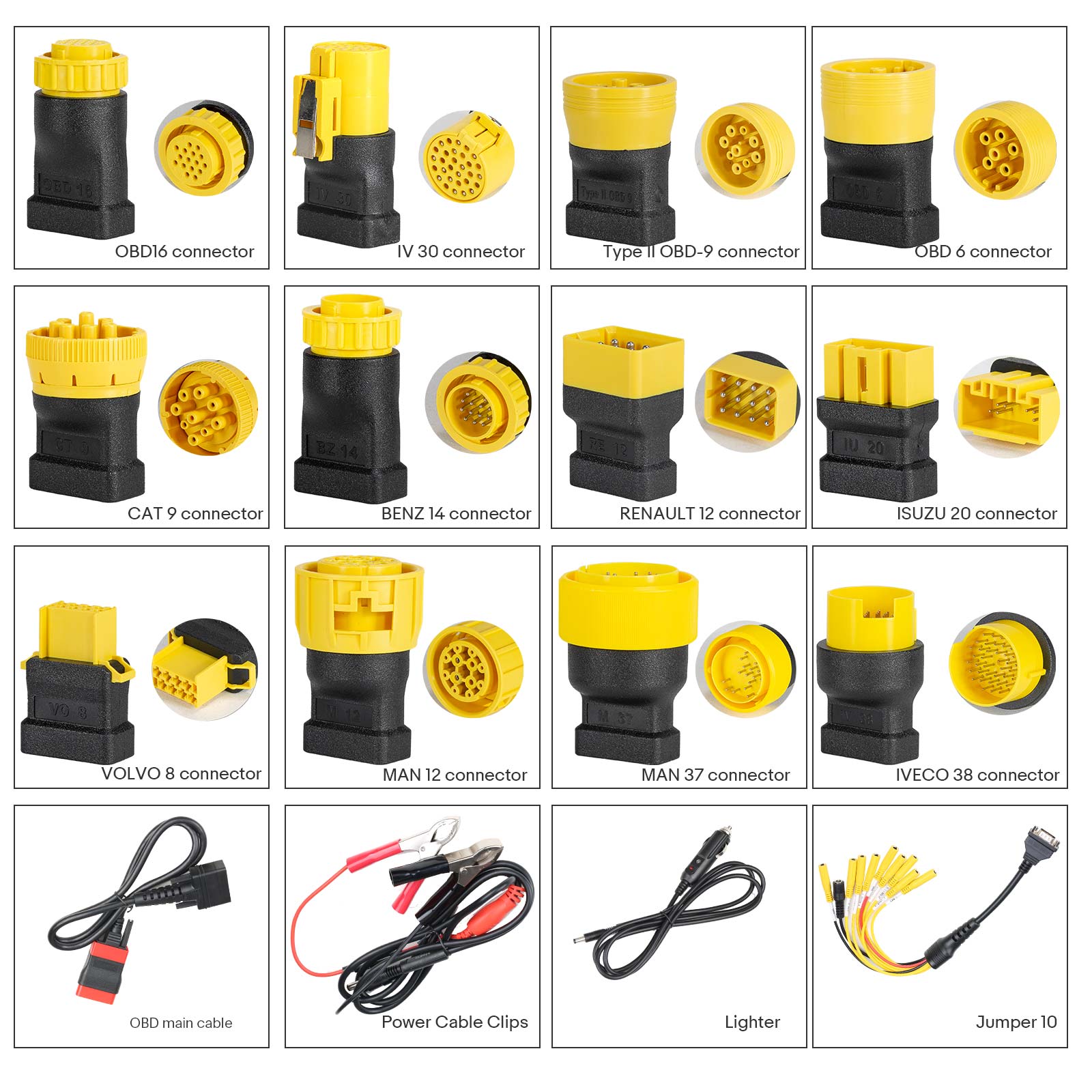

Package List: 1pc x Launch X-431 V+ SmartLink HD tablet 1pc x SmartLink C 2.0 connector 1pc x Type II OBD-9 connector 1pc x IVECO 36 connector 1pc x OBD16 connector 1pc x OBD 6 connector 1pc x CAT 9 connector 1pc x BENZ 14 connector 1pc x RENAULT 12 connector 1pc x VOLVO 8 connector 1pc x MAN 37 connector 1pc x MAN 12 connector 1pc x IVECO 38 connector 1pc x ISUZU 20 connector 1pc x Jumpers 1pc x Test cable 1pc x OBD main cable 1pc x Power cable clips 1pc x Lighter 1pc x Jumper 10 1pc x HY-16 cable 1pc x M/F 12+16 cable 2pcs x USB cables 1pc x Standard power adapter 6pcs x Fuses 2pcs x Boxes 1pc x User manual 1pc x Password letter 9pcs x Jumpers
